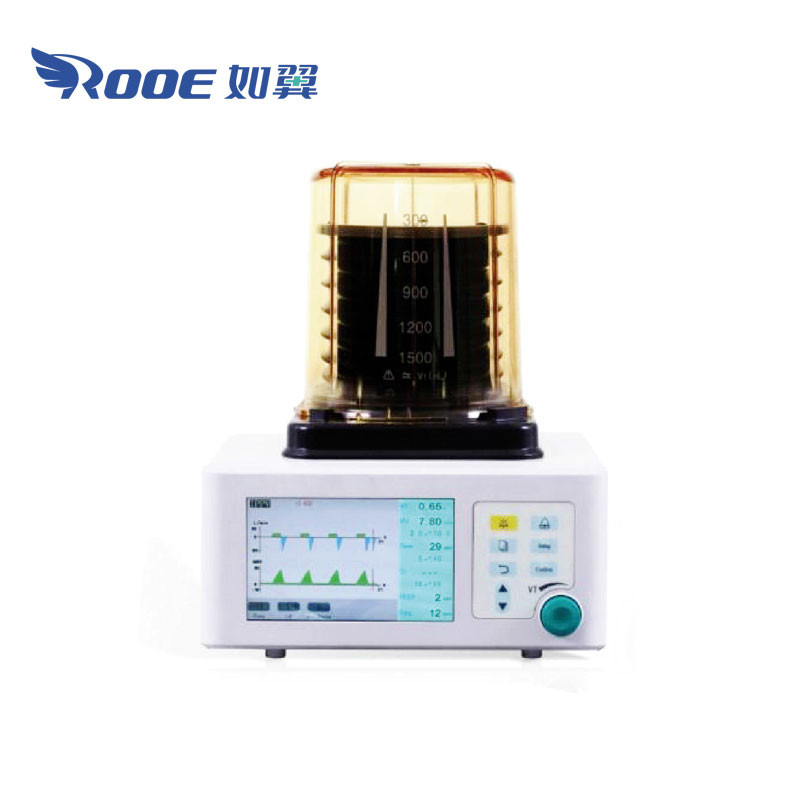

AV-1010 Hospital Lung Ventilator Respiratory SIMV Rate Ventilator Life Support

AV-1010 Hospital Lung Ventilator Respiratory SIMV Rate Ventilator Life Support AV-1010 Hospital Lung Ventilator Respiratory SIMV Rate Ventilator Life Support

It provides the physician with a flexible, simple and easy-to-use ventilator for closed circuit AND semi-close circuit. All the selected patient parameters are clearly visible on large, bright LCD displays. The audio-visual alarm system contains improved alarm features ・・ including alarm mute. The AV-1010 is an advanced, yet easy-to-use anesthesia ventilator.

Quantity:
Share this:
  • Product Description
  • Parameter

Hospital Lung Ventilator Respiratory SIMV Rate Ventilator Life Support Features:

1.Provide A/C ventilation to the patient in the process of operation or in recovery after the operation.

2.Applied for adult and pediatric and animal

3.Microprocessor controlled ,integrated anesthetic ventilation system

4.7 inch TFT display screen

5.Good air tightness, high reliability


Technique Specifications



Dimensions:

43cm*38cm*49cm

Weight:

10kg

Working type:

Electronically controlled, pneumatic driven

Patient type:

Pediatric, Adult

Ventilation mode:

IPPV, SIMV, MANUAL(BAG)

Tidal volume:

40-1500ml

l:E ratio:

4:1-1:8

Frequency:

Adjustment range:

1-100bpm

Under IPPV and Manual mode:

4~65bpm

Under SIMV:

1-40bpm

Monitoring:

VT, MV, BPM, Paw, FiO2, PEEP, Respiratory Frequency, l:E ratio, Ppeak

Waveform:

Pressure- time, Flow- time

Power:

AC 220V±10%, 50HZ±2%, built-in battery > 2hrs(rechargeable) 12V

Inspiratory time (Tl) (at SIMV)

Adjustment range:0.2 s 6.0 s (the limit of l:E ratio< 4)

Pressure trigger:

20 cmH20 0 cmH20

Pressure limit:

Patient airway pressure range:

-2KPa 10KPa

Airway pressure monitoring range:

010KPa

Safety valve pressure limit:

6Kpa

Alarm:

High(low) pressure alarm, High(Low) MV alarm, AC power lost alarm

Accessories:

Oxygen sensor

Silicon tubes (reusable)

Tidal volume sampling sensor

Oxygen high pressure hose





×
