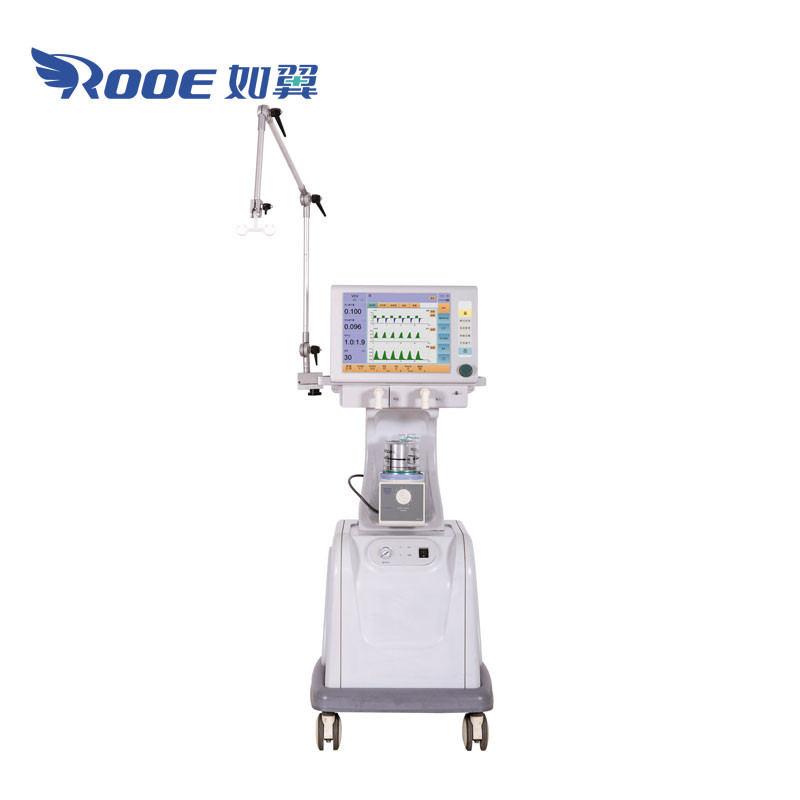

The instrument is used in a variety of medical institutions for mechanical or assisted ventilation for patients with respiratory failure or require mechanical ventilation, and monitoring and displaying ventilation parameters, building batteries and accessories, air compressors, detachable 15 inch big touch screen The simplest interface guides accurate control and convenient operation.
ICU Clinical Oxygen Ventilator Machine Breathing Respiratory Features：
1. Removable 15 inch large touch screen
2. Day and night mode change
3. Applied for adult,pediatric and infant
4. Professional separated non-invasive module, support leakage compensation
5. Automatic alarm setting adjusting
6. Pre-set ideal weight
7. Assistant Nebulization treatment/02 remedy
8. Multi-mode ventilation function (VCV, V-SIMV, P・SIMV,V・SIMV/PSV,PSV, PCV, CPAP, APNEA, BIPAP, APRV,PA・VC,SIGH)
9. The simplest interface boots a precise control and convenient operation
10. Advanced air compressor for air input
11. Self testing and calibration
12. Trends record and event log
13. Customerized monitoring windows
14. Auto-wash for exhaust valve
| Technique Specifications | |
| Physicall Specifications | |
| Dimensions： | 45"55"140cm |
| Weight： | 65kg |
| Casters： | Front wheels with lock |
| Screen： | Removeable，hang-up type |
| Display | Colour LCD，15inch with day/night mode |
| Display graphics | Waveforms of P-T,F-T,V-T |
| Loops | P-T,F-T,V-T |
| Screen | Touch screen |
| Air Compressor Specifications | |
| Power | AC 220V±10%, 50Hz2% |
| Output pressure | 0.4+0.1MPa |
| Noise | ≤50dB |
| Ventilator Specifications | |
| Modes of ventilation | |
| VCV | Volume control ventilation |
| APNEA(A/C) | Assist Control |
| V-SIMV | Volume-SIMV |
| P-SIMV | Pressure-SIMV |
| V-SIMV/PSV | Volume-SIMV/Pressure Support Ventilation |
| MANUAL | Manual |
| CPAP | Continuous Positive Airway Pressure |
| PA-VC | Pressure Auto-Volume control |
| PCV | pressure Control Ventilation |
| PSV | Pressure Support Ventilation |
| SIGH | SIGH |
| O2 Remedy | Oxygen Remedy |
| Ventilator Parameter | |
| Tidal Volume range | 10-2000ml |
| Pressure range | 5-80 CIT1H2O |
| Rispriation Rate Range | 1-150 bpm (1-40 bpm under SI MV) |
| Insp Time | 0-12s |
| Oxygen concentration | 21%-100% |
| Ptrigger Range | -20-0cmH2O |
| Apnea Ti Range | 0-6s |
| PEEP | |
| Type | Integrated, Electronic control |
| Range | 0-40cmH20 |
| Monitor | |
| Vti, Vte, l:E, Freq, PEEP, Pplat, Ppeak, Pmean, | |
| MV, Resistance, Exp R, Compliance, Dynamic C, | |
| FiO2, Ptri depth, Ftri depth, RSBI | |
| (Optional-FiCO2, EtCO2,C20/C), | |
| Alarm Limits | |
| Visual | No tidal volume, MV,Paw, FiCh limitation |
| O2, Air failure, AC power failure, backup low | |
| Audio | No tidal volume, MV,Paw, F1O2 limitation |
| Pipeline supply | |
| Gas configuration | O2, Air |
| Pipeline input range | 280-600kPa |
| Battery Power | |
| Battery Type | Lead-acid 12V, 4Ah |
| Run-time | Typical 120 mins |
| Pre-setting functions | |
| Language | CHINESE/ENGLISH |
| Calibration | Touch pad/Flow rate/pressue/FiO2 |
| General settings | Password/time/day&night mode |
| Brightness setting | |
| Record history | |
| Applications | |
| Patient therapy type | Audlt/Pediatric Invasive |
| Audlt/Pediatric Non-lnvasive | |
| Assistant therapy | |
| Nebulization treatment | |
| O2 Remedy | |
| Auxiliary suction function | |
| Interface specifications | |
| Communication port | RS-232,VGA,Ethernet, USB |
| Environmental Conditions | |
| Operating Temp | 5 °C ~ 40 °C |
| Storage Temp | -10 °C~+40 °C |
| Humidity | ≤80% |
| Atmosphere pressure | 960hPa~1040 hPa |
