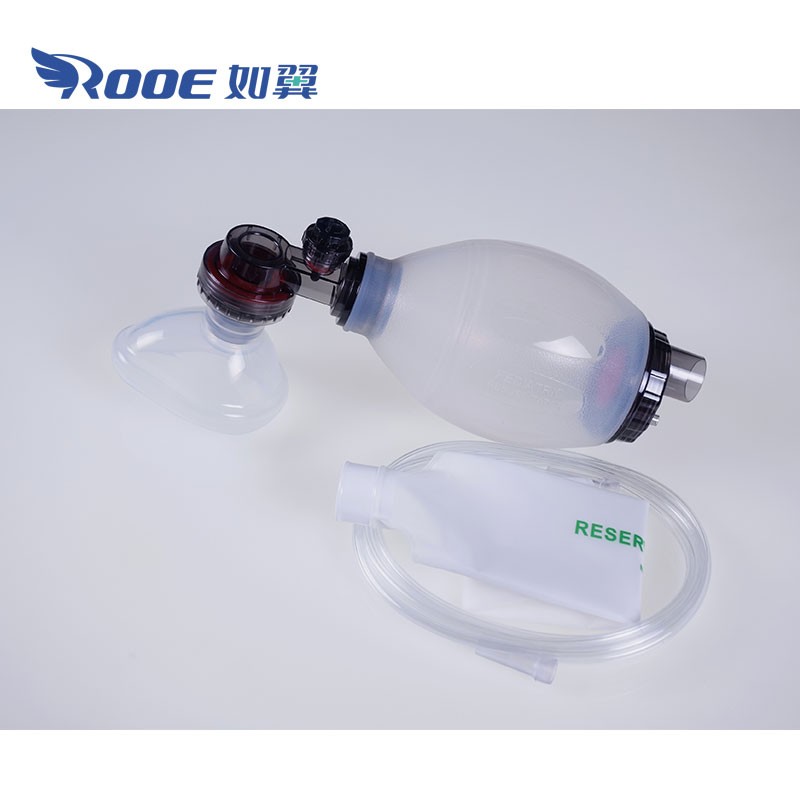

EB81 Manual Silicone Resuscitator is mainly used for cardiopulmonary resuscitation and general artificial respiratory assistance so that the patient can maintain normal breathing shortly before recovery.
O2 Silicone Manual Resuscitator Disposable Bvm Resuscitator Description:
silicone manual resuscitator, are used for atifial respirationof patients. They can be divided into Slicone, PVC SEBS according to the materials The new 4-in-1 intake valve design has the advantages of simple structure, convenient operation, porability and good ventilation effect.O2 resuscitator complete configuration and with various options, PVC and SEBS manual rscitator, single patient use can reduce the risk of Cross infection.Disposable bvm resuscitator can also be soaked and disinfected in the disinfectant and reused.Disposable resuscitator, soft touch, quick rebound, main body and silicone mask can be disinfected repeatedly under high temperature and hihp-ressre environment.Oxygen The resuscitator is a reusable manual resuscitator which is expected to be handled safely and with a convenient design and structured surface.
Intended Usage:
Disposable bvm resuscitator mainly used for cardiopulmonary resuscitation and general artificial respiratory assistance so that the patient can maintain normal breathing shortly before recovery.
O2 Silicone Manual Resuscitator Disposable Bvm Resuscitator Features:
EB8111: for adult and child
EB8121: for child and infant
EB8131: for infant and neonate
- Accessories such as mouthpieces, oropharyngeal airways, and lifting straps can be freely selected;
- 100% medical grade silicone, latex-free; silicone has good elasticity, high transparency, and can be reused at high temperature;
- Set 60 cmH2O safety pressure limiting valve;
- Integral intake valve design, direct connection of air storage bag and oxygen tube;
- In addition to oxygen tubes, airbags, and optional mouthpieces, oropharyngeal airway accessories, the ball, mask, and PC attachments can be sterilized by autoclaving at 134° C and reused.
- Use by a single patient;
- The non-slip effect of the rough surface of the recovery balloon can give the rescuer good operability.
Model | Infant | Pediatric | Adult | ||
specifications | infant≤10kg | 10 | Adult>33kgs | ||
Min volume | infant≤100ml | >300ml | >600ml | ||
Pressure limiting valve pressure | 40cmH2O | 40cmH2O | 60cmH2O | ||
Atmos valve joint for patient side | 15mm&22mm | ||||
Respiratory positive pressure valve | Joint 30mm, pressure value 5-20cm H2O adjustable | ||||
Sacculus volume | 340ml | 680ml | 1630ml | ||
Gas storage bag volume | 1600ml | 1600ml | 2000ml | ||
Package | 56*34*46cm/8pcs | 56*34*46cm/8pcs | 56*34*46cm/8pcs | ||
Oxygen concentration reference | |||||
Oxygen flow (L/min) | 3 | 5 | 10 | 10 | 4 |
ventilation frequency (Times/min) | 12 | 12 | 12 | 20 | 30 |
Ventilation volumn(ml) | 500 | 500 | 500 | 250 | 40 |
Oxygen concentration % | 60 | 86 | 95 | 95 | 92 |
Optional accessories: | silicone face mask, oxygen tube, reservoir bag,PEEP valve,B valve,airways,nose clip,mouth opener | ||||
Optional package: | PP case/paper box/polybag |
