EB83 PVC Manual Resuscitator is mainly used for cardiopulmonary resuscitation and general artificial respiratory assistance so that the patient can maintain normal breathing shortly before recovery

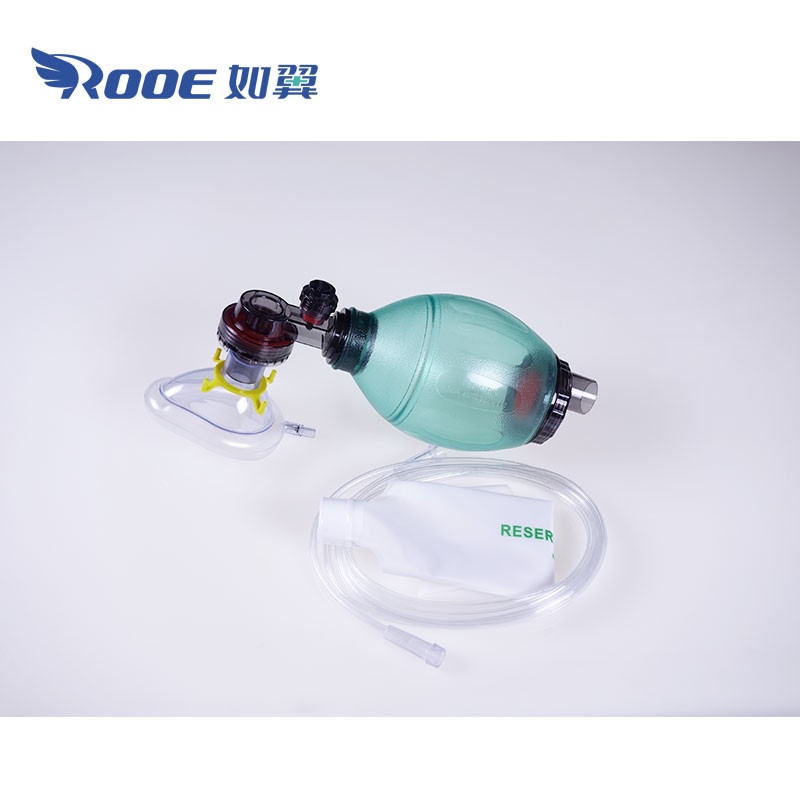

PVC Self Inflating Manual Resuscitator Adult/Infant Resuscitator Description:
Single use self inflating manual resuscitator specially designed for manual ventilation, size from the adult to the newborn. The unique ergonomic shape of PVC Manual Resuscitator is small and easy to hold, but only needs one hand to provide optimal travel. Adult Resuscitator packs come with one or more masks and accessories.
Infant Resuscitator is a manually operated, compressible self-filling ventilation bag with non-rebreathing patient valve and pressure limiting valve to minimize the risk of over-inflating and intake valve with oxygen pipe connector. Removable for cleaning, disinfection or autoclave processes.
We offer manual resuscitators in three sizes:
EB8311: for adult and child
EB8321: for child and infant
EB8331: for infant and neonate
PVC Self Inflating Manual Resuscitator Adult/Infant Resuscitator Features:
1.Non- toxic, non-irritating odor, good elasticity, durable,easy to disinfect
2.With automatic pressure limit value to ensure safety
3.PVC material is disposable, Silicone material is reusable
Model | Infant | Pediatric | Adult | ||
specifications | infant≤10kg | 10 | Adult>33kgs | ||
Min volume | infant≤100ml | >300ml | >600ml | ||
Pressure limiting valve pressure | 40cmH2O | 40cmH2O | 60cmH2O | ||
Atmos valve joint for patient side | 15mm&22mm | ||||
Respiratory positive pressure valve | Joint 30mm, pressure value 5-20cm H2O adjustable | ||||
Sacculus volume | 340ml | 680ml | 1630ml | ||
Gas storage bag volume | 1600ml | 1600ml | 2000ml | ||
Package | 56*34*46cm/8pcs | 56*34*46cm/8pcs | 56*34*46cm/8pcs | ||
Oxygen concentration reference | |||||
Oxygen flow (L/min) | 3 | 5 | 10 | 10 | 4 |
ventilation frequency (Times/min) | 12 | 12 | 12 | 20 | 30 |
Ventilation volumn(ml) | 500 | 500 | 500 | 250 | 40 |
Oxygen concentration % | 60 | 86 | 95 | 95 | 92 |
Accessories: | Reservoir bag, aspirated valve, air blender ,mask, oxygen tube, airway, case | ||||
Optional accessories: | silicone face mask, oxygen tube, reservoir bag,PEEP valve,B valve,airways,nose clip,mouth opener | ||||
Optional package: | PP case/paper box/polybag |
