DD-6 Medical Electric Tilt Table Rehabilitation Adjustable Tilt Bed DD-6 Medical Electric Tilt Table Rehabilitation Adjustable Tilt Bed

1.The total time is adjusted from 0-60 mins, the tilt time is adjusted 0-9s, intermittent time is adjusted 0-90s.
2.Equipped with hand control switch and othe​r safety device.
3.Remote switch controls foot pedal rotation and bed surface lifting.
4.Microcomputer controls tilt angle: 0 ° -90°

Quantity:
Share this:
  • Product Description

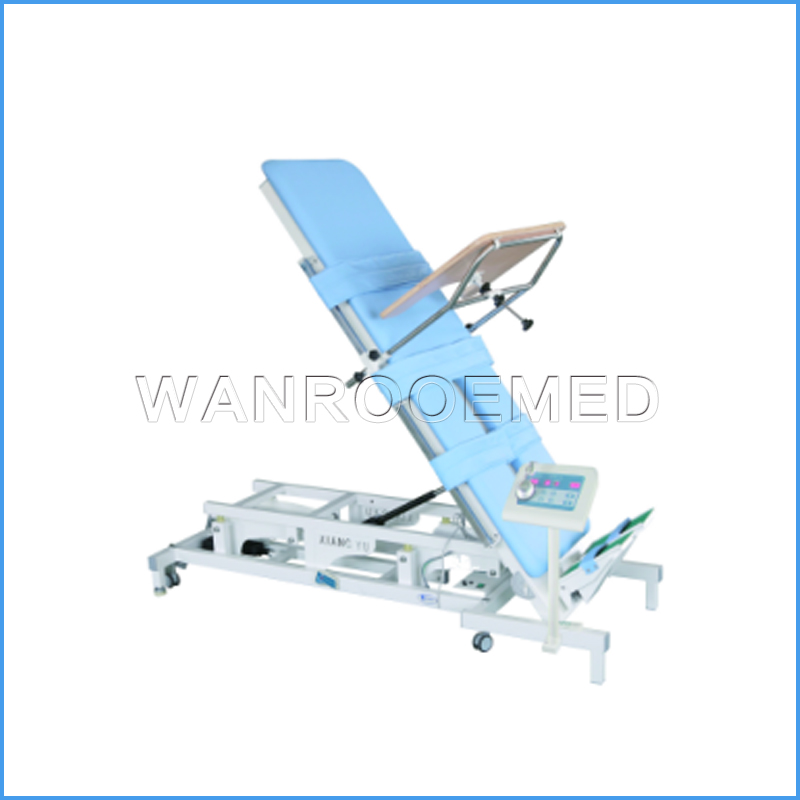

DD-6 Medical Electric Tilt Table Rehabilitation Adjustable Tilt Bed

Besides the ordinary tilt bed characters, it has the following charcters:

1.The total time is adjusted from 0-60 mins, the tilt  time is adjusted 0-9s, intermittent time is adjusted 0-90s.

2.Equipped with hand control switch and other safety device.

3.Remote switch controls foot pedal rotation and bed surface lifting.

4.Microcomputer controls tilt angle: 0 ° -90°


Technical Parameters:

Power: AC220,50HZ

Voltage: 150W

Upper body bed surface: 590*600mm

Lower body surface: 1330*600mm

Angle between upper body surface and lower body surface: 0 °--45°

Bed height: 410-750mm

Bed size: 2115*725*600mm

Standing angle: 0 °--90°

Foot rest adjustable up and down angle:-10 °--3 0°(relative to horizontal direction)

Foot rest internal and external adjustable angle:-30 °--30°(clockwise as positive angel)

Loading: 135kg

Driving mode: microcomputer control

System prescription: 20 prescriptions

Music: 200 songs playing freely

Treatment time: 0-90mins adjustable

Intermittent time: 0-90s

Remote control: RF remote control, validity within 15m



×
