DCPM-E Medical Rehabilitation Traction Service Ankle Joint Lower Limb CPM DCPM-E Medical Rehabilitation Traction Service Ankle Joint Lower Limb CPM

1. Special designed motor drive, run steadily, low noise, and long span life.
2. Microcomputer digital control design and it also adopt imported integrated parts, high volume imported CPU and intelligent program design, the machine also has the function of over-load protection.
3. Big screen liquid display, all the parameters can be read clearly.
4. Considering the need of medical curing, the motion range is wide (add the function of ankle joint movement).
5. Optimized structure design.

Quantity:
Share this:
  • Product Description

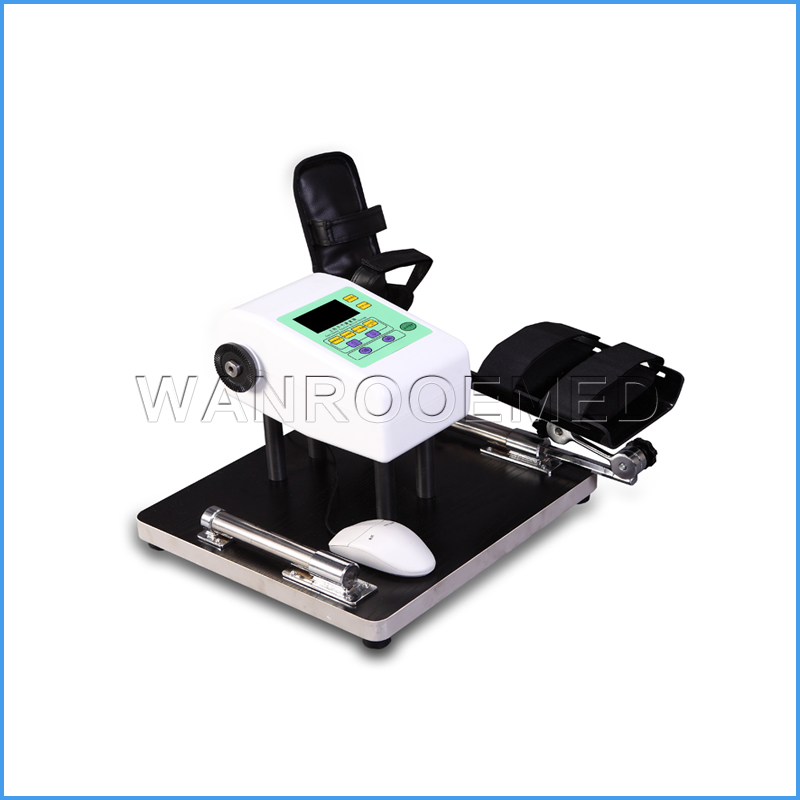

DCPM-E Medical Rehabilitation Traction Service Ankle Joint Lower Limb CPM

Feature:

1. Special designed motor drive, run steadily, low noise, and long span life.

2. Microcomputer digital control design and it also adopt imported integrated parts, high volume imported CPU and intelligent program design, the machine also has the function of over-load protection.

3. Big screen liquid display, all the parameters can be read clearly.

4. Considering the need of medical curing, the motion range is wide (add the function of ankle joint movement).

5. Optimized structure design.







Specification:

Thigh bracket adjustment range:320mm-500mm

Crus bracket adjustment range: 330mm-450mm

Angle motion range of knee joint:0°-125°

Angle motion speed range of hip joint:25°-100°

Angle motion speed range of ankle joint:0°-40°

Angle motion speed range:0.5°-2.5°/s

Angle motion range of foot plate: ≤40°

Power supply:220VAC,50Hz

Power:≤70W

Package: 920*390*400mm

G.W.: 22kgs


×
