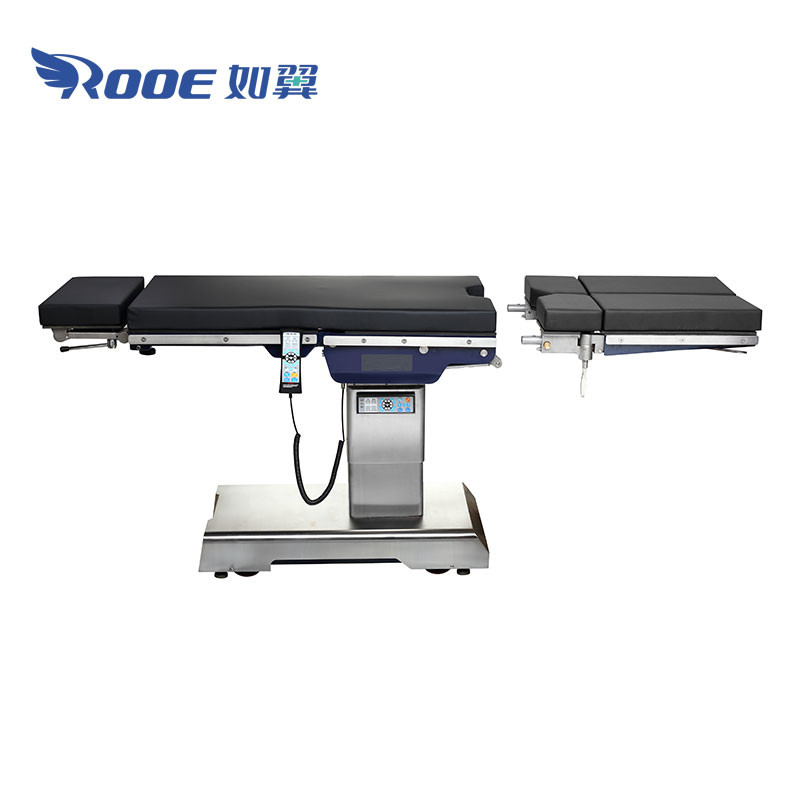

Engineered for increasingly complex surgical scenes, AOT700S comes with intelligent automatic control system satisfying various demands of general surgeries.
1. Longitudinal slide up to 350 mm for free access to C-arm
2. Extreme weight load capacity of 300 kg with highest safety and stability
3. Memory pad with antistatic, waterproof design

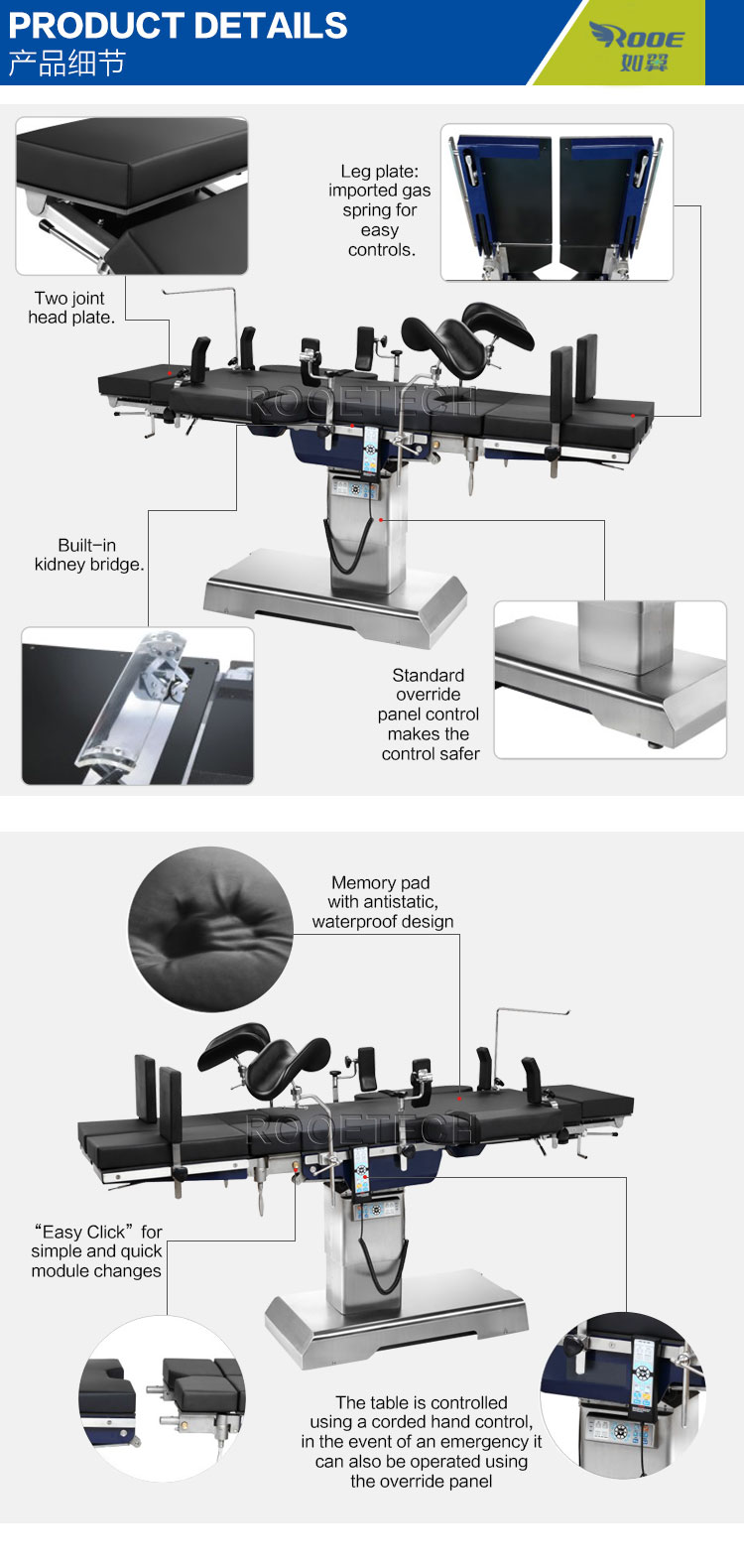

4. Standard override panel control makes the control safer
Multifunctional Hip Surgery Operating Table Features:
General features:
1. Head plate, back plate, hip plate, waist bridge, leg plate five parts, to meet the needs of general surgery;
2. 300 kg load capacity, with the highest safety and stability
3. Anti-static and waterproof design of memory pad
4. Table and base are made of high quality stainless steel, acid and alkali resistance, impact resistance, easy to clean and disinfect.
5. High quality casters ensure reliable stability and good mobility of the operating table, and the front brake pedal of the base ensures reliable fixation of the operating table.
6. Equipped with multi-functional accessories to adapt to different surgical needs.
7. Double joint head plate, head plate Angle can be adjusted to meet the needs of surgical position.
Technical Features:
1. Electro-hydraulic operating table, longitudinal slide up to 350mm, can freely contact C-arm

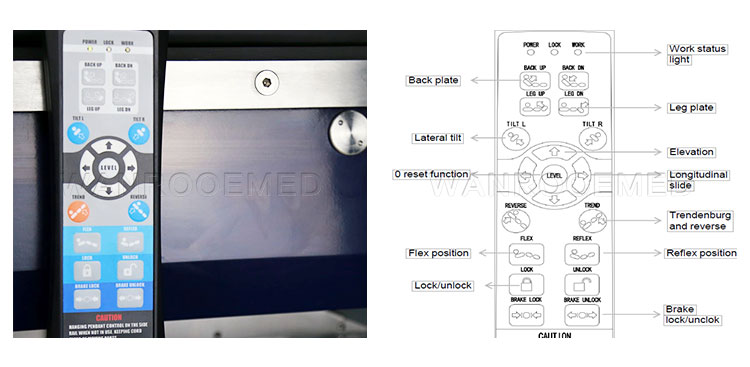

2. Dual control system. The combination of hand-held wire controller and column control panel is convenient for doctors to operate, and the expected position can be completed by continuous button operation.
3. The wider and longer mesa has a wider X-ray imaging range.
4. Built-in waist bridge electric lifting, easy to adjust the lumbar spine, spine and other positions required by the operation.
5. The plug and pull modular design of the foot plate can adjust the foot plate electrically, which greatly saves the time of adjusting the position. Leg plate can be controlled by electric hydraulic control, also can be controlled by gas spring.
6. Adjustable movements of Hi-LO, back, legs, Trendelenburg and Reverse-Trendelenburg, horizontal tilt function and vertical movement.
7. One key reset function can restore the original horizontal position.
8. One-key flexion and anti-flexion, electric leg plate function, save a lot of time.
Electrical characteristics:
1. Equipped with built-in large capacity battery, battery power for 50-80 operations.
Main Parameter | |
Model | AOT700S |
Operating Table Size | |
Length | ≥2170mm |
Width | ≥500mm |
Table Overall Adjustable Range | |
Min. height of table top from floor | ≤690mm |
Max. height of table top from floor | ≥1100mm |
Tendelenburg | ≥30º |
Reversed tendelenburg | ≥30º |
Lateral tilt | ≥20º |
Backward and forward movements | ≥350mm |
Horizonal ratation of tabletop | without |
Table Section Adjustment Range | |
Head section raised from the horizontal | ≥40º |
Head section lowered from the horizontal | ≥90º |
Kidney bridge elevated | 110mm |
Back section raised from the horizontal | ≥85º |
Back section lowered from the horizontal | ≥40º |
Leg section raised from the horizontal | ≥15º |
Leg section lowered from the horizontal | ≥90º |
Foot board can be horizontal or vertical with leg board. | |
Power Supply | AC 220V±10%,50Hz |

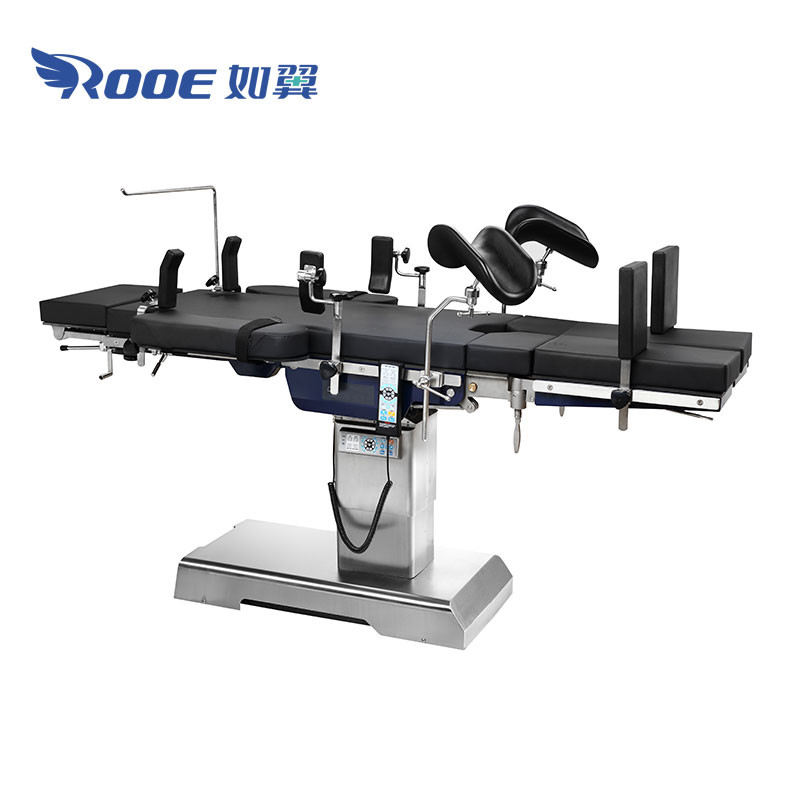

Basic Accessories: | Anaesthetic screen: 1 set |
Arm support: 1 pair | |
Body support: 1 pair | |
leg support: 1 pair | |
Shoulder Rest: 1pair | |
Foot plate: 1 pair | |
Cushion: 1 set | |
Manual controller: 1 pc | |
Kidney bridge handle: 1 pc | |
Power cord: 1 pc |
