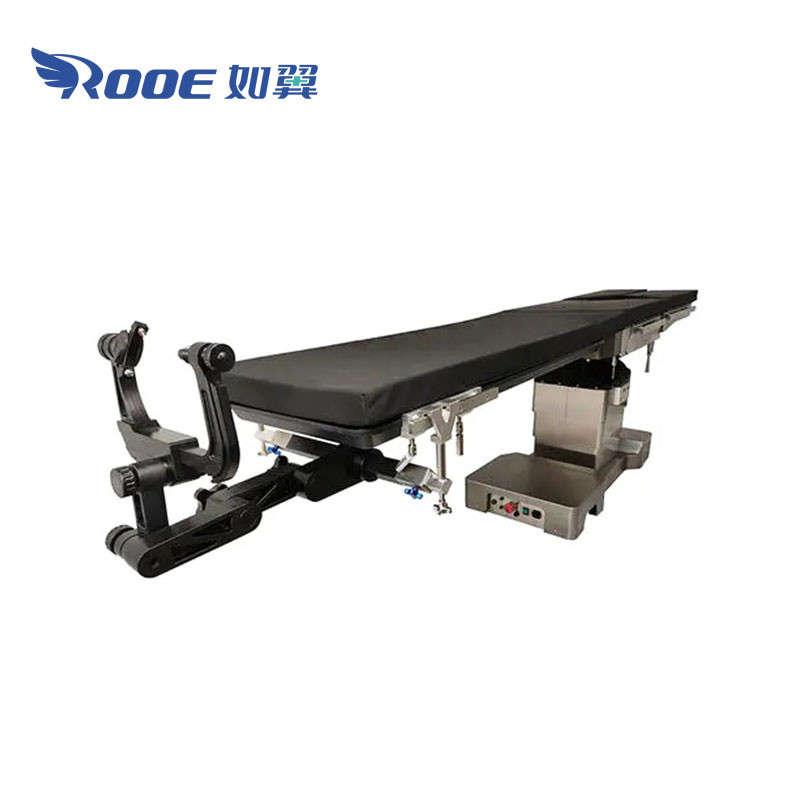

AOTA026C Series Cranial Support Brain Skull Rack For Operating Table

Cranial Support Brain Skull Rack For Operating Table Features：

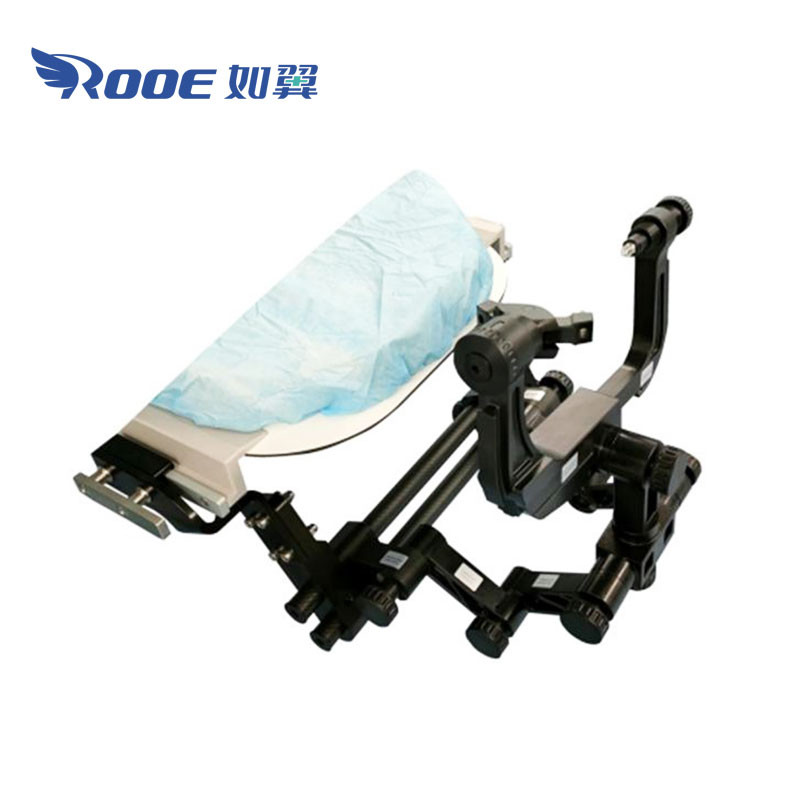

AOTA026C

1. It is made of all carbon fiber, meeting the requirements of full X- ray transmission during operation.

2. The distance between side rails of applicable operating table is 520-720mm, facilitate the intervention of DSA, large C arm, MRI and other imaging equipment, as well as routine neurosurgery surgery, etc.

3. The head clamp has a pressure display 0- 80lbs，and the double-sided 90° locking technology is convenient and fast to fix the head nail.

4. One set of titanium alloy head nails for adults and children.

AOTA026C-01

1. It is made of all carbon fiber, meeting the requirements of full X- ray transmission during operation.

2. The distance between side rails of applicable operating table is 400-630mm facilitate the intervention of DSA, large C arm, MRI and other imaging equipment, as well as routine neurosurgery surgery, etc.

3. The head clamp has a pressure display 0-80lbs，and the double-side 90° locking technology is convenient and fast to fix the head nail.

4. One set of titanium alloy head nails for adults and children.

5. Head frame for craniocerebral surgery (carbon fiber X- ray permeable)

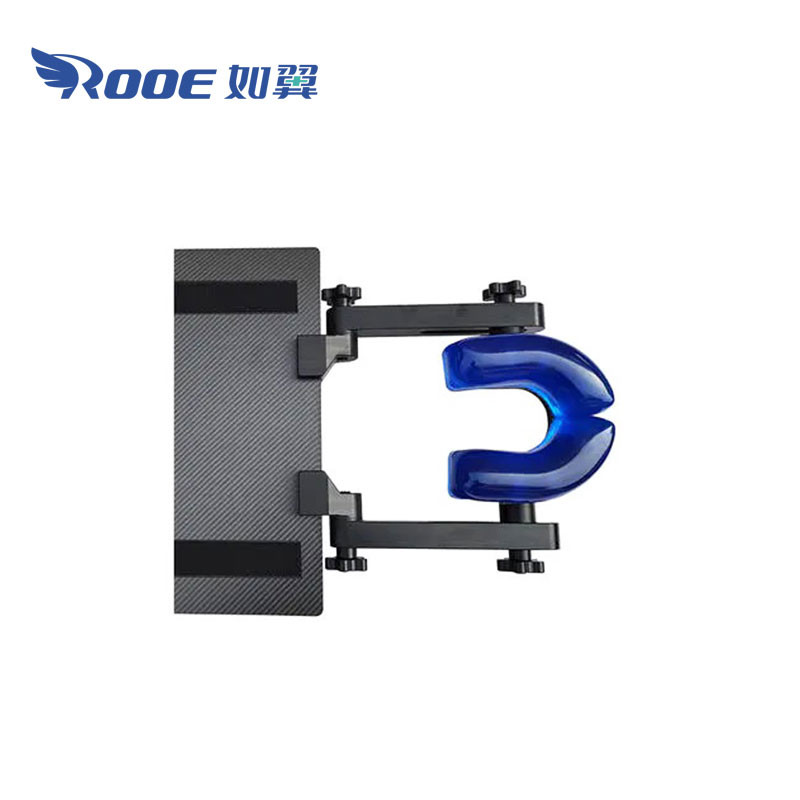

AOTA026C-02

1. It is made of all carbon fiber, which meets the requirements of full X-ray transmission during operation without any metal.

2. It adopts clamping type and is fixed on the operating table bed board or carbon fiber bed board with height spacing.

3. It can be adjusted, the head of the gel head material, head bracket angle spacing can be adjusted prevent long- term surgical pressure trauma.

Purpose:

It is suitable for prone position, posterior cervical spine and other surgical requirements.

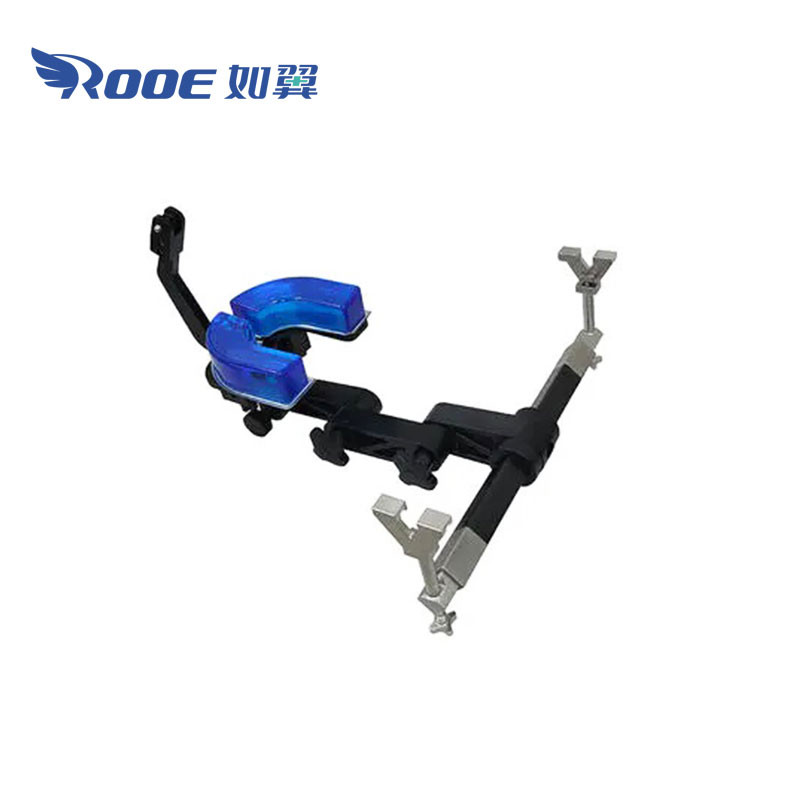

AOTA026C-03

1. It is made of all carbon fiber, which meets the requirements of full X- ray transmission during operation without any metal, the clamping device is fixed on both sides of the side rail of the operating table, and the height spacing can be adjusted, and the gel head support is prevented.

2. The angle and spacing of head rest can be adjusted after long- term operation.

3. The cervical traction rod adopts double guide wheels with adjustable angle.

4. The spacing is 520-720mm and can be adjusted.

Purpose:

It is suitable for traction in craniocerebral surgery and posterior cervical surgery.
