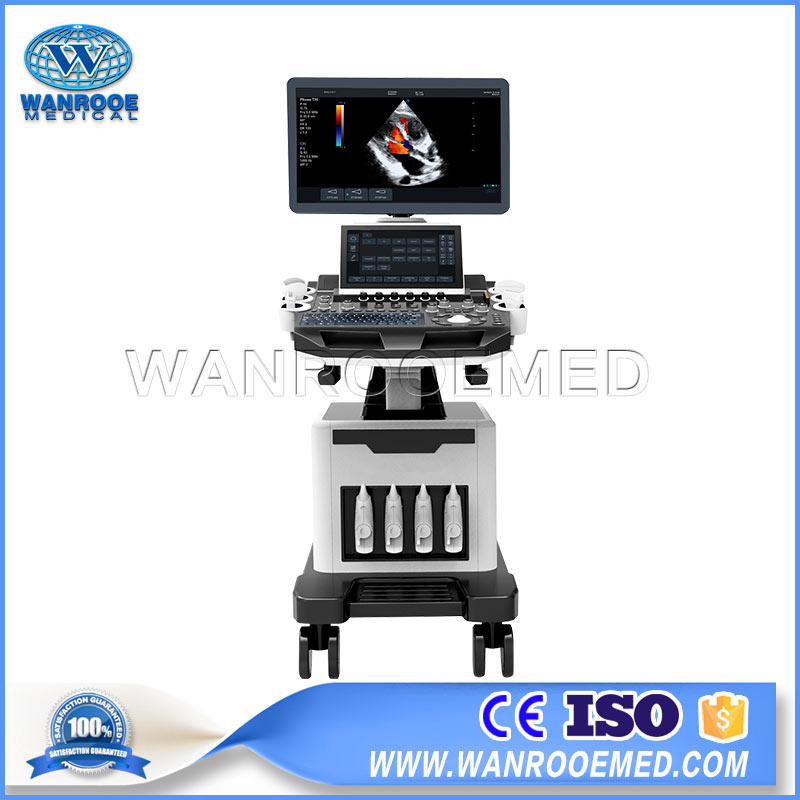

USC900 Medical Diagnostic 4D Color Doppler Trolley Ultrasound Machine

USC900 Medical Diagnostic 4D Color Doppler Trolley Ultrasound Machine USC900 Medical Diagnostic 4D Color Doppler Trolley Ultrasound Machine

Ultrasound imaging, also called ultrasound scanning or sonography is a method of obtaining images from inside the human body through the use of high-frequency sound waves. The reflected sound wave echoes are recorded and displayed as a real-time visual image. No ionizing radiation (x-ray) is involved in ultrasound imaging.

Quantity:
Share this:
  • Product Description
  • Video

USC900 4D Color Doppler Trolley Ultrasound Machine Function Configuration:

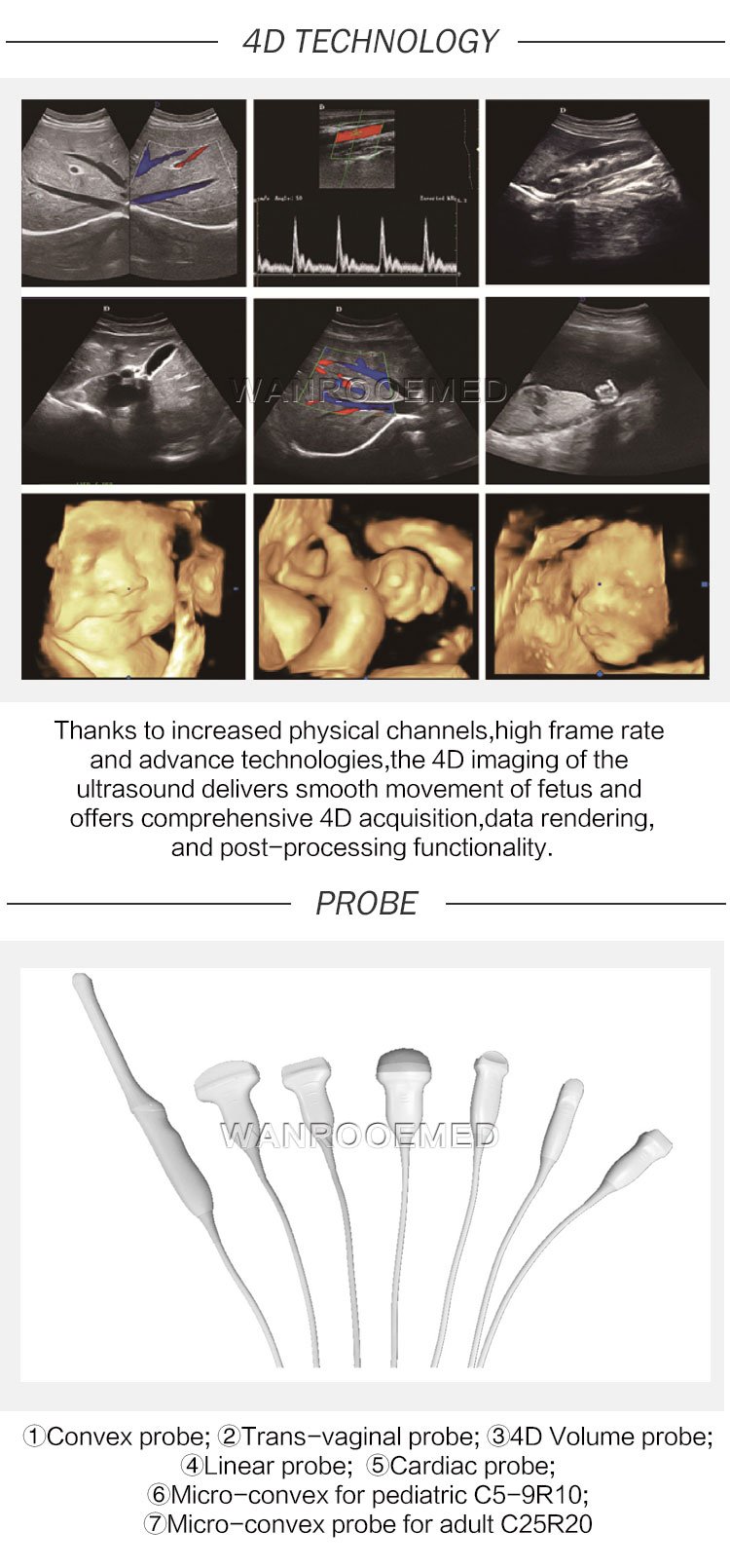

1) Imaging mode: Triple-synchronization, trapezoidal imaging; Full-digital 2D gray-scale imaging; Color Doppler flow imaging; Directional color energy Doppler imaging; Pulse Wave Doppler (PW) imaging; Continuous Wave Doppler (CW) imaging; Spatial composite imaging; Trapezoidal imaging; Wide area imaging
2)High Resolution Composite Imaging Technology
3) Tissue harmonic imaging (THI) technology (support for abdominal, heart, high frequency and intracavitary probe)
4) Adaptive speckle suppression technology
5) Linear probe trapezoidal imaging technology
6) Convex array probe widening angle imaging technology
7) 2D, color, Doppler mode automatic optimization adjustment technology
8) Real-time triple synchronization
9) Intelligent picture-in-picture imaging mode (PIP)
10) Real-time 3D imaging mode
11) Rich package standard, in addition to the general measurement software package, its standard configuration also equipped with a wealth of peripheral blood vessels, gynecology, obstetrics, cardiology, urology, neonatal, orthopedic and other measurement and blood flow analysis package, to well meet the clinical needs.
12) The size and color of the measurement cursor can be adjustable
13) Measurement results display position, display color, font color can be adjustable
14) Built-in E-COM graphic management system: 560GB memory, can edit the Chinese / English ultrasound diagnostic report, embedded in the report of ultrasound diagnostic images, and direct storage, print, callback, query, built-in DVD burner and USB interface

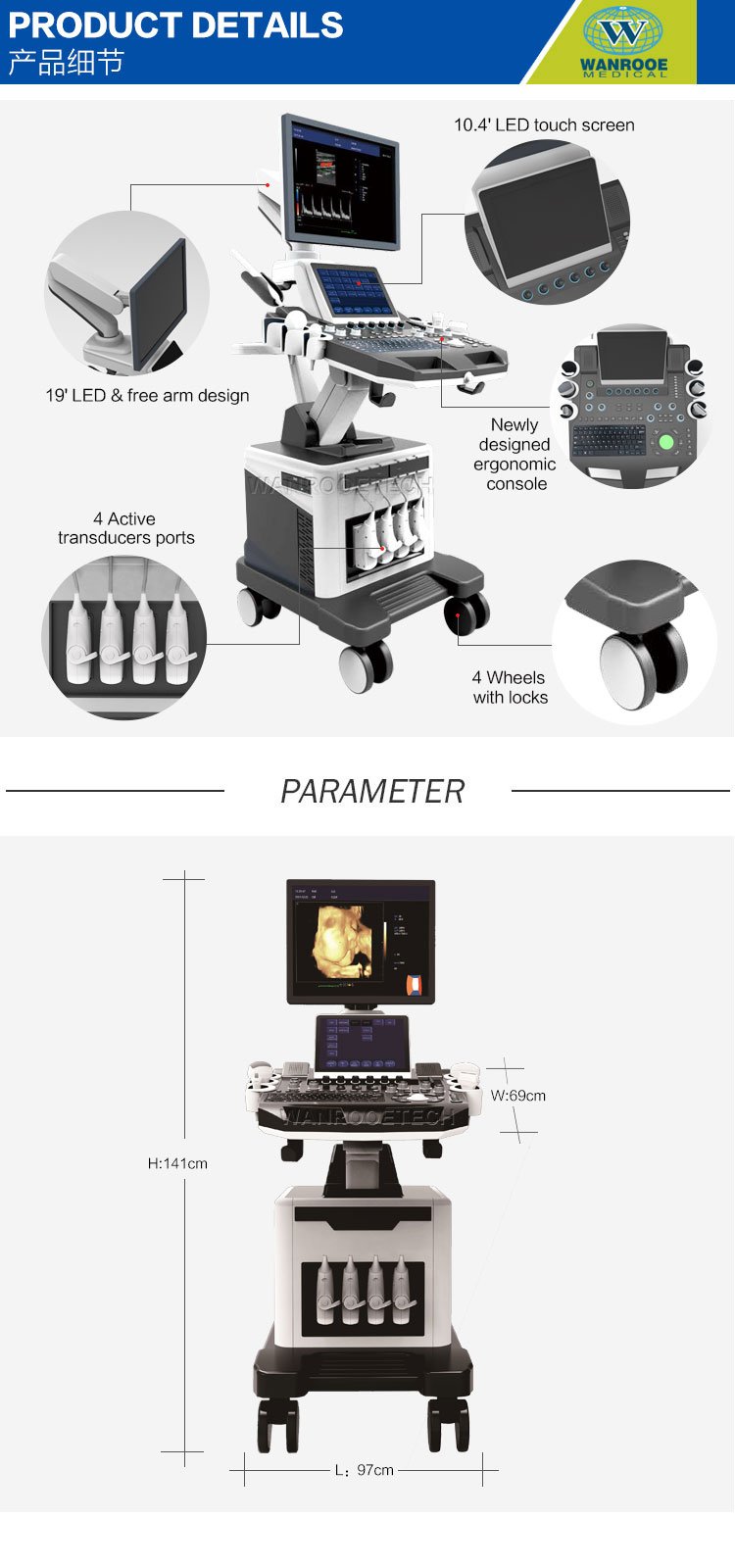

15) Display: 19-inch high-resolution high-brightness ultrasound dedicated LCD monitor + 10-inch color LCD touch screen
16) The operation panel can be adjusted around the left and right ≥90 °, the implementation of the diagnosis of doctors and patients to share.
17) Probe socket ≥ 4, full active, to meet the application for general hospital use.
18) Stored images can be displayed directly on the display interface, dump to the flash disk and other storage devices.

Applications: abdominal, urology, obstetrics and gynecology, pediatrics / neonatal, superficial structure / small organs, musculoskeletal, cardiac and so on.
