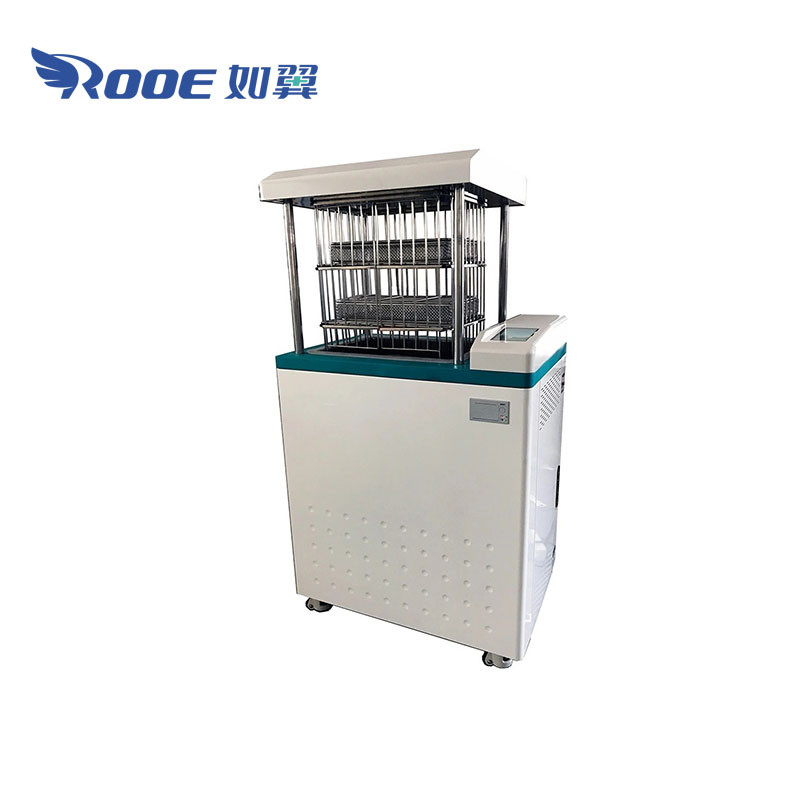

LS-60V/80V/100V/120V Small Vertical High Pressure Autoclave Steam Autoclave
LS-60V/80V/100V/120V Small Vertical High Pressure Autoclave Steam Autoclave

LS-60V/80V/100V/120V Small Vertical High Pressure Autoclave Steam Autoclave LS-60V/80V/100V/120V Small Vertical High Pressure Autoclave Steam Autoclave

Best suited for critical applications requiring assured and reliable complete destruction of all living microorganisms. Vertical autoclaves are the low-cost choice for general sterilization ideal for laboratories, hospitals, nursing homes, RESEARCH and development laboratories, pharmaceutical, food and beverage industries and institutions.

Quantity:
Share this:
  • Product Description
  • Parameter

Small Vertical High Pressure Autoclave Steam Autoclave Features:

1. 7″ capacitive touch screen, fully automatically controlled, easy to operate on .
2. Elevating type door, which is more convenient to place and fetch the objects from the autoclave.
3. The whole procedure from water inlet, pulse vacuum, heat , sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one-key operation.
4. Pulse vacuum, the limit is -0.080Mpa, which ensure the sterilizing more completely.
5. Separated steam generator, which is more energy saving by comparing to the normal heating and prevent the sterilizing objects from been oxidized.
6. There are several programs loaded in the autoclaves for different requirement of different objects.
7. With PT-TT testing port, easy to run the testing.
8. Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20 um, which ensure the air is sterile, prevent the contamination.
9. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

high pressure autoclave,vertical autoclave,small autoclave,high temperature autoclave,steam autoclave

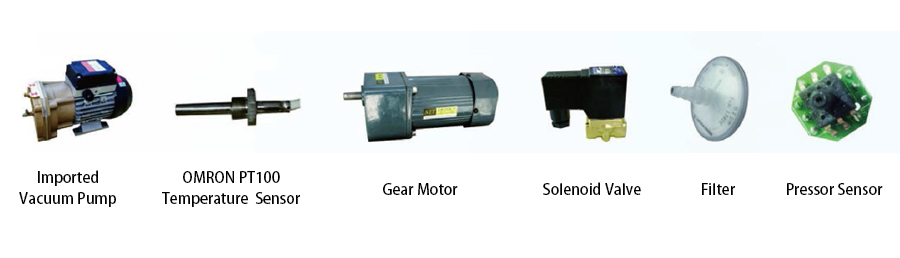

Main Spareparts

high pressure autoclave,vertical autoclave,small autoclave,high temperature autoclave,steam autoclave

Model

LS-60SV

LS-80SV

LS-100SV

LS-120SV

Chamber volume

60L

80L

100L

120L

φ 396 x 490mm

φ 396 x 650mm

504 x 404 x 502mm

504 x 404 x 590mm

The height after rising

1310

1590

1475

1565

Working Pressure

0.22Mpa

Working temperature

134°C

Heat average

≤+1°C

Timer range

0~99min

Temperature adjust range

105~134°C

Power

Steam generator: 3Kw,

Steam generator: 3.6Kw,

Dry blanket: 2.4Kw/AC220V .50Hz

Dry blanket: 2.4Kw/AC220V .50Hz

Overall dimension

686 x 556 x 913

686 x 556x 1035

840 x 600x 970

840 x 600x 1060

Transport dimension

786x 656x 1013

786x 656x 1135

940x 610x 1000

940x 610x 1075

G.W/N.W

210Kg/ 180Kg

230Kg/200Kg

300Kg/ 270Kg

325Kg / 295Kg

×
