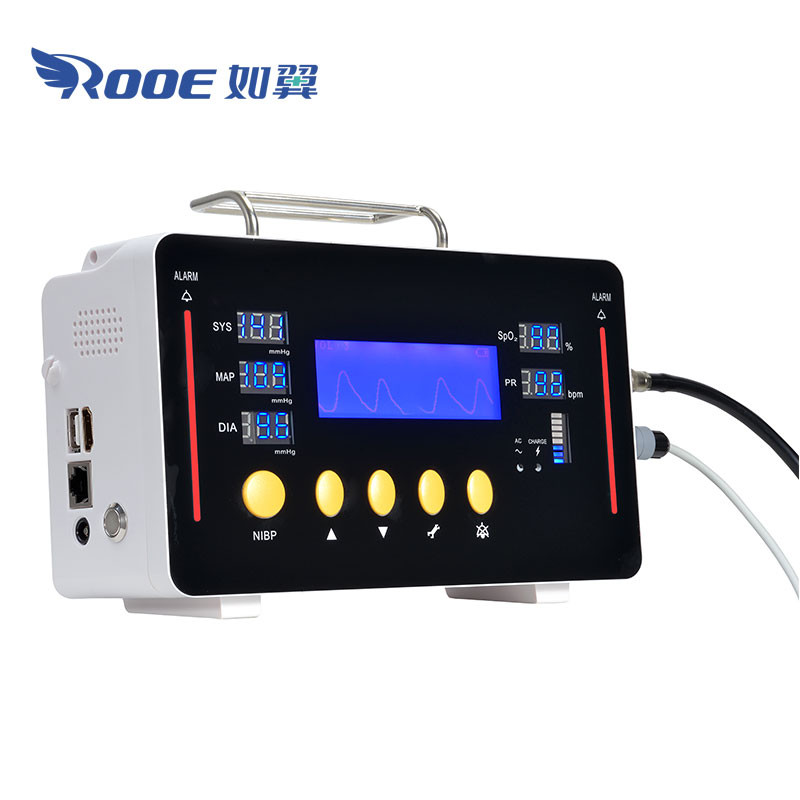

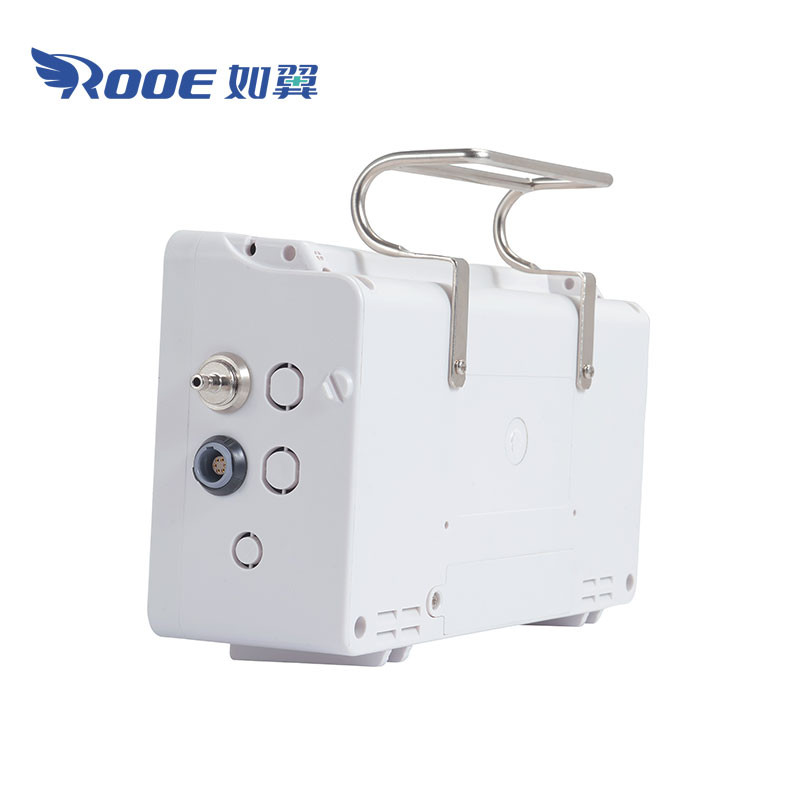

F2 V1.4 3.7 Inch Icu Patient Vital Signs Monitor Life Support Monitor Machine

3.7 Inch Icu Patient Vital Signs Monitor Life Support Monitor Machine Description：

The Patient Vital Signs Monitor provides direct action through a user configurable display, enabling clinicians to quickly access the desired results.
The ICU Vital Monitor has various parameters, including advanced capabilities such as NIBP, SPo2, and Temp. Designed for fast-paced work environments, the ICU Monitor provides an extremely simple and adaptable user interface. The Life Support Monitor can quickly modify patient information and vital signs Settings to meet patients' needs when their conditions change. The Patient Monitor Machine offers a high-resolution 3.7-inch screen to optimize the speed of patient care.

3.7 Inch Icu Patient Vital Signs Monitor Life Support Monitor Machine Features：

1. Built-in memory, which can store up to 100 hours of patient SpO 2 and 500 groups of patient NIBP

2. Perfusion index (PI) was measured as blood perfusion index

3. High brightness cold cathode fluorescent backlight LCD+LED display

4. Advanced simulation processing technology provides accurate measurements under low perfusion and motion conditions

5. Adjustable audible and visual alarms

6. Built-in large capacity rechargeable lithium battery

Display

LED + LCD

LCD Size: 85mm * 30mm

Battery

Type: Rechargeable lithium battery 3.7V/2200mAh

Charge Cycle: ≥500 times

Working time: 3 hours

Optional large battery for 8-9 hours work

Alarm

Level: Low, medium and high, message

Indication: Auditory and visual

Alarm volume adjustable

System Output

Ethernet Network: standard RJ45 socket (option)* 1

USB Port (option) * 1

Trend & Reviewing

Trend: 100 hours of patient SpO2

NIBP measurement reviewing: 500 groups

SpO2

Measurement Range: 0 ~ 100 %

Resolution: 1 %

Support Pitch tone and multi-level volume

Accuracy:   80% ~ 100%, ±2 % (adult)

70% ~ 80%, ±3% (adult)

0% ~ 69%, unspecified

PI range：0.075%-20%.

Pulse Rate

Measuring and Alarm Range: 25~250bpm

Accuracy: ±1% or ±1 bpm, whichever is greater

Resolution: 1bpm

NIBP

Method: Oscillometric

Measure mode: Manual, Auto, STAT

Measure Interval in AUTO Mode 1~480 min

STAT mode cycle time: Keep 5 minutes, at 5 seconds interval

Measure and Alarm Range:

Adult:          SYS:  30 ~ 270 mmHg

DIA:  10 ~ 220 mmHg

MEAN:  20 ~ 235 mmHg

Pediatric:   SYS:  40 ~ 235 mmHg

DIA:  10 ~ 220 mmHg

MEAN:  20 ~ 225 mmHg

Neonate:    SYS:  30 ~ 135 mmHg

DIA:  10 ~ 110 mmHg

MEAN:  20 ~ 125 mmHg

Static pressure accuracy: ±3mmHg

Resolution: 1mmHg

Accuracy:  Maximum Mean error ±5mmHg

Maximum Standard deviation ≤ 8mmHg

Over pressure Protection: Dual protection via software & hardware
