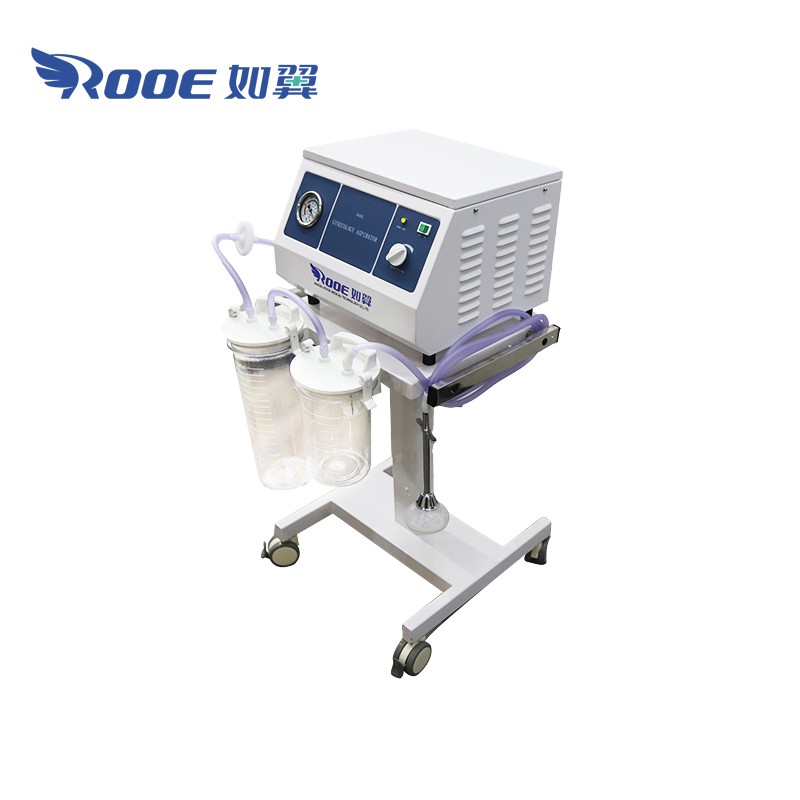

YX840L Gynecological Electric Suction Device Portable Suction Clinic
YX840L Gynecological Electric Suction Device Portable Suction Clinic

YX840L Gynecological Electric Suction Device Portable Suction Clinic YX840L Gynecological Electric Suction Device Portable Suction Clinic

This surgical and gynecological attractor is a powerful attractor. The case is made of ABS plastic to protect against damage and corrosion. Simple lines and modern design make the exterior look smart. The smooth surface is easy to clean, and the gray helps reduce tension.

Quantity:
Share this:
  • Product Description
  • Parameter

Gynecological Electric Suction Device Portable Suction Clinic Description:

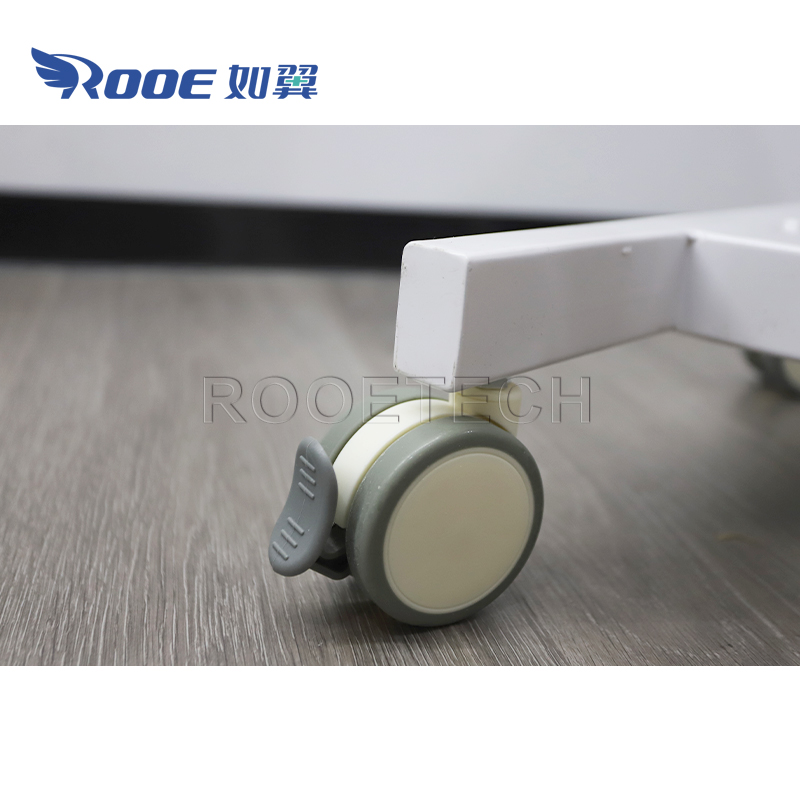

The electric suction device is designed for gynecological surgery in hospitals and clinics. It is a new type of mobile medical suction device, which is suitable for early pregnancy induced abortion, puerperium induced labor and postpartum residue removal. Portable Suction is designed to produce a higher vacuum at a lower flow rate and is equipped with a large diameter collection tank, with the bottle hanging next to the moving bracket for easy observation and operation. According to the needs of the Suction Clinic, a liquid filter device is selected for sampling. Suction aspirator with low center of gravity makes it move smoothly and smoothly; Casters with locking brakes safety improvements. Smooth one-piece design for easy cleaning. These materials can withstand strong disinfectants. Aspirator suction machine also provides a good platform for instrumentation.

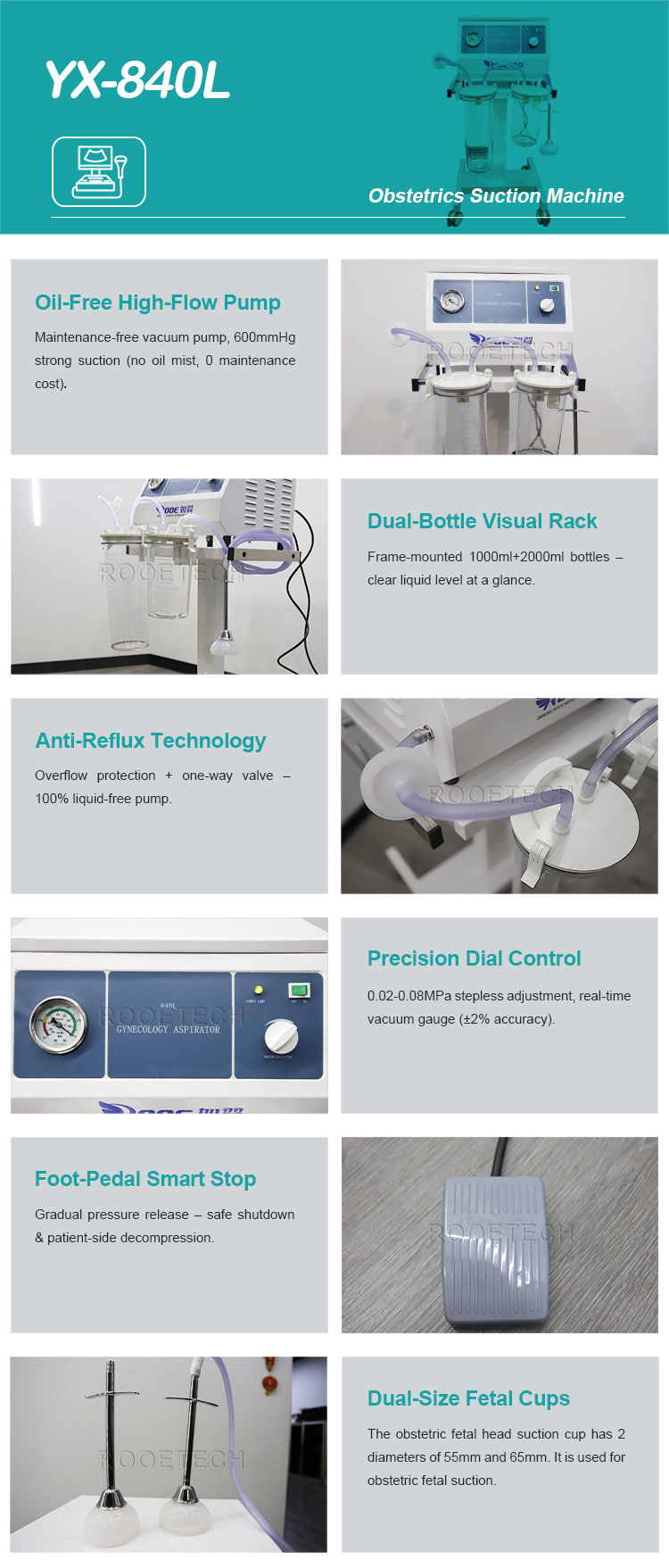

Gynecological Electric Suction Device Portable Suction Clinic Features:

1. the use of large flow no oil lubrication vacuum pump as a negative pressure source, high pumping rate, no oil mist pollution, can avoid daily maintenance and maintenance of the pump body;

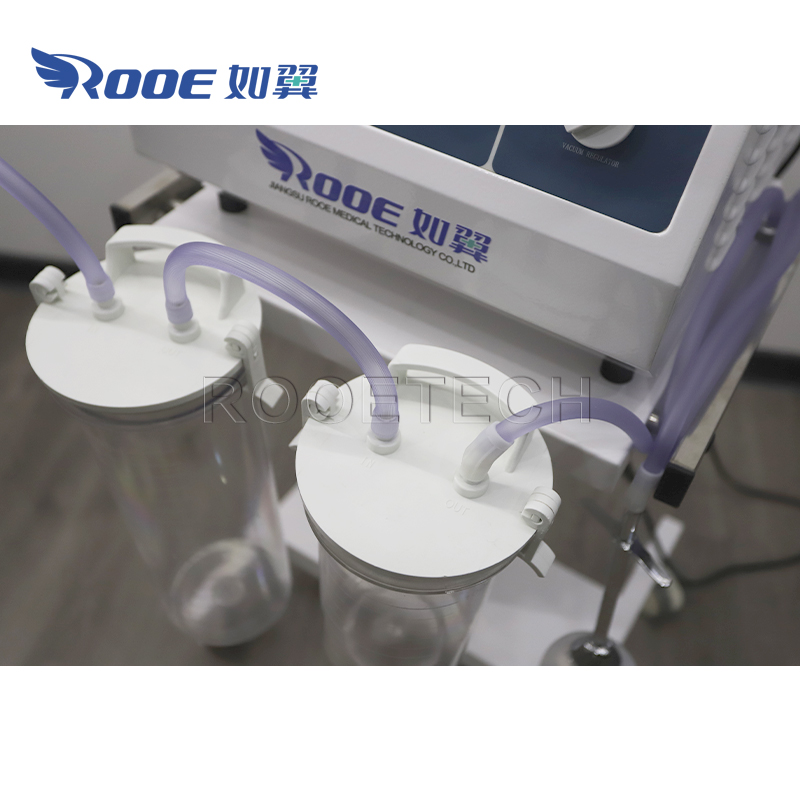

2. adopt the frame structure, the storage bottle is directly hung on the frame, observe the liquid in the bottle more clear;

3. overflow protection device can prevent liquids from entering the middle pipeline and pump;

4. the pipeline is equipped with a one-way valve, you can choose to stop the operation;

5. negative pressure adjustment valve rotation, can control the required negative pressure during the attraction, and by the vacuum pump table display;

6. control the negative pressure release device with the foot switch, can be used for the shutdown operation from high to low negative pressure, and can be used for the patient terminal negative pressure release.

7.Scope of application: For clinical gynecology absorption and reference.



Specification


Model

YX840L

Max vacuum

≥0.08 MPa(600mmHG)

Adjustable Vacumm Range

0.02MPa(150mmHG)~0.08Mpa(600mmHG)

Noise

≤60 dB(A)

Flow Rate

≥40L/min

Power

AC 220V,50Hz

Input power(VA)

150 VA

Reservoir capacity

1000ml+2000ml


×
