F3 Touch Screen Transport Patient Monitor Wall Mount Vital Monitor Machine F3 Touch Screen Transport Patient Monitor Wall Mount Vital Monitor Machine

The F3 vital signs monitor is engineered for the mobile, precise and fast recording of vital signs data at clinics, hospitals and outpatient treatments. Ergonomical design and highly developed technology resulting in reliable measurement results and time efficiency.12V DC power supply for ambulance use.An optional HDMI output eases observation from a long distance.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Transport Patient Monitor Wall Mount Vital Monitor Machine Description:

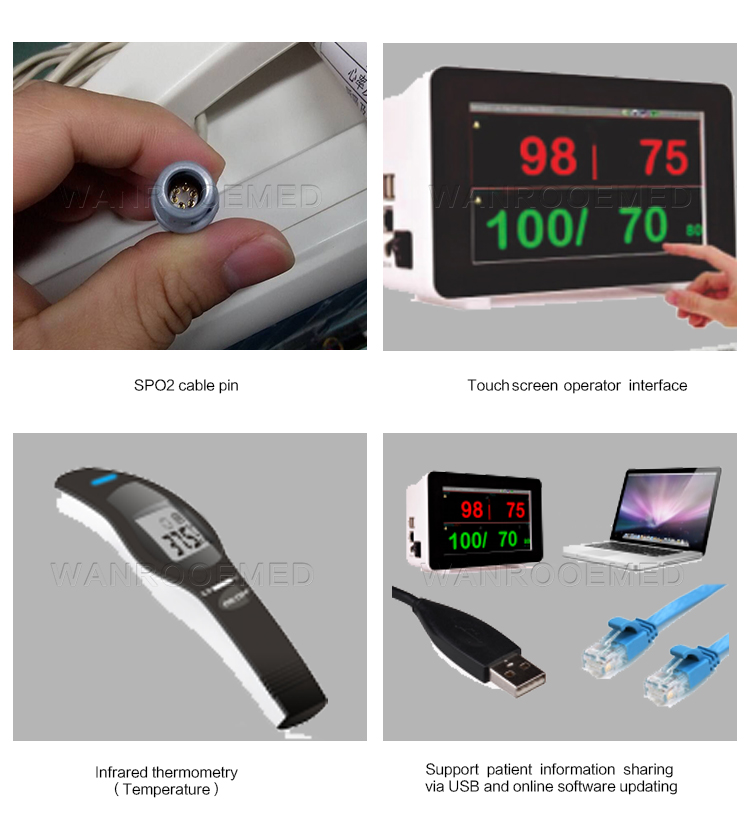

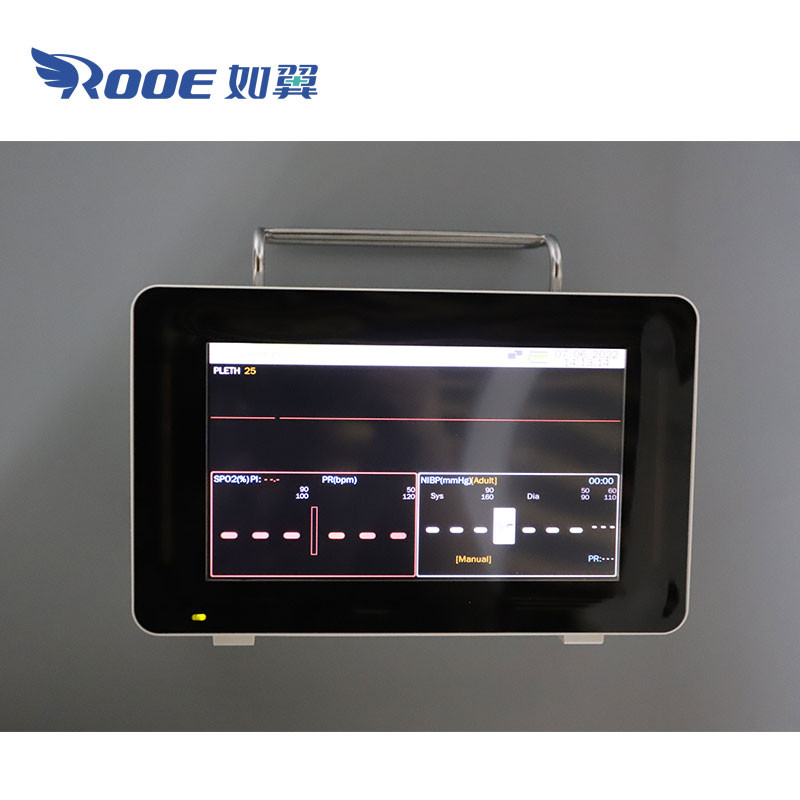

The Transport Patient Monitor features a 7-inch high brightness color LED display and a replaceable battery for easy patient mobility. The Vital Monitor Machine has a built-in memory of 720 hours of patient data sheets and 1000 sets of NIBP results reviews. With advanced digital processing technology to provide accurate measurements in low perfusion and exercise situations, the Touch Screen Patient Monitor comes with an audible and visual alarm. Infrared thermometers allow clinicians to use non-invasive infrared technology to obtain the patient's temperature and thus detect heat on the skin surface. Patient Monitor Wall Mount Optional HDMI output for easy viewing from a distance.

Transport Patient Monitor Wall Mount Vital Monitor Machine Features:

Technical Parameters:
Display :- 7Inch LED TFT,
Battery Backup:- 2-3 Hours
Alarm
- Level: Low, medium and high
- Indication: Auditory and visual
- Alarm volume adjustable
- Alarm pause time: 1min, 2min
- Parameter alarm type: Latch/ Unlatch
Input Device
- Touch screen (standard)
- Touch pen (standard)
Heart Rate - Measure range:
Adult: 0bpm; 10 ~ 300 bpm
Neo/Ped: 0bpm; 10 ~ 350 bpm
ECG
- Lead mode: 3/5 Leads, I, II, III or I, II, III, AVR, AVL,AVF, V
Trend & Reviewing
- Trend: 2160 hours
- ARR events: 128 groups of ARR events and associated waveform
- NIBP measurement reviewing: 2000 groups
- Waveform review: 2 hours
- Alarm event: 2000 groups of parameter alarms events and associated parameter
NIBP
- Method: Oscillometric
- Measure mode: Manual, Auto, STAT

F3 7 Inch Touch Screen Patient Monitoring System Patient Monitor For Ambulance00.jpg

Configuration
Standard Config.
Config. ASpO2, Pulse Rate
Config. BNIBP
Config. CSpO2, Pulse Rate, NIBP
Config. DNIBP, Temperature
Config. ESpO2, Pulse Rate, Temperature
Config. FSpO2, Pulse Rate, NIBP, Temperature
Config. GSpO2, Pulse Rate, NIBP, ECG
Config. HSpO2, Pulse Rate, Respiration, Mainstream EtCO2
Config. ISpO2, Pulse Rate, NIBP, Respiration, Mainstream EtCO2
Config. JSpO2, Pulse Rate, NIBP, ECG, Temperature, Respiration
Optional Config.Nellcor SpO2, Masimo SpO2, SunTech NIBP, Infrared Thermometry
Optional AccessoriesPrinter, HDMI Output, Wall-mouting, Trolley, Bed Hanger,
Neo /Ped Accessories,  Central Monitoring Station
×
