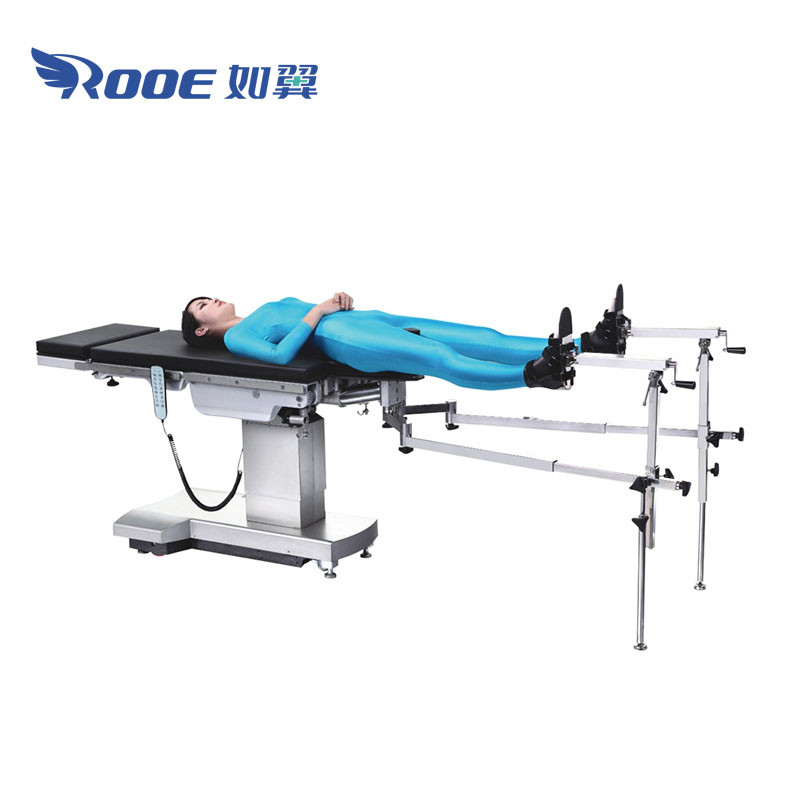

Orthopedic traction brought flexible positioning and imaging for orthopedic surgery. The system is designed for lower limbs and buttocks, which can be connected to the general top sliding operating table. The system consists of stainless steel leg beams, which is ideal for use with the imaging device, and can be easily adjusted according to the patient's body type and positioning requirements.
Fracture Surgical Frame Traction For Hip Fracture Features:
1. The orthopedic traction is characterized by delicate structure, provide input connector, easy to assembly.
2. You can adjust the height of the orthographic as you wish, convenient for doctors to use other operating tables.
3. Exposed metal part adopts 304 stainless steel material.
4. With 4 stainless steel universal brake wheels, easy to move and locate.
5. Posture adjustment, traction and other manual control, can be used through the control knob to use a variety of positions.
6. The product is composed of base, guide rail, pelvic frame, frame, leg bracket, tractor bracket, etc
Specification | |
Model | BAE308 |
Length: | 1400mm |
Width: | 600mm |
Height: | 900mm |
Allow for minimum operating table height: | ≤740mm |
Foot plate hauling distance: | ≥200mm |
leg support minimum height : | ≤540mm |
elevation range | ≥200mm |
foot plate up/down | ≥60° |
outside support components angle range: | ≥180° |
