The bed is designed for parturition and gynaecology operation.
It includes two parts: the bed and the legs. The bed can be raised or lowered hydraulically by means of an oil pump.
The ascending and descending movements of the legs are controlled by the leading screw and operated by the handwheel.
A-2003/2003A Hospital Medical Equipment Delivery Obstetric Gynecology Electric Bed

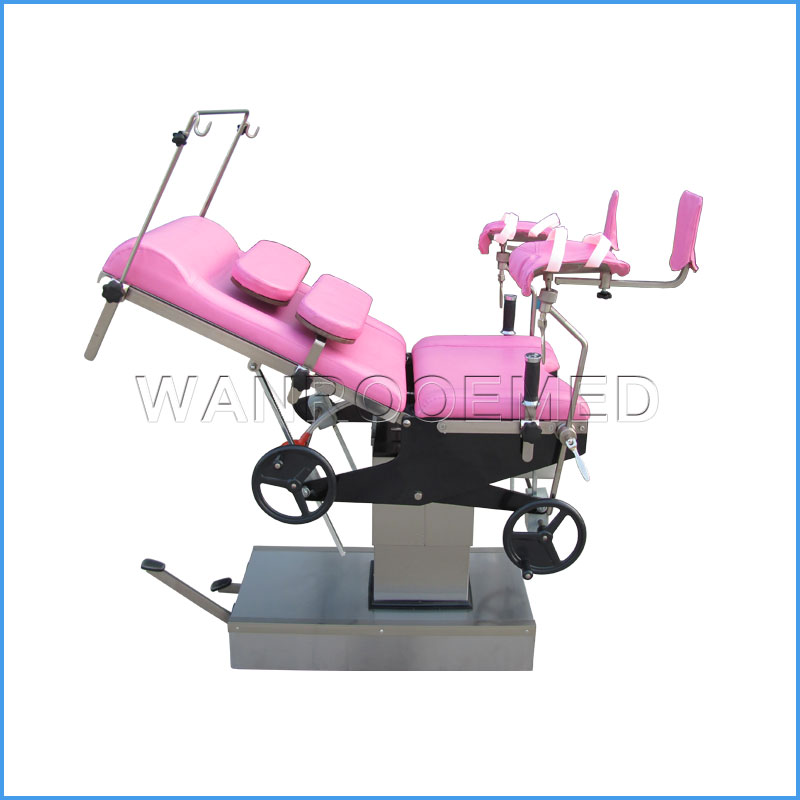

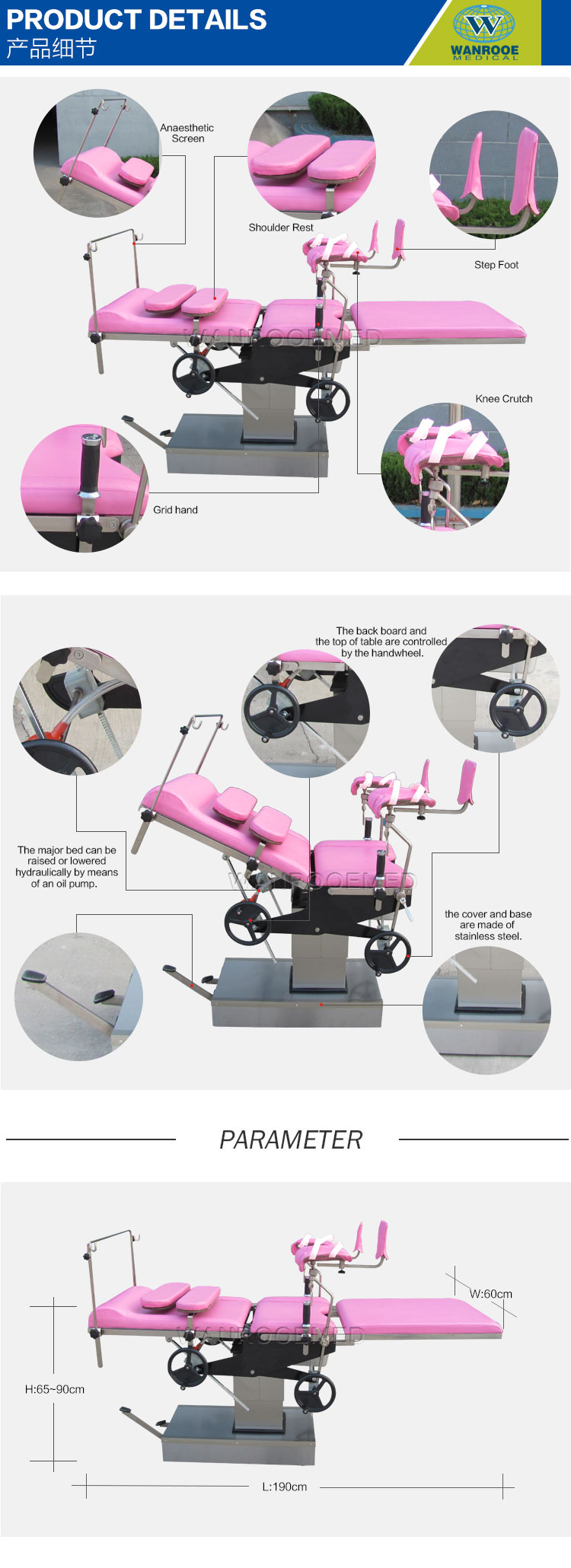

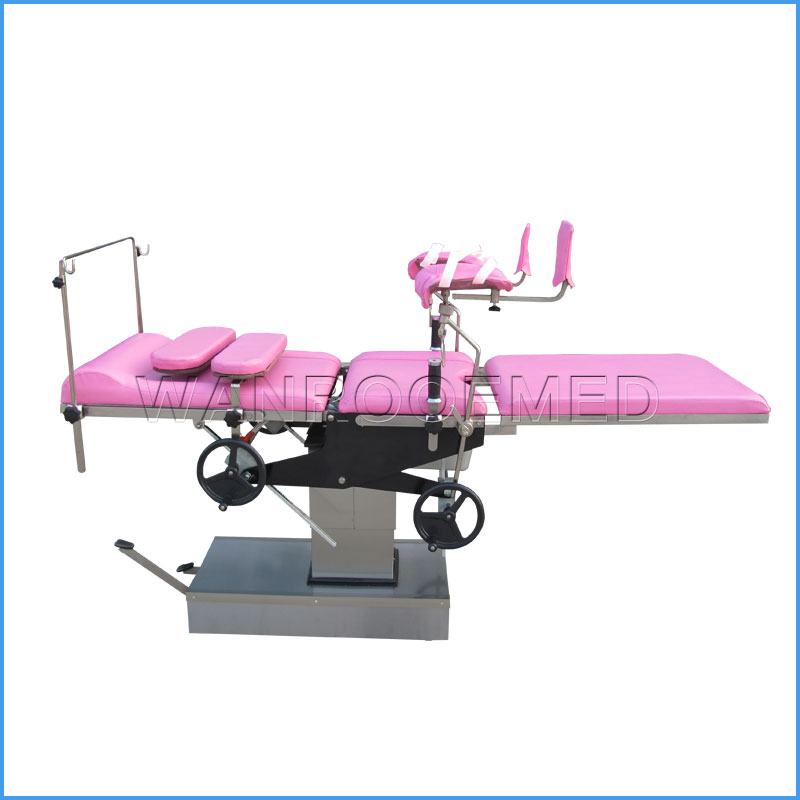

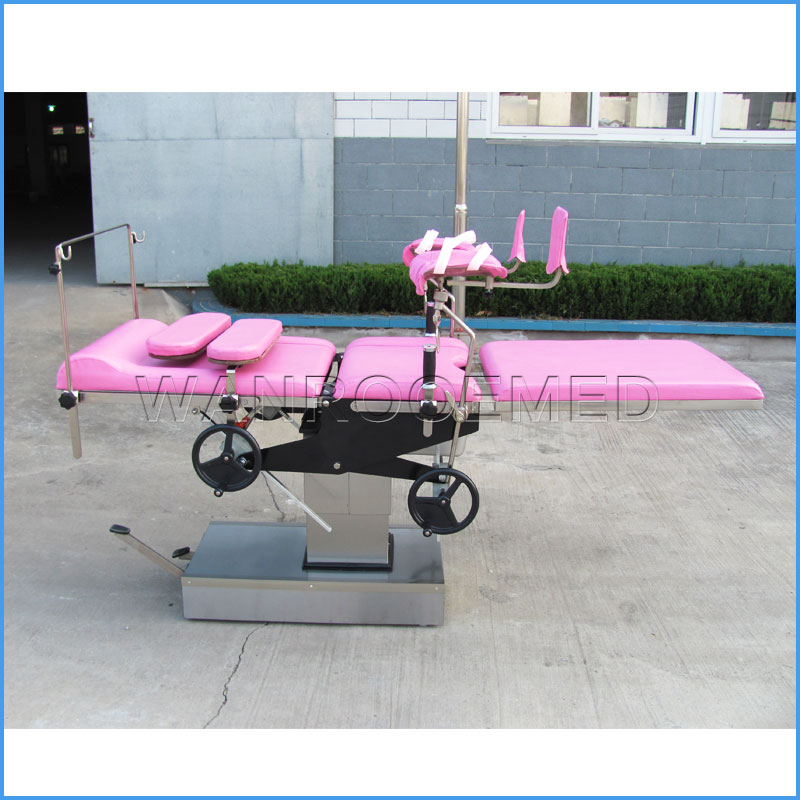

The bed is designed for parturition and gynaecology operation. The bed consists of a major and an auxiliary one. The back board and the top of table are controlled by the handwheel. The major bed can be raised or lowered hydraulically by means of an oil pump.
Specifications:
Length: 1900mm
Width: 600mm
Height: 650-900mm
Back Section Up≥60°
Back Section Down≥10°
Reversed Trendelenburg ≥8°
Trendelenburg≥20°
Basic Accessories:
Anaesthetic Screen:1 set
Shoulder Rest: 2 sets
Arm Support: 2 sets
Knee Crutch: 2 sets
Step Foot: 2 sets
Cushion: 1 set
Grid hand: 2 sets
Packing(1pc/wooden case): 139*84*88cm, G.W.: 240kg, N.W.: 200kg.
Note: For Model A-2003A, the cover and base are made of stainless steel.
