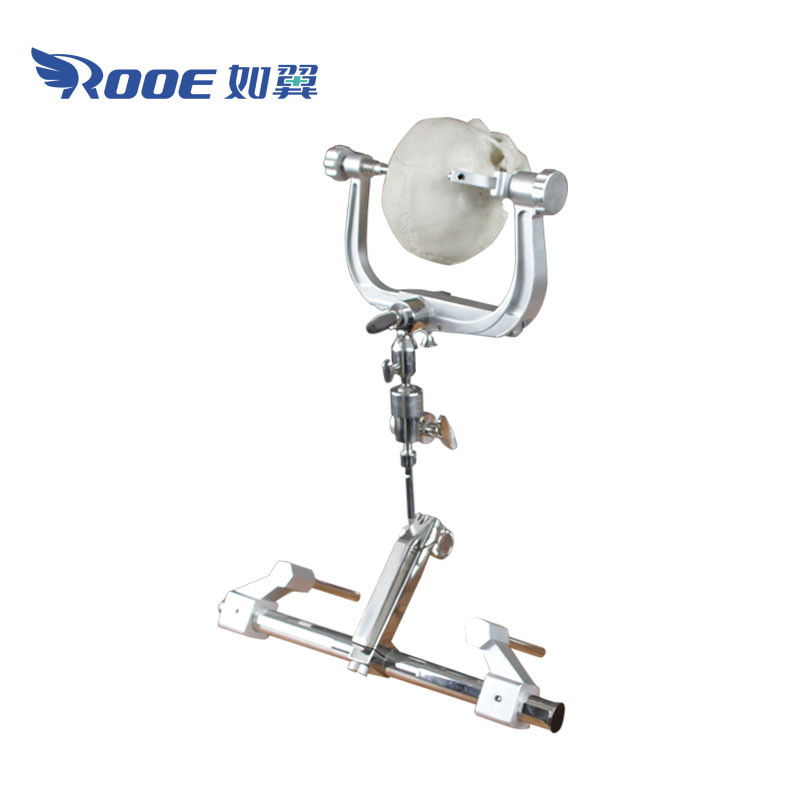

AOTA302 Neurosurgery Head Rack With Horseshoe Headrest

This skull cIndicated for neurological procedures, it aids in the fixation and support of the head rack, offers intraoperative precision and stability of the patient's head.lamp is used together with operating tables. It can be rotated and adjusted forward and back ward, left and right, up and down depending on patient body positions such as supine, prone or face sideward lying or sitting. With simple and stable structure and high precision, it becomes most suitable device for neuro surgeries, orthopedic surgeries etc

Get a Quete

Neurosurgery Head Rack With Horseshoe Headrest Features：

1. 3 points intracranial fixation, better surgical field

2. The full set of instruments consists of a base, a skull fixator and a U-shaped head frame.

3. According to the operation needs before and after, left and right, up and down rotation adjustment.

5. The instrument adopts crank connecting rod structure, and the lock is fastened by lever handle, which is safe and reliable.

6. Easy to clean headrest, suitable for children and adults

7. Aluminum alloy material reduces the reflection of light source and reduces the surgical error.

Request More Information

AOTA303 3 Pin Skull Fixation Device Surgery Retractor

AOTA303-A008 Neurosurgery Surgical Retractors For Operating Table

AOTA303-A007 J Arm Leyla Brain Retractor Surgical Retractor System

AOTA400/401 Lumbar Spine Support Brace With Cervical Traction

AOTA306 3 Pin Headrest Skull Clamp Neruo Surgery

AOTA305 Skull Frame 3 Point Cranial Support

AOTA301 4-Point Head Frame For Brain Surgery

AOTA300 4 Point Cerebral Skull Head Holder

Main Parameter
Model	AOTA302
forward and backward movement:	350mm
left and right movement:	400mm
height adjustable range:	350mm
swinging angle:	≥ 75°
adjustment range for Installation of center distance:	190~590mm
Level rotation angle for ball socket adaptor:	360 °
Vertical plane angle for ball socket adaptor:	0°-75°
The distance of the threaded hole on transitional member	190-590mm
