AOTA301 4-Point Head Frame For Brain Surgery

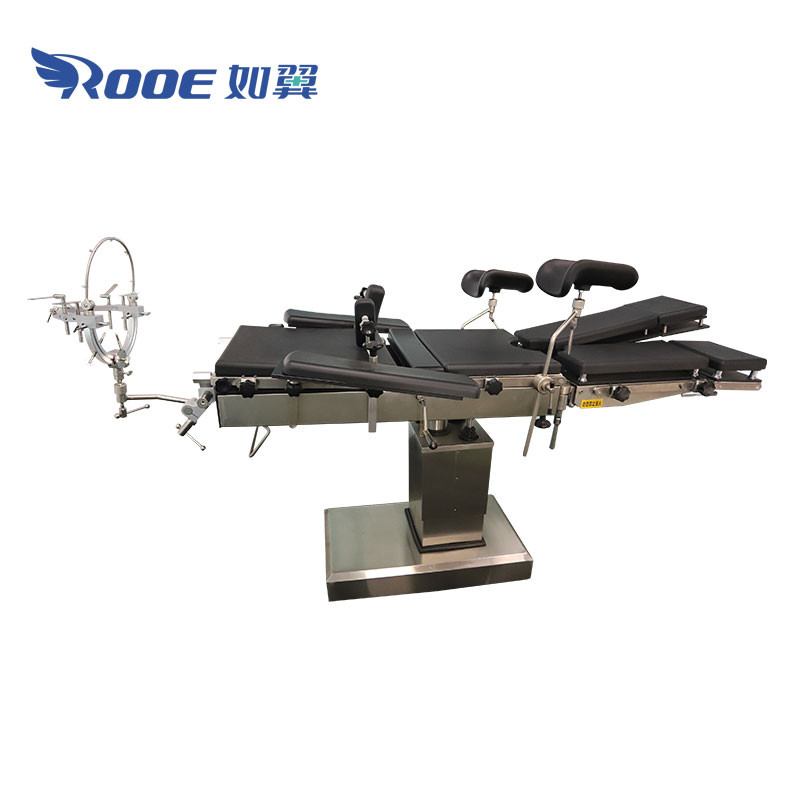

This head rack is a special device, matched with cerebral surgery. It can be adjusted forward and backward, left and right swing, raised and lowered according to operation requirement, which is easy to get best head position and body position.

Get a Quete

4-Point Head Frame For Brain Surgery Features：

1. Head frame is a special equipment matching with craniocerebral surgery.

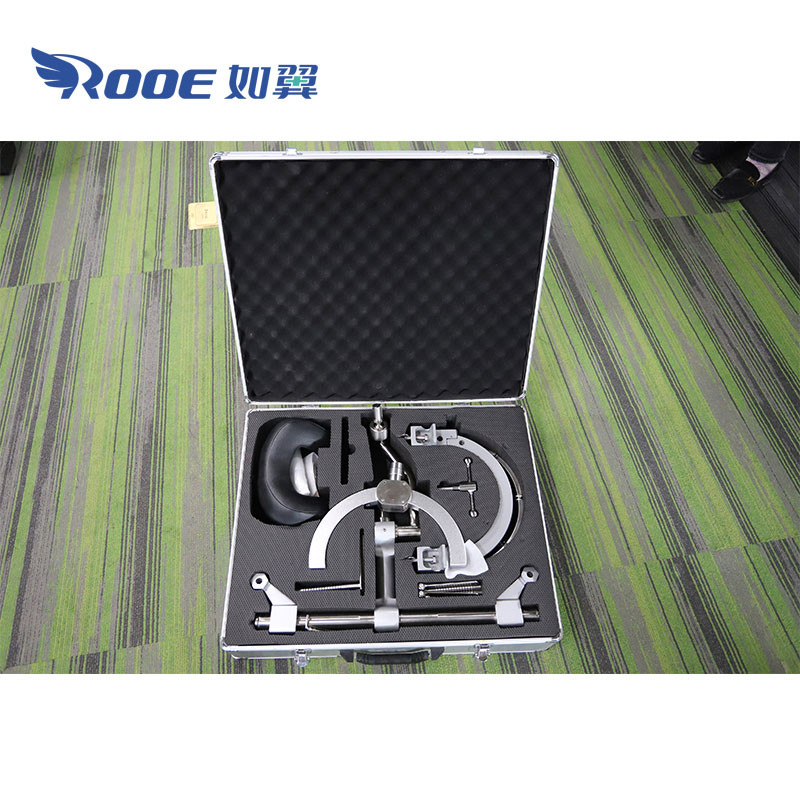

2. The whole apparatus is composed of three parts: the base body, the head fixed frame and the head support.

3. The cranial fixation frame can be adjusted according to the operation needs. It is suitable for sitting posture, supine, prone, side lying;

4. The whole set of instruments makes the range of operation relatively larger and can reduce the physician’s physical strength from the face.

5. The whole set of instruments is made of aluminum alloy material.

Main Parameters
Model	AOTA301
forward and backward movement:	350mm
left and right movement:	400mm
height adjustable range:	350mm
swinging angle:	≥ 75°
adjustment range for Installation of center distance:	190～590mm
