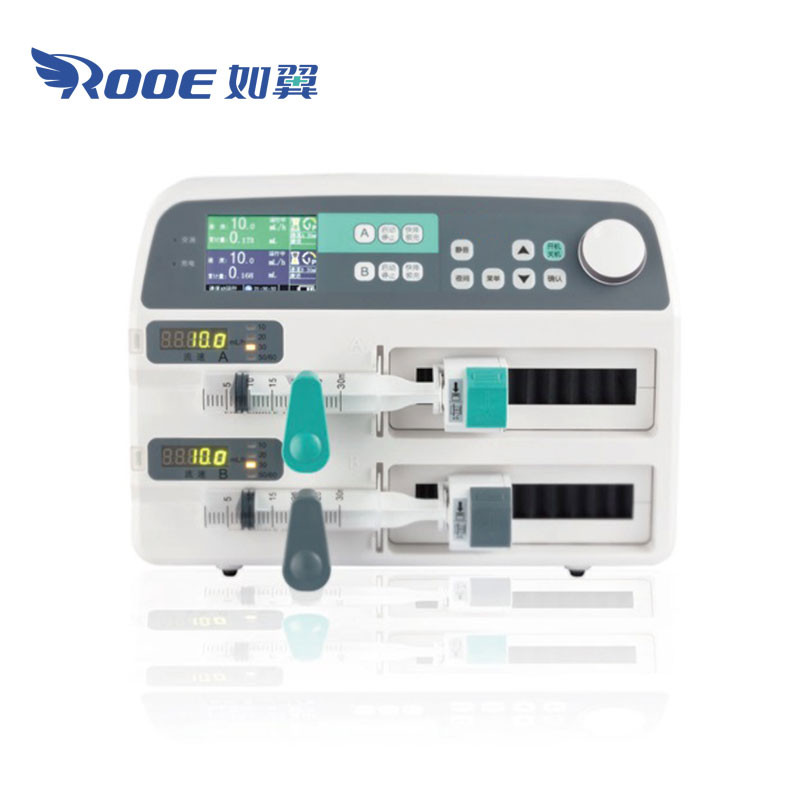

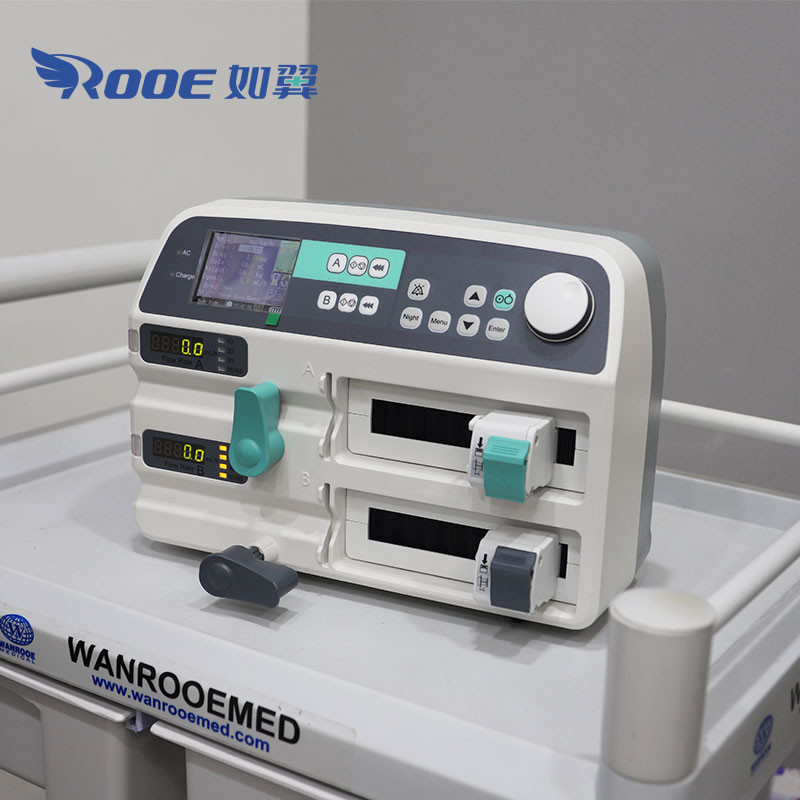

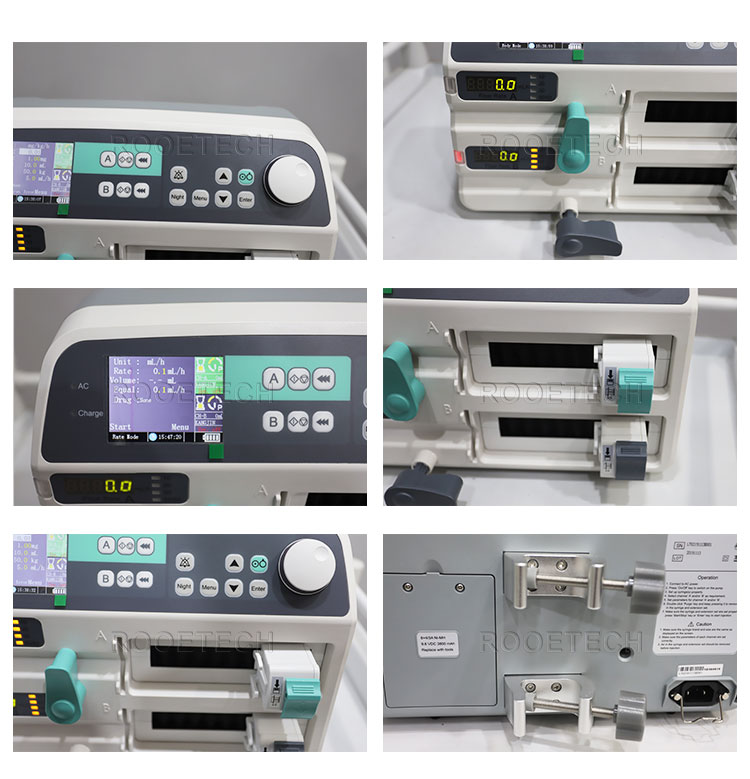

WRSP-702 1000 ML Dual Syringe Pump ICU Medical Syringe Pump

A syringe pump is a pump used to deliver precise and accurate amounts of fluid in high-impact research environments ranging in fields from chemistry to neuroscience. An infusion pump infuses fluids,medication or nutrients into a patient's circulatory system.It is generally used intravenously,although subcutaneous,arterial and epidural infusions are occasionally used.

Get a Quete

1000 ML Dual Syringe Pump ICU Medical Syringe Pump Features:

1. Simple operation mode, one-key start injection;

2.3.2 "TFT color display and digital tube dual display;

3. Support user-defined syringes, applicable to all brands of syringes;

4. Detachable large-capacity battery, the display screen dynamically displays the remaining power in real time;

5. Night mode/power saving mode;

6. Multi-gear adjustable blocking alarm, real-time display of blocking pressure;

7.AB channel adopts two-color mold design, easy to distinguish and avoid misoperation;

Performance advantage:

1. High precision mechanical structure ensures injection accuracy ±2% (mechanical accuracy ≤±1%);

2. Historical records can be stored and viewed by date;

3. External nurse call interface connects to nurse station to improve nurse work efficiency;

4. With hibernation function, single channel operation, power saving and safety;

5. With wireless monitoring function, it can be used in conjunction with infusion information collection system;

Model	WRSP-702
Syringe Size	10, 20, 30, 50/60 ml
Applicable Syringe	Compatible with syringe of any standard
VTBI	0.1-10000 ml < 100 ml in 0.1 ml increments 100 ml in 1 ml increments
Flow Rate	Syringe 10 ml: 0.1-420 ml/h Syringe 20 ml: 0.1-650 ml/h < 100 ml/h in 0.1 ml/h increments Syringe 30 ml: 0.1-1000 ml/h 100 ml/h in 1 ml/h increments Syringe 50/60 ml: 0.1-1600 ml/h
Bolus Rate	Syringe 10 ml: 200-420 ml/h Syringe 20 ml: 300-650 ml/h Syringe 30 ml: 500-1000 ml/h Syringe 50/60 ml: 800-1600 ml/h
Anti-Bolus	Automatic
Accuracy	±2% (mechanical accuracy≤ 1%)
Infusion Mode	Flow rate: ml/min, ml/h Time-based Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc.
KVO Rate	0.1-1 ml/h (in 0.1 ml/h increments)
Alarms	Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm, pressure sensor error, syringe installation error, syringe drop off
Additional Features	Real-time infused volume, automatic power switching, automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory, history log, separate channel alarm, power saving mode
Drug Library	Available
Occlusion Sensitivity	High, Medium, low
Power Supply, AC	110/230V (optional), 50-60 Hz, 20VA
Battery	9.6?1.6V, rechargeable
Battery Life	Power saving mode at 5 ml/h 10 hours for single channel 7 hours for double channel
Working Temperature	5-40℃
Relative Humidity	20-90%
Atmospheric Pressure	860-1060hpa
Size	330125225 mm
Weight	4.5kg
Safety Classification	ClassⅡ, type CF
