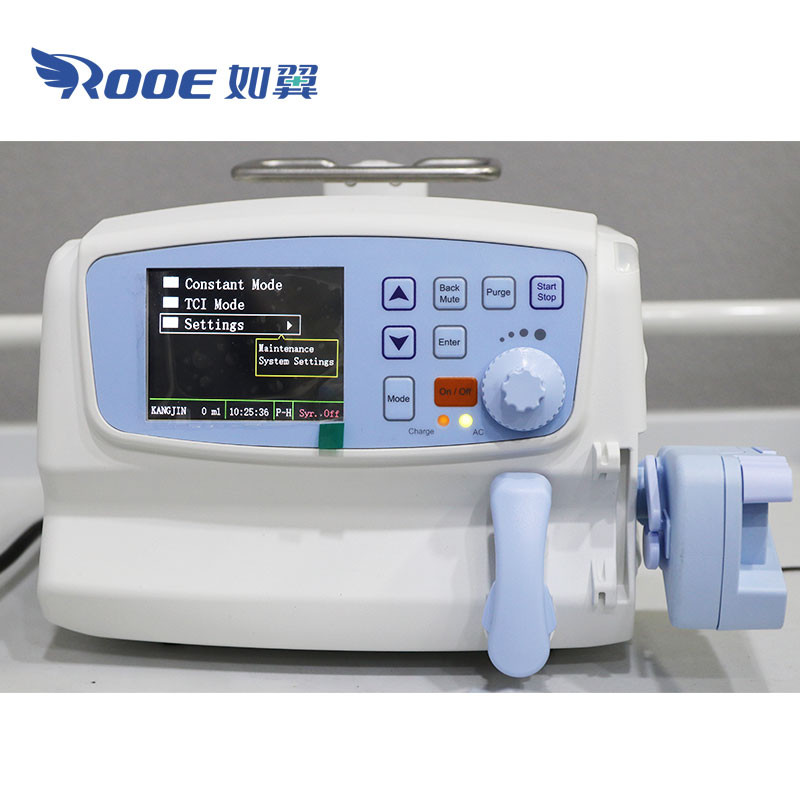

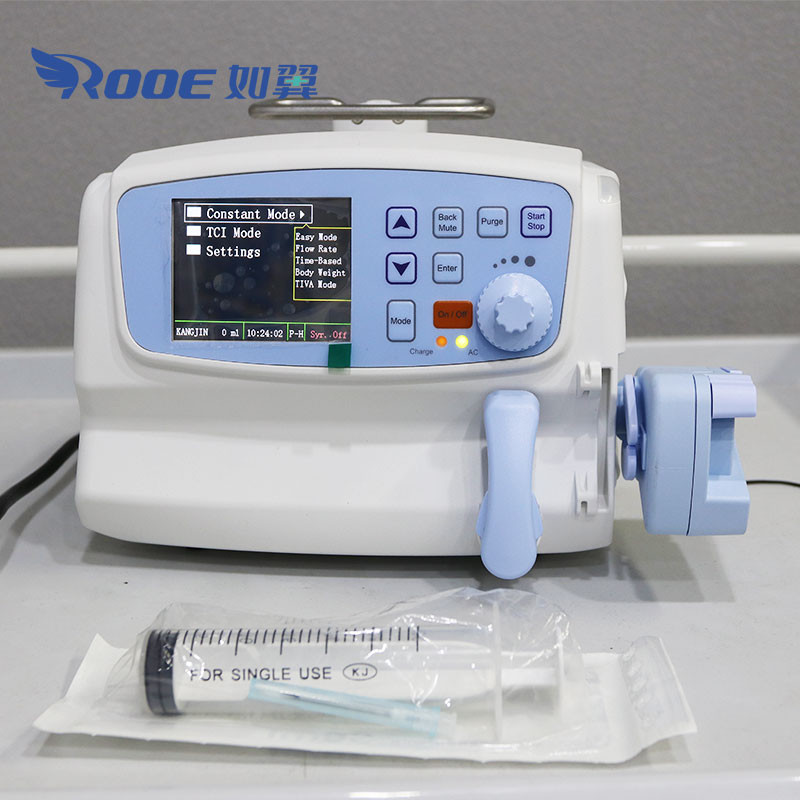

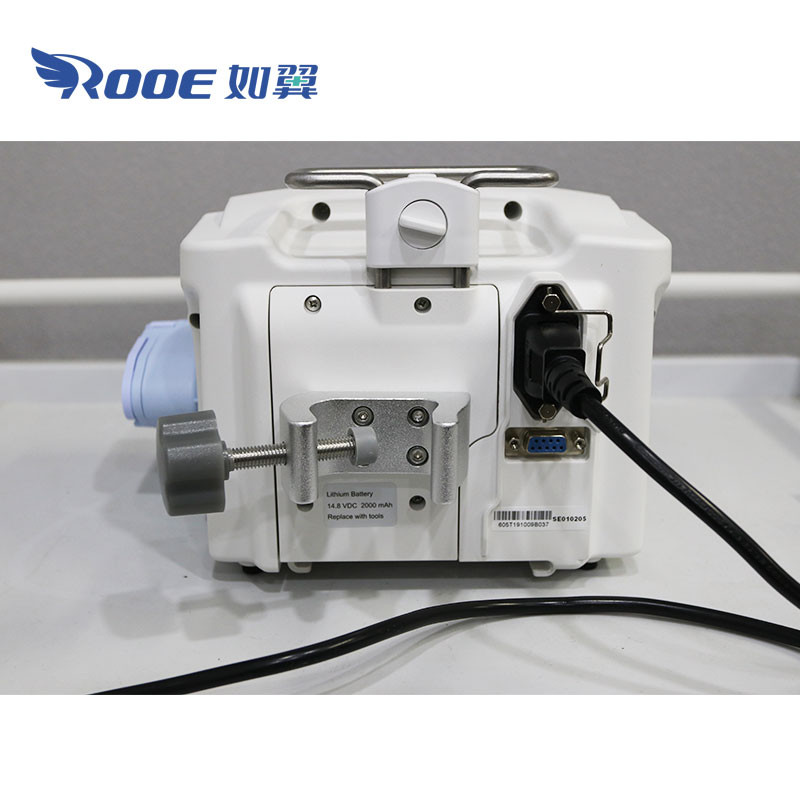

WRSP-605T Target Controlled Infusion Pump TCI Electric Syringe Pump

1. Applicable Syringe: 10, 20, 30, 50/60 ml 2. 0.01 ml/h Increments for flow rate, bolus rate,KVO rate 3. Wireless Management

Target Controlled Infusion Pump TCI Electric Syringe Pump Features：

1. Selection of the induction method and setting of the target concentration according to the basic parameters of the patient;

2. Selection of the site of target control, plasma target control or effect chamber target control;

3. Adjusting the target concentration according to the anaesthetic effect

4. Adjusting the dose according to the duration of the operation.

5. Six modes of administration: simple mode, speed mode, time-dose mode, weight mode, plasma target control, effect chamber target control;

6. Three induction modes: rapid induction, step induction and smooth induction, in line with clinical dosing habits;

7. High-resolution colour screen with adjustable backlight;

8. Multi-position adjustable blocking pressure;

9. Keyboard can be locked during operation, real-time display of parameters during operation;

10. Target-controlled syringe pump can be combined with DPS function.

Model	WRSP-605T
Syringe Size	10, 20, 30, 50/60 ml
Applicable Syringe	Compatible with syringe of any standard
VTBI	1-1000ml( in 0.1, 1, 10 ml increments)
Flow Rate	Syringe 5 ml: 0.1-100 ml/h ( in 0.1, 1, 10 ml/h increments)
	Syringe 10 ml: 0.1-300 ml/h
	Syringe 20 ml: 0.1-600 ml/h
	Syringe 30 ml: 0.1-800 ml/h
	Syringe 50/60 ml: 0.1-1200 ml/h
Bolus Rate	Syringe 5 ml: 0.1-100 ml/h ( in 0.1, 1, 10 ml/h increments)
	Syringe 10 ml: 0.1-300 ml/h
	Syringe 20 ml: 0.1-600 ml/h
	Syringe 30 ml: 0.1-800 ml/h
	Syringe 50/60 ml: 0.1-1200 ml/h
Anti-Bolus	Automatic
Accuracy	±2%(mechanical accuracy 1%)
Infusion Mode	Flow rate: ml/min, ml/h
	Time-based
	Body weight
KVO Rate	0.1-1 ml/h (in 0.01 ml/h increments)
Alarms	Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm, pressure sensor error, syringe installation error, syringe drop off
Additional Features	Real-time infused volume, automatic power switching, automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory, history log
Drug Library	Available
Occlusion Sensitivity	High, medium, low
History log	50000 events
Power Supply, AC	110/230V (optional), 50-60 Hz, 20VA
Battery	14.8V, rechargeable
Battery Life	8 hours at 5 ml/h
Working Temperature	5-40℃
Relative Humidity	20-90%
Atmospheric Pressure	700-1060hpa
Size	245120115 mm
Weight	2.5kg
Safety Classification	Class Ⅱ, type BF
