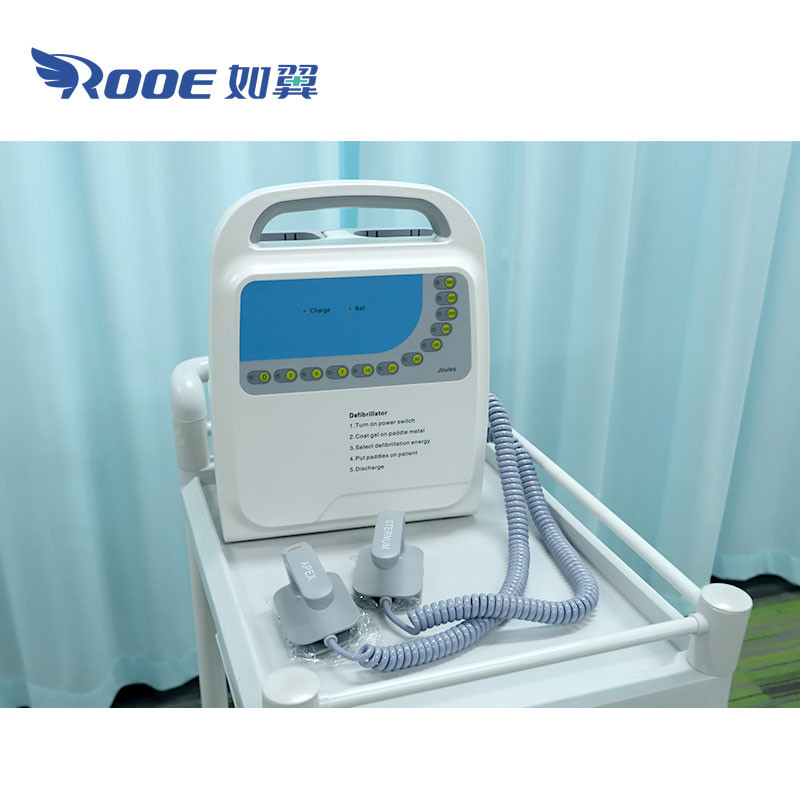

Portable Cardiac Defibrillator Paddle Type AED Machine Description：
Defi7 portable cardiac defibrillator is a compact, durable, light weighted defibrillator Asynchronous outer defibrillation, Audible and visible reminders comes with sine wave: monophasic and options for Biphasic technology.
The portable aed machine is a medical device that uses a strong pulse current to pass through the heart to eliminate arrhythmia and restore sinus rhythm. It is a necessary first aid equipment in the operating room. For performing Aed Equipment is a compact and durable lightweight defibrillator with integrated manual defibrillation. Defibrillator Paddles are professional single-phase defibrillator monitors for hospitals and clinics, with optional dual phases. Portable defibrillator Aed has strong power capacity, and batteries that support continuous monitoring and shock during transport for long periods of time, without the need for external power. Aed defibrillator effective IT solutions avoid manual writing, improve efficiency and reduce the workload of clinical staff.
Portable Cardiac Defibrillator Paddle Type AED Machine Features：
Technical specifications
(1) Defibrillator type: Manual, Synchronized, A synchronized
(2) Output waveform: Monophonic technology /Biphasic technology (optional)
(3) Energy accuracy: +1%
(4) Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)
(5) Charging time: Maximum 8 seconds to 360 Joules
(6) Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)
Power requirements
(a) AC Power supply: 110V, 60 Hz /220V, 50 Hz
(b) Vehicle Voltage: DC 12V
Internal Battery Backup
(1) Battery type: Rechargeable lead-acid battery/ lithium battery (optional)
(2) Charging time: Time-Minimum of 4 hours for full charging
(3) Battery charging: During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication: Red LED
(5) Battery Capacity: 100% of the battery will provide 120 min of monitoring; and 30 discharges at 360 joules.

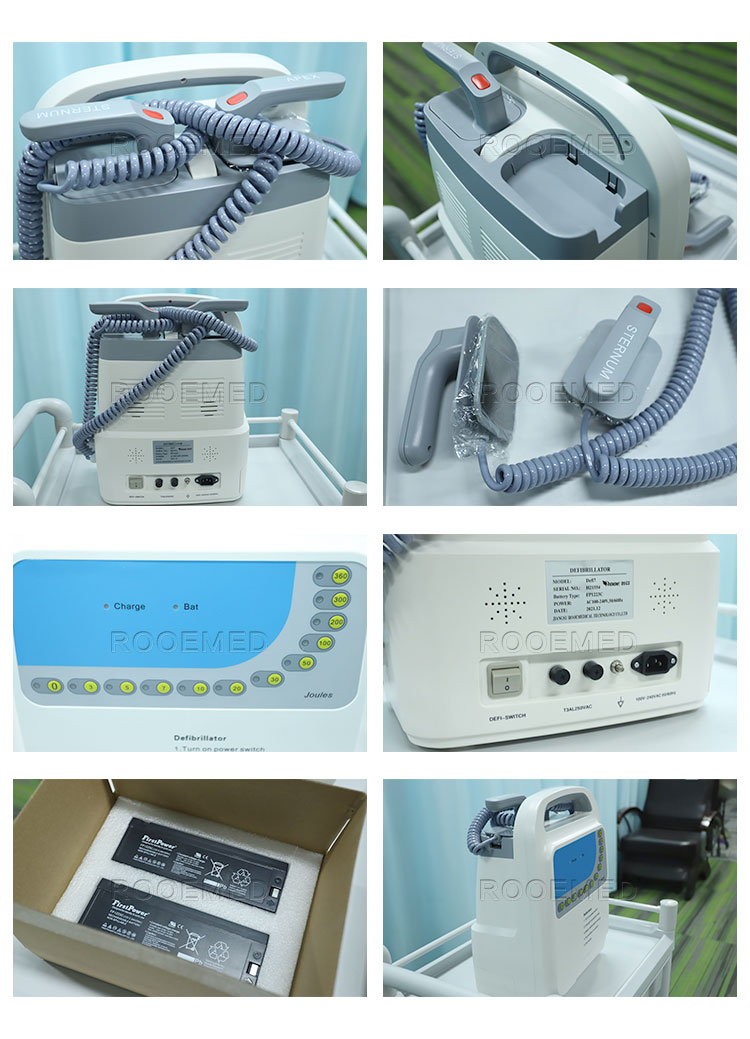

Clear Button
(1) CLEAR BUTTON Clear the energy selection and discharge the energy by inside circuit.
(2) CHARGE To indicate charging process for the defibrillator battery. The lamp went out if full capacity.
(3) BATTERY INDICATOR To show the DC work of inner battery.
(4) DEFIBRILLATING ENERGY INDICATOR
(5) ENERGY SELECTOR To select the energy of the heart defibrillating treatment.
