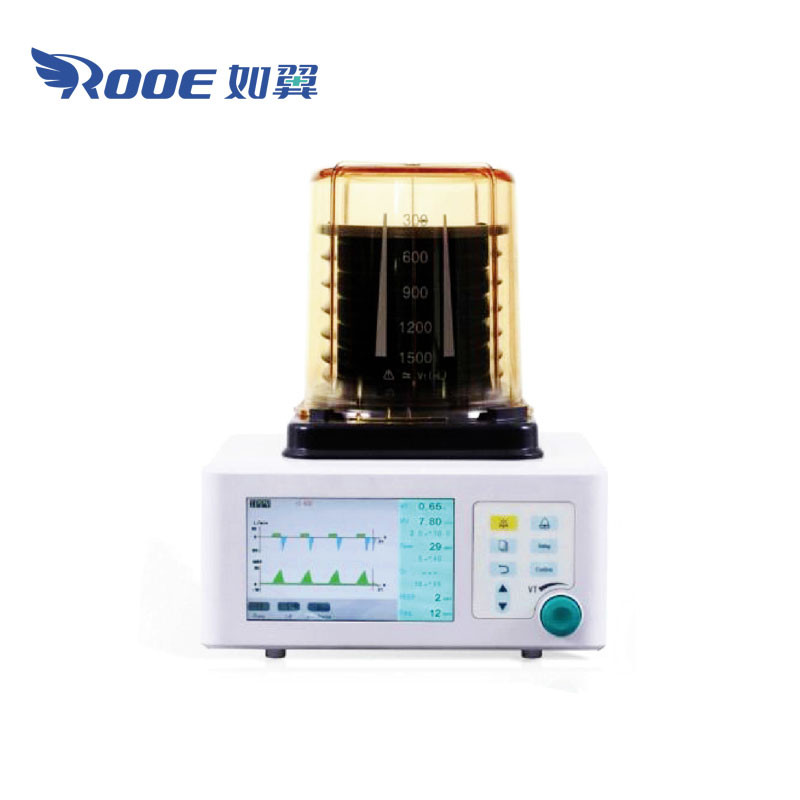

AV-1010 Hospital Lung Ventilator Respiratory SIMV Rate Ventilator Life Support

Dimensions:

43cm*38cm*49cm

Weight:

10kg

Working type:

Electronically controlled, pneumatic driven

Patient type:

Pediatric, Adult

Ventilation mode:

IPPV, SIMV, MANUAL(BAG)

Tidal volume:

40-1500ml

l:E ratio:

4:1-1:8

Frequency:

Adjustment range:

1-100bpm

Under IPPV and Manual mode:

4~65bpm

Under SIMV:

1-40bpm

Monitoring:

VT, MV, BPM, Paw, FiO2, PEEP, Respiratory Frequency, l:E ratio, Ppeak

Waveform:

Pressure- time, Flow- time

Power:

AC 220V±10%, 50HZ±2%, built-in battery > 2hrs(rechargeable) 12V

Inspiratory time (Tl) (at SIMV)

Adjustment range:0.2 s 〜6.0 s (the limit of l:E ratio< 4)

Pressure trigger:

—20 cmH20 〜0 cmH20

Pressure limit:

Patient airway pressure range:

-2KPa 〜10KPa

Airway pressure monitoring range:

0〜10KPa

Safety valve pressure limit:

6Kpa

Alarm:

High(low) pressure alarm, High(Low) MV alarm, AC power lost alarm

Accessories:

Oxygen sensor

Silicon tubes (reusable)

Tidal volume sampling sensor

Oxygen high pressure hose
