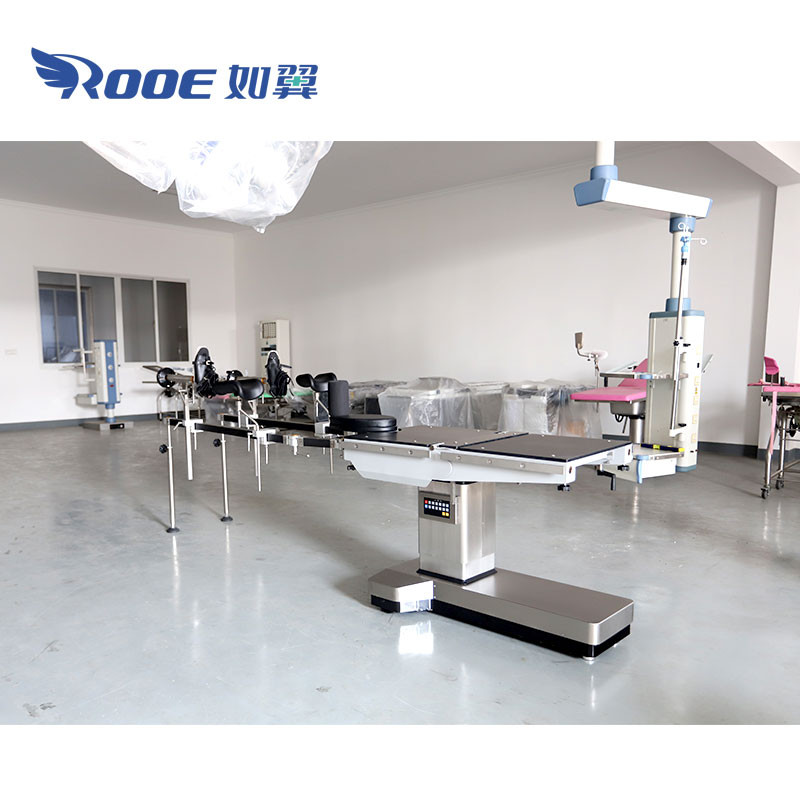

AOTA202 Carbon Fiber Orthopedic Extension Traction Frame

The new technologies convert stainless steel to carbon fiber materials, you can do full X-ray, no excessive moving traction racks in surgery, saving surgical time, safer surgery. Now more and more orthopedic operating rooms begin to purchase carbon fiber traction frames, even replace the original stainless steel traction frame, in the future, almost every operating room has carbon fiber traction.

Get a Quete

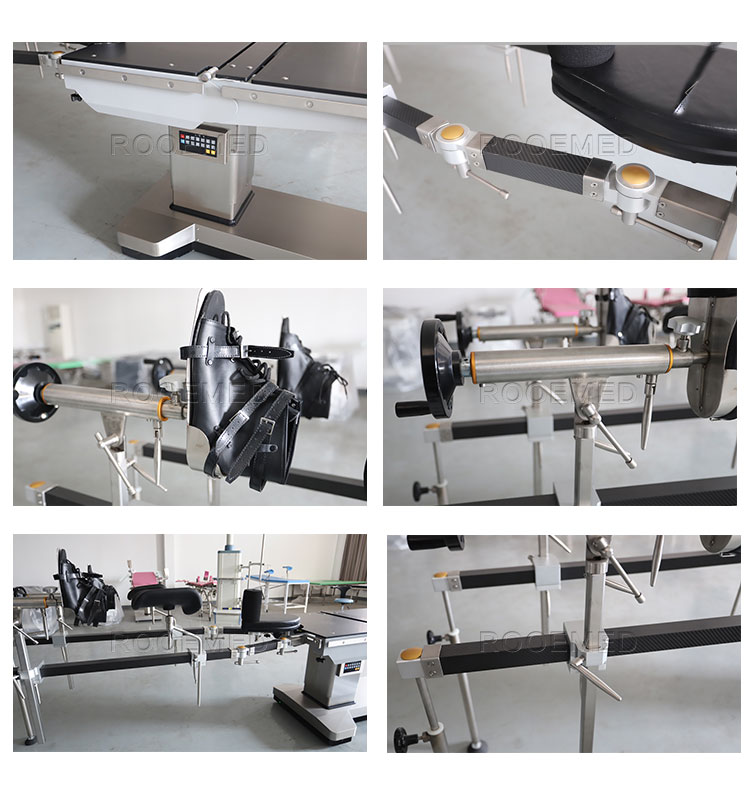

Carbon Fiber Orthopedic Extension Traction Frame Description:

The orthopedic extension traction frame should be used with the operating table. Role of orthopedic traction frame In the process of surgery, the use of frame can enable patients to achieve good reduction effect by adjusting the traction device under c-arm fluoroscopy, and it is not easy to change posture, which is conducive to the progress of operation.

Carbon Fiber Orthopedic Extension Traction Frame Features:

1. This orthopedic operating table can be used with the company's operating table.

2. The main material is carbon fiber and is used for C-arm imagining, and any position is no blind.

3. The traction mechanism has a scale display that can accurately reflect the traction stroke, which is convenient for the doctor.

4. Our frame is used in trauma surgery, which can improve the quality of surgery.

Basic parameters：
The horizontal opening Angle of the rotary arm on the orthopedic operating table	≥60°
The horizontal movement range S1 of the leg bracket	≥550mm
Traction stroke S	≥180mm
The horizontal movement range of the orthopedic operating table S2	≥400mm
Vertical Angle adjustment range of traction mechanism R	50°~140°
Size:
Length	1300 mm
Width	300 mm
Height	850 mm
