AOTA306 non-universal surgical skull clamp is a high-end fixation device designed for neurosurgery, orthopedics and other surgeries. It is made of imported aluminum-magnesium alloy and has both lightweight and high strength characteristics.
AOTA306 non-universal surgical skull clamp is a high-end fixation device designed for neurosurgery, orthopedics and other surgeries. It is made of imported aluminum-magnesium alloy and has both lightweight and high strength characteristics. Its multi-dimensional adjustment function, stable locking system and humanized design can meet the precise fixation needs of various surgical positions such as supine, prone, side-lying, sitting, etc. It is suitable for various brands of operating tables and significantly improves surgical safety and operating efficiency.
 |  |
Lightweight and durable
-Material: Imported aluminum-magnesium alloy is milled as a whole, with high density and no rust. The matte surface is anti-corrosive and anti-aging.
-Weight: The lightweight design reduces the burden of medical operation and ensures long-term use without deformation.
Multi-function adjustment

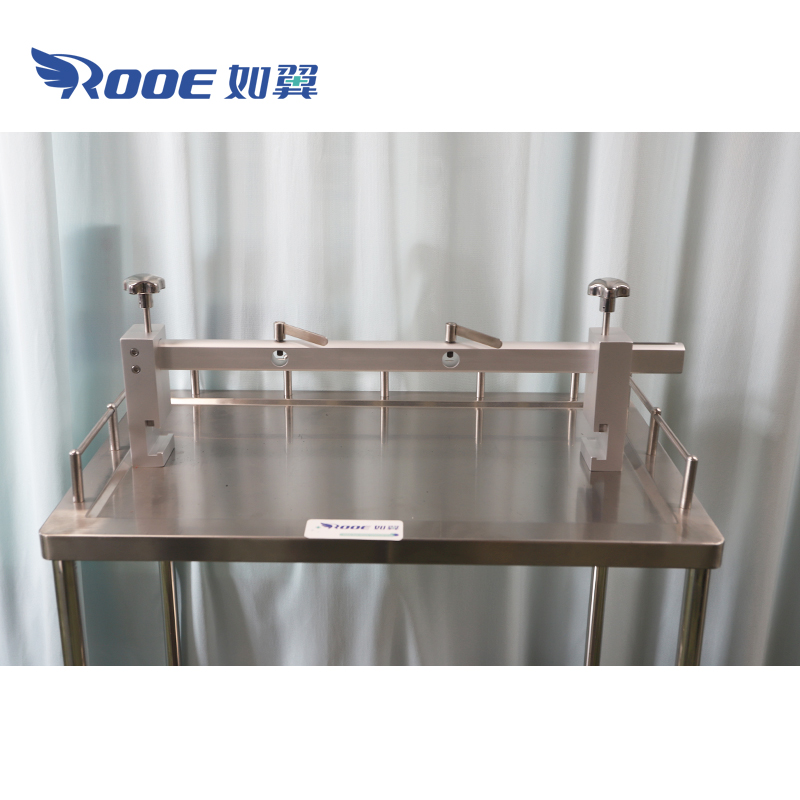

-Base adjustment: rod spacing (165-600mm), lifting amount (850mm±50mm), front and rear movement (400mm), left and right movement (450mm), swing angle ≥80°, suitable for different operating tables.
-Multi-axis linkage: 360° horizontal rotation, 120° fan-shaped rotation, 90° lateral position fixation, supporting flexible adjustment during surgery. Stainless steel threaded interface, locking handle knob design.
Stable fixation system

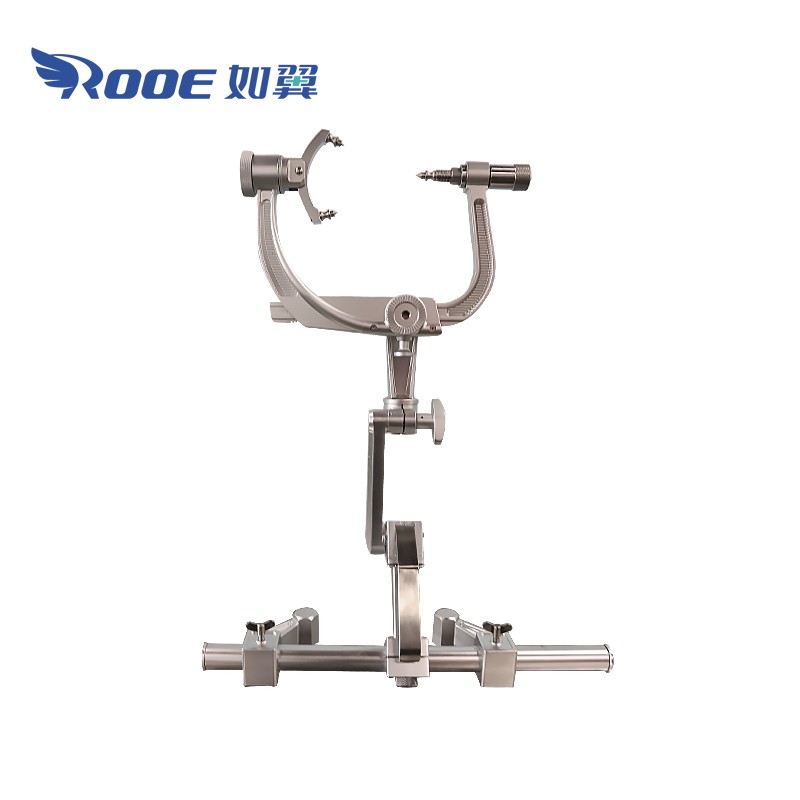

-U-shaped head clamp: three nails are distributed in an isosceles triangle for synchronous pressure application, and the double-arch streamline design disperses stress. There is no gap shaking after locking, and it supports fine-tuning during surgery.
-Head nail design: pressure scale display, parallel insertion to prevent rotation, platform to prevent over-penetration, suitable for adults/children (hardness HRC40-48).
Safety and comfort
-Insulation and leakage prevention: the base is completely insulated from the operating table to ensure electrical safety.

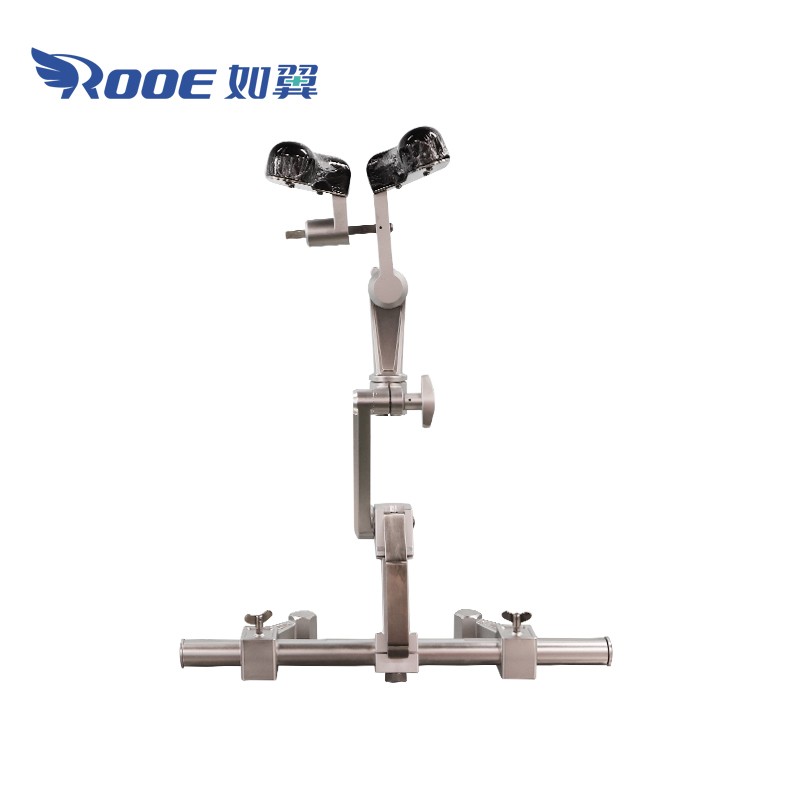

-Horseshoe headrest: soft silicone material, adjustable size, smooth surface to reduce tissue damage (optional imported gel cushion).
Compatibility and scalability

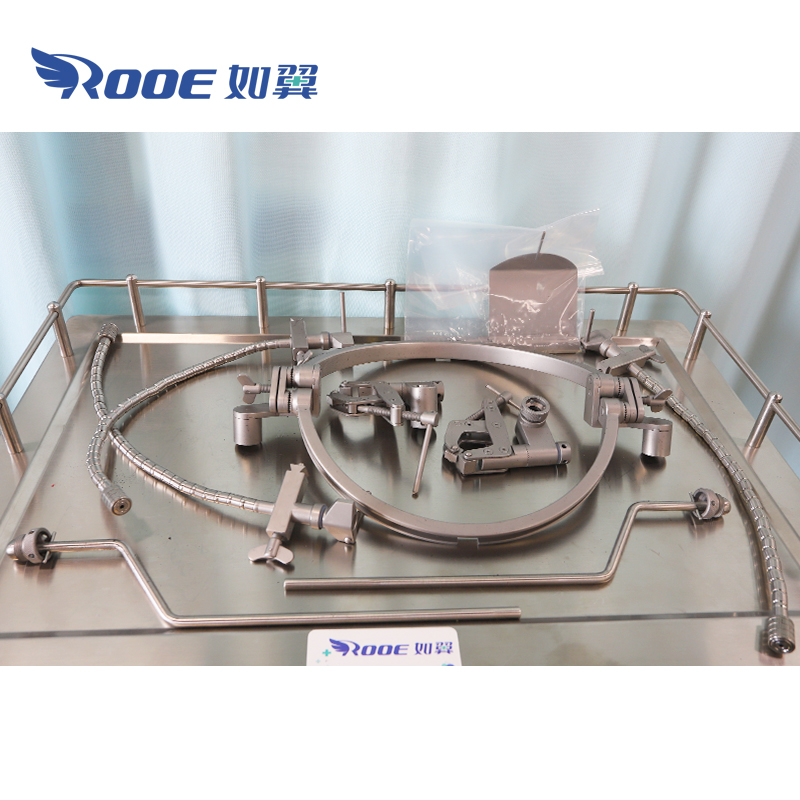

Support connection to stereotactic navigation coordinate interface, configurable planetary gear connector, seamlessly matched with various retraction systems. Optional adjustable size gel cushion
 |  |  |
Application
-Neurosurgery: Craniotomy, deep brain electrode implantation and other scenarios that require high-precision fixation.
-Orthopedics: Posture stability requirements in cervical and spinal surgeries.
-Multi-department expansion: Suitable for complex surgical positions such as supine, prone, side-lying, and sitting.
Optional accessories
Imported gel cushion (enhanced headrest comfort).
Planetary gear connector (expanded stereotactic navigation function).
Model | ||||
AOTA306 Surgical Skull Clamp | ||||
Base | ||||
End arm spacing | length | Lifting range | Range of movement | Swing angle |
165-600mm | 500mm | 850±50mm | Front and rear 400mm | ≥80° |
Left and right 450mm | ||||
Universal connecting rod | U-shaped head clamp | |||
Rotation Angle | Minimum spacing | Rotation Angle | ||
Horizontal 360° | ||||
Vertical 120° | 65mm | 360° rotation | ||
Fixed 90° | ≥180° swing | |||
