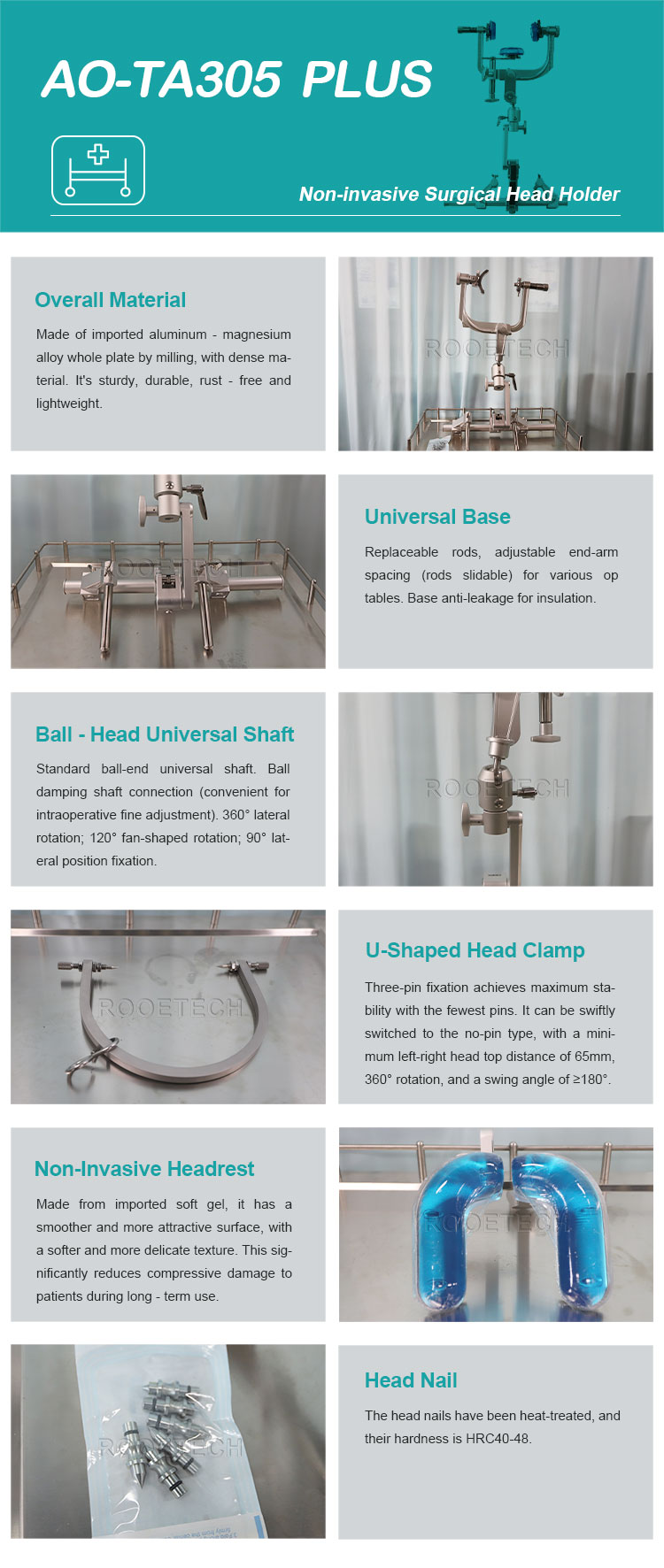

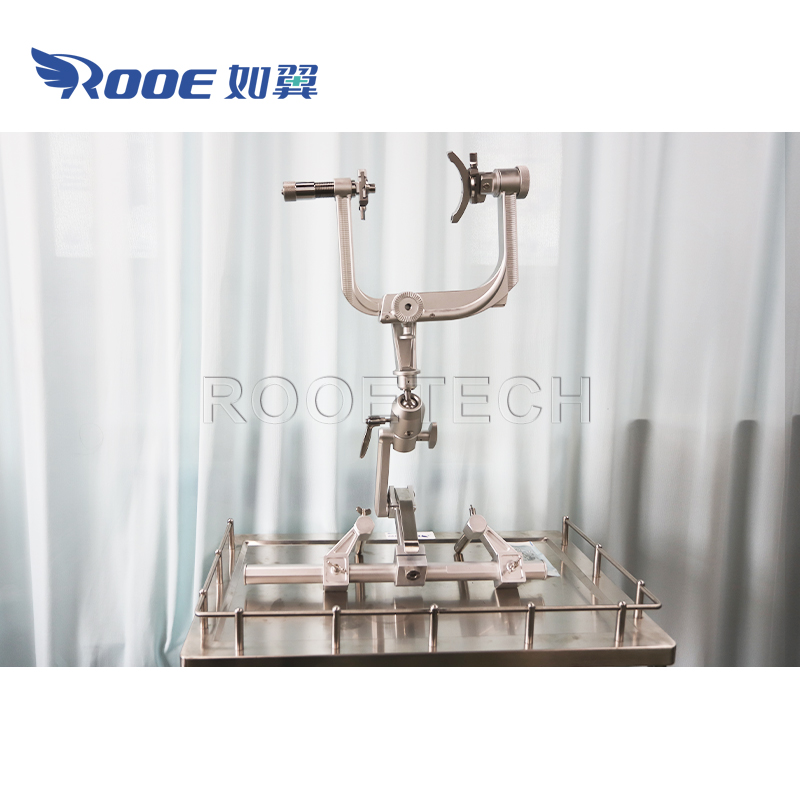

The non-destructive surgical head frame is a high-end fixation device specially designed for neurosurgery, orthopedics and various complex surgeries.
The non-destructive surgical head frame is a high-end fixation device specially designed for neurosurgery, orthopedics and various complex surgeries. The product is made of imported aluminum-magnesium alloy and manufactured through an overall milling process, which not only ensures the lightness of the equipment, but also ensures high strength and durability. It is suitable for various surgical positions such as supine, prone, side-lying and sitting, and fully meets the needs of various surgical environments.
 |  |  |
1. Non-damage fixation solution

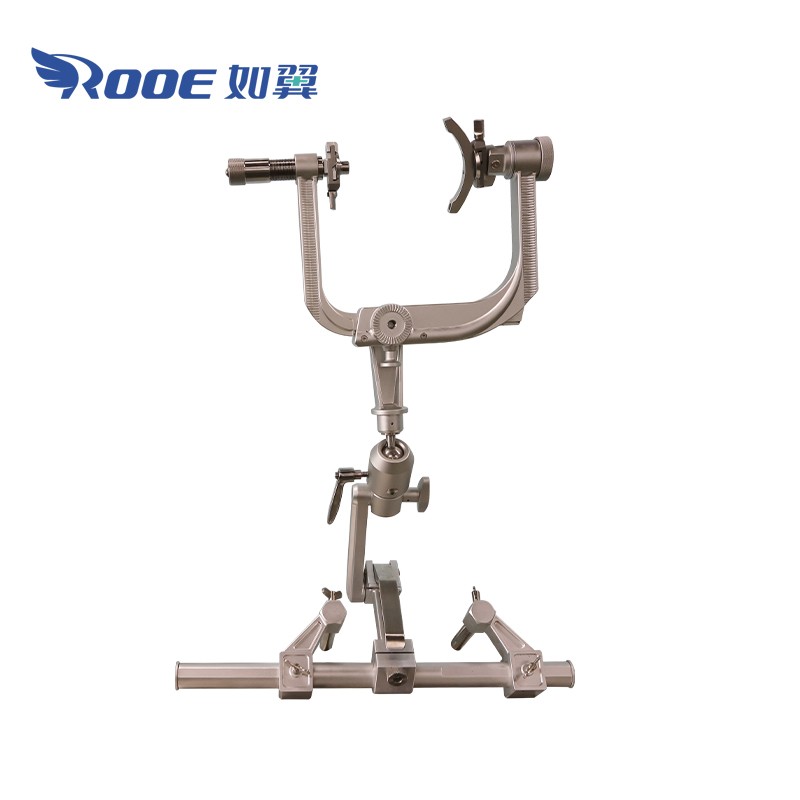

Adopting the original non-damage fixation technology, the equipment is equipped with a soft gel head support and a three-pin synchronous pressure structure. The U-shaped three-pin head clamp is arranged in an isosceles triangle, which can not only achieve efficient fixation, but also quickly switch to a soft gel tray to prevent damage caused by scalp penetration. In addition, the intelligent pressure adjustment head pin is equipped with a scale display and an anti-puncture platform to ensure that it is suitable for adults and children. The hardness of the head pin is controlled within the range of HRC40-48 to ensure penetration safety.
2. High-strength and lightweight materials
Imported aluminum-magnesium alloy is selected. After overall milling, the equipment performs well in density, corrosion resistance and anti-aging. The surface adopts a brushed process to effectively improve the wear resistance and provide a solid guarantee for long-term use.
3. Multi-dimensional adjustment system
Equipped with flexible universal adjustment mechanism, including:
-Multifunctional base: The distance between the plug rods is adjustable (165-600mm), which can adapt to various operating tables; the equipment has a lifting range of 850mm±50mm, a forward and backward movement of 400mm, a left and right movement of 450mm, and a swing angle of ≥80°, which can meet the needs of multi-angle adjustment.
-Ball head universal shaft: supports 360° rotation, 120° fan-shaped swing and 90° tilt fixation, built-in spring lock and single handle locking design, making intraoperative fine-tuning convenient and stable.
4. Comfort design

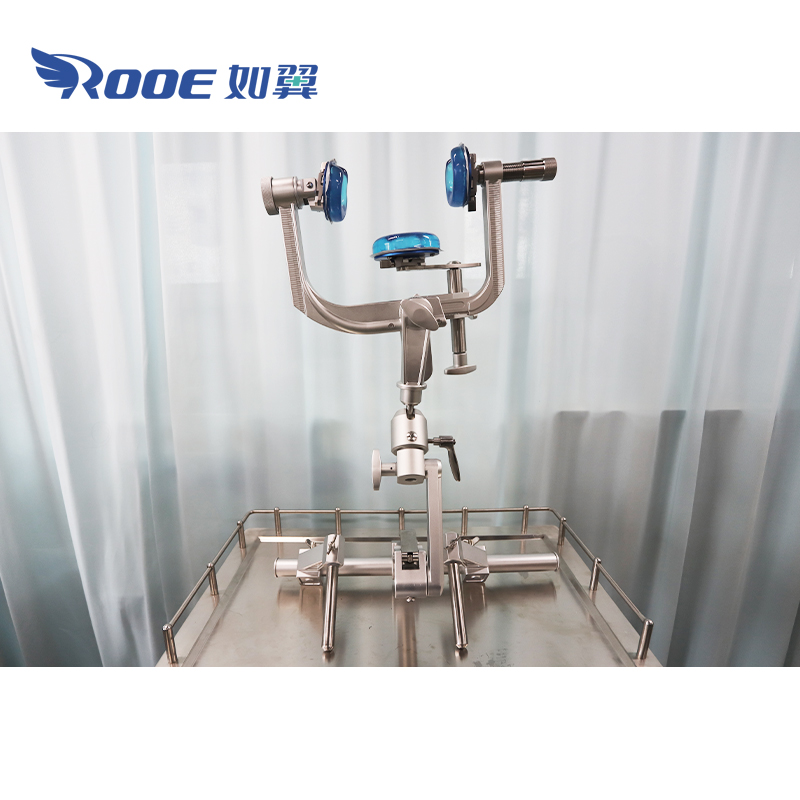

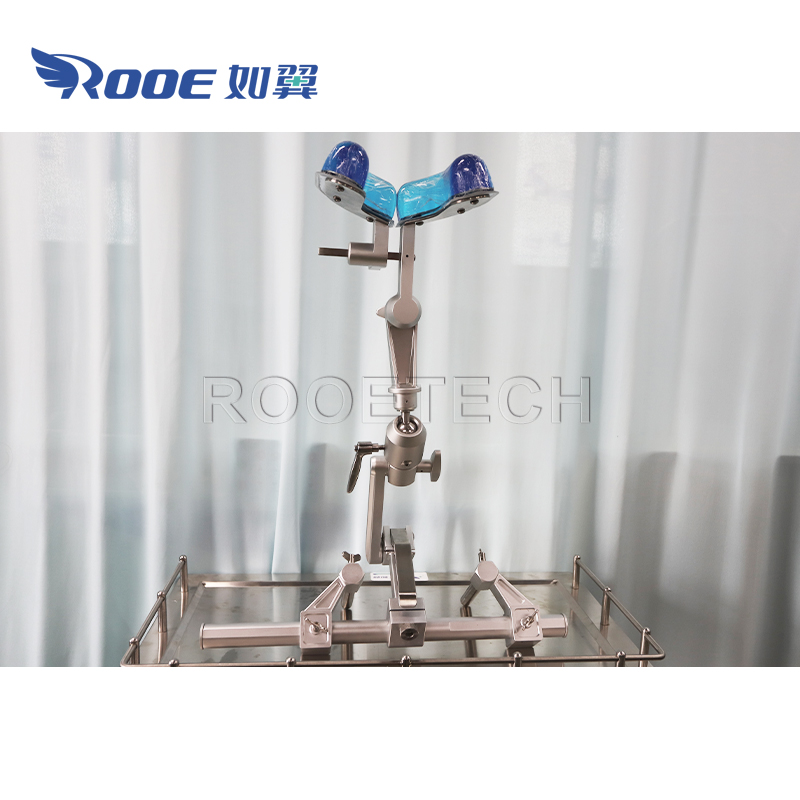

The headrest and head clamp are made of imported soft gel material, with a smooth and delicate surface. They can effectively reduce the damage to patients under long-term compression and significantly improve the patient's intraoperative comfort experience.
5. Compatibility and expansion
The equipment is equipped with a stereo positioning navigation coordinate interface as standard, and can be connected to a planetary gear connector, which is compatible with mainstream retraction systems and navigation equipment to ensure accurate positioning and operation during surgery.
