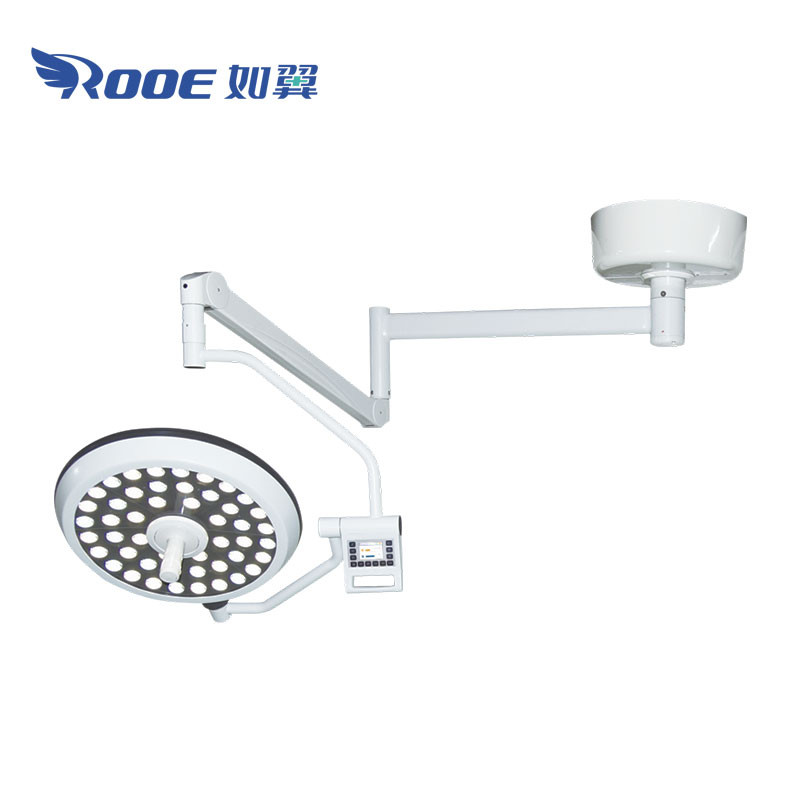

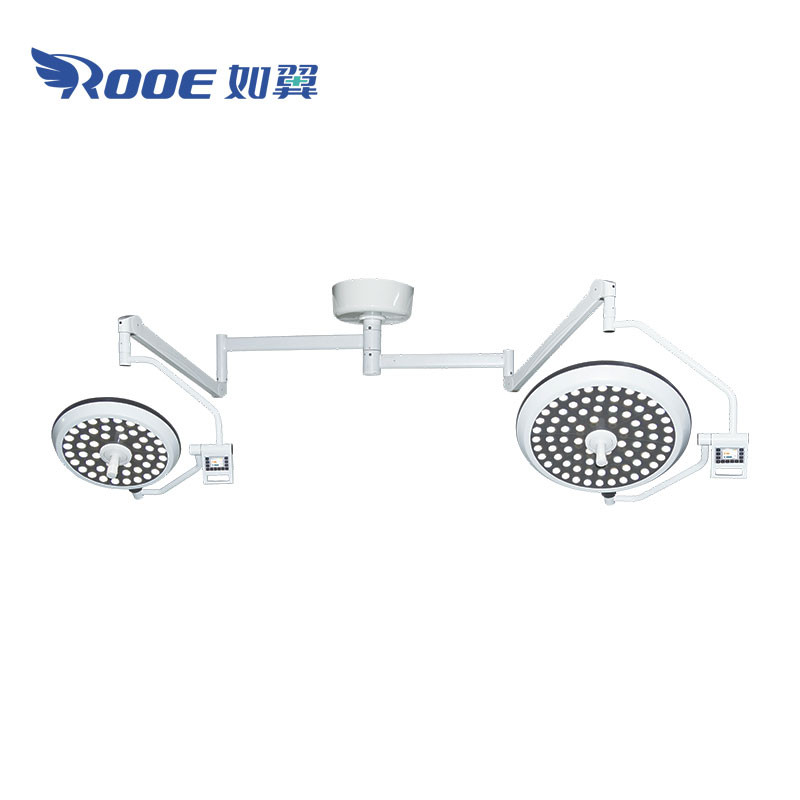

AKL-700D/500D/500D(L) Ceiling Mounted Operating Light Double Dome Surgery Room Lights OT Lamp

Ceiling Mounted Operating Light Surgery Room Lights OT Lamp Description：

In the surgical field, because ceiling mounted operating light provides highlight intensity of the entire area, it allows appropriate visibility. This combines with the surgical operating light  stabilized arm suspension system to provide height and angle adjustments. Shots in surgery room lights avoid damages due to disinfection, easy to clean. In addition, this equipment is fully integrated with simple mechanical focus handles, and can be removed and fixed as required. Simple We are in line with ergonomic sterile operations, allowing the operation team to simply and flexibly control all functions. double dome light is durable and almost unlimited LED expected life provides huge product reliability and investment protection. OT lamp efficiency: Low-power and durable LEDs can minimize the impact on our valuable resources.
Ceiling Mounted Operating Light Double Dome Light OT Lamp Features：

Three lighting modes

1. Three modes can be used for lighting requirements in various surgical scenarios: standard mode, endoscopic mode and low-light mode

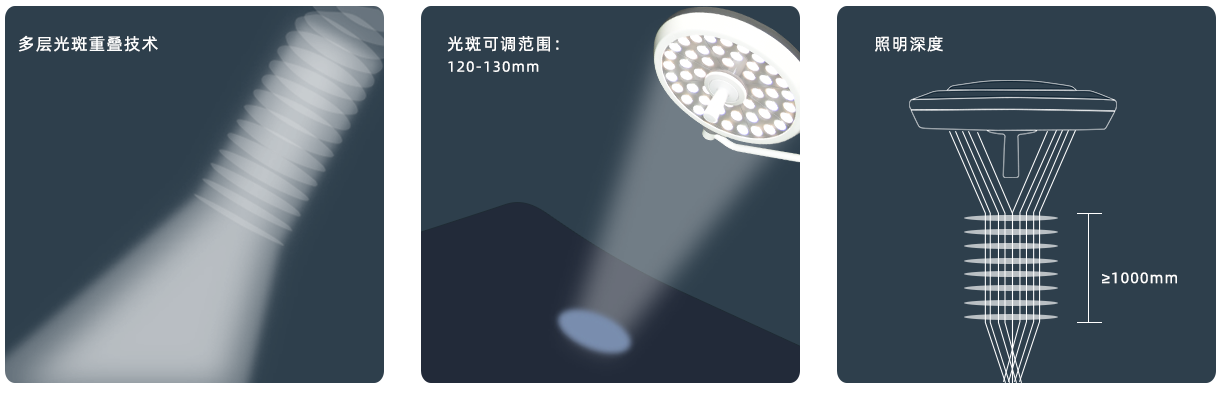

Uniformly adjustable light spot technology

1. Multi-layer spot overlapping technology, central focusing device, clear operation field

Excellent light component design

1. The lamp holder adopts 80/48 LED lamp beads, which are divided into multiple light source groups

2. Each group of light source is controlled by CPU separately, and the failure of any group does not affect its overall use

3. Excellent concentrating technology (lens focusing Angle is appropriate), greatly improving the light efficiency

4. The internal light source module uses ABS engineering plastic skeleton + aluminum substrate structure, good heat dissipation effect, lighter weight

Easy to use color and brightness adjustment

1. Color rendering index ≥92, restore true color

2. With PWM non-pole dimming to meet the brightness requirements of different operations

3. Reasonable collocation and distribution of high and low color temperature lamp beads to achieve adjustable color temperature of 4000-5000K

Simple control, flexible and practical

1. Soft and slow light, suitable for eye protection

2. 1.77 inch knob controller, easy to operate and easy to use

3. Multiple models of controllers are available for selection, bringing you more choices

Novel structure design, convenient operation

1. Shadowless lamp balance system adopts square arm, lamp head can be vertically pulled down, convenient rotation, free adjustment

2. 8-angle connecting focusing component, built-in buckle 360° removable design, flexible and can do high temperature and high pressure disinfection 134℃

Double lamp cap mutual control technology (optional)

1. The controllers of two lamp caps can control each other's color temperature, cavity mirror, camera and so on

HD camera system (optional)

1. Shadowless lamp can be equipped with central or external camera system

2. Adopt high frequency pulse width dimming technology to perfectly solve the stroboscopic problem of the camera system

3. Remote consultation, large screen conference, remote teaching, etc., can be realized through the Internet, and real-time recording of surgery can also be made

Gesture sensing (optional)

1. Through the sensor to detect gestures, can achieve non-contact brightness adjustment, convenient and fast

Shading compensation (optional)

1. Humanized intelligent shading compensation technology

2. When the doctor's head blocks part of the light source, the brightness of the light source in other areas will increase automatically to ensure the brightness of the surgical field

Handheld Wireless Remote control (optional)

1. Adopt LoRa modulation technology, encrypt wireless transmission, safe and reliable

2. Transmission distance is not less than 20 meters, shadowless lamp remote control can be realized

Apply to

■ Abdominal/General surgery

■ Gynaecology

■ Cardiac/vascular/thoracic surgery

■ Neurosurgery

■ Orthopaedic

■ Trauma department/emergency department OR

■ Urology/TURP

■ Otolaryngology/Ophthalmology

■ Endoscopic angiography
