1.Servo Control Mode: air temp, skin temp;
2.Instant Parameter Displaying: set temp, air temp ,skin temp, heater power rate;
3.Audible & Visual Alarms: power failure, sensor failure, higher & lower temp, air& skin temp override, fan failure, system failure;

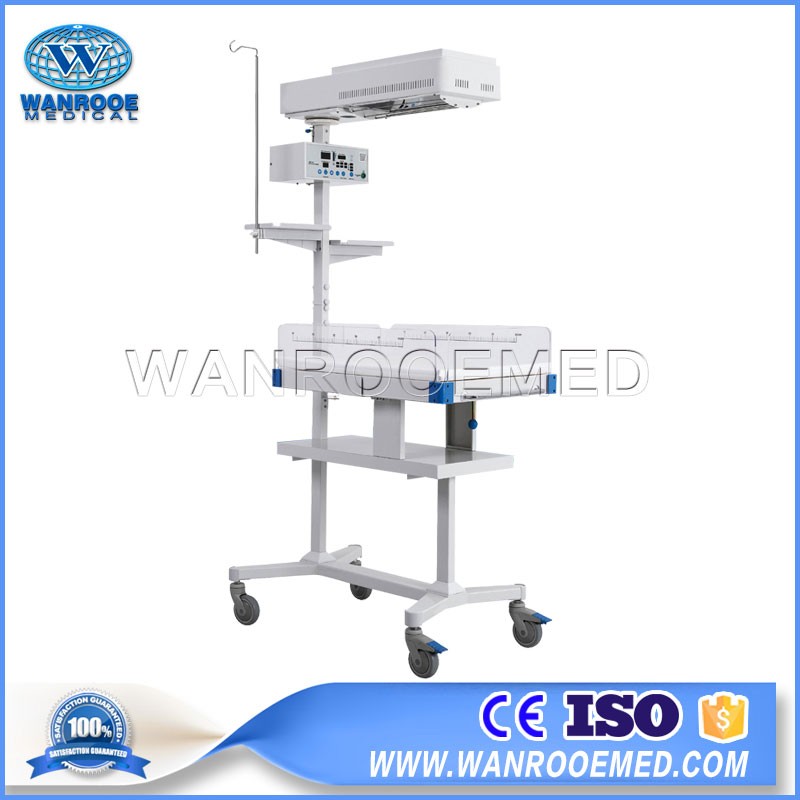

HB102 Hospital Care Equipment Newborn Baby Infant Radiant Warmer
Features:
1.Servo Control Mode: air temp, skin temp;
2.Instant Parameter Displaying: set temp, air temp ,skin temp, heater power rate;
3.Audible & Visual Alarms: power failure, sensor failure, higher & lower temp, air& skin temp override, fan failure, system failure;
4.>37℃ Preset Mode: power failure reset memory, alarm silence, keypad lock, self-test function;
5.Hood with dual slope: 6 hand-ports; left & right cabinets, top-shelf;
6.RS-232 Output Connector (Use for network system ).
7.Export model: install the guardrail instead of top shelf
HB102 | |
Mattress to Hood | 450mm |
Observation side of hood | Two incline |
Operate port | 6 |
Front access panel | 826*310mm |
Mattress tray size | 630*360mm |
Power supply | ≤400VA |
Temperature controlled by microcomputer | Air and skin temp Air temp |
Air temp control range | 20℃-37℃ |
37℃-39℃ | |
Skin Temp control range | 30℃-37℃ |
37℃-38℃ | |
Skin Temp sensor accuracy | ≤0.3℃ |
Humidity display range | ------------- |
Temperature fluctuation | ≤0.5℃ |
Mattress temperature uniformity | ≤0.8℃ |
Temperature rise time | ≤30min |
Noise level within hood environment | ≤55dB |
Alarms | |
Power failure alarm | Yes |
Fan failure alarm | Yes |
Sensor failure alarm | Yes |
High air temp alarm | +1.5℃ |
Low air tem alarm | -2.5℃ |
High skin temp alarm | +1.0℃ |
Low skin tem alarm | -1.0℃ |
Over air tem alarm | ≤38℃, ≤40℃ |
Over skin tem alarm | ≤38℃, ≤39℃ |
System failure alarm | yes |
Alarm silence function | yes |
Operational condition | |
Environment temperature | +20℃-+30℃ |
Environment relative humidity | 5%-99% |
Environment air velocity of flow | <0.3m/s |
Others | |
RS232 interface | yes |
Railing | yes |
Infant bed tilt adjustment | ±10° step less |
Max load of mattress tray | 10kg |
IV Pole Max load | 2kg |
