MEGA 600 High Frequency Digital Mammography Machine

MEGA 600 High Frequency Digital  Mammography Machine

Application:

Mammography Unit is a X-ray apparatus involving in various advanced technologies, specially designed for the diagnosis of mammary gland diseases. It is sensitive to mammary gland lump, calcification, protuberance and carcinogensis and first-choice apparatus for the image examination of mammary diseases in medical institutes.



Main Parameters:

1. High Frequency High Voltage X-ray generator

Work method : constant pressure High frequency inverter rectification

Cooling mode: advanced solid-state structure

Invert Frequency: >80kHz

nominal output current: 0~100mA

Working range : 20~35kV 10~510mAs

Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs

                    Small Focal Point 20-35kV/10-100mAs

Over-voltage protection, over-current protection , over-power protection , over-heat protection ,

Automatic voltage compensation

High-voltage interlocking device of filament





2. X-ray Tube

Model: IAE C339V

Focal Spot Size: Dual Focus 0.1/0.3mm

Target Material: Molybdenum (Mo)

Port Material: Beryllium (Be)

High-speed anode drive: 2800/1000rpm

Target angle: 10°/15°

Anode Heat Storage: 210kJ (300kHU)

Filtration: Be(0.5mm)

Tube Voltage : 20~35kV

Tube Current : 0~120mA

Tube withstand voltage : £40kV

Filament Voltage : 5.0V

Filament Current : 5.5A



3.Mammography C-arm

Radiographic Stand :

All movement is electric

C-ARM: Vertical Movement: 580mm

Center of electric rotating C-arm, automatic return function by one key

Automatically released after the exposure pressure settings display

Compression flexible stepless speed.

Max. pressure: 200N

Max. travel: 150mm

Rotations Deg:+90°~-90°

SID: 650mm

Electric compressor size :18*24cm (24cm*30cm optional)



4.Specialized Digital Flat Panel Detector for Mammography

The detector size : 18*24 cm  (24cm*30cm optional)

Pixel Matrix : 3072X2560

Pixel Size : 77 um

MTF :when >22% ,the Spatial Resolution ≥ 6.0Lp/mm

DQE： >60% @ 0 cycles/mm

Dynamic Range : 16 bit

Read Time : 2S



5.Housing and movement device

stepless speed regulating range 0～6CM/s

Movement range : 0.5～2CM



6.Standard Detector Image Acquisition Workstation

Image Acquisition Software

Computer Configuration :

3Ghz , Windows system

Memory 3G

Hardware : 1TG

Dicom 3.0

19” Medical Use High Definition Monitor



7. Power Supply

220V±10% 50Hz 6.2kVA

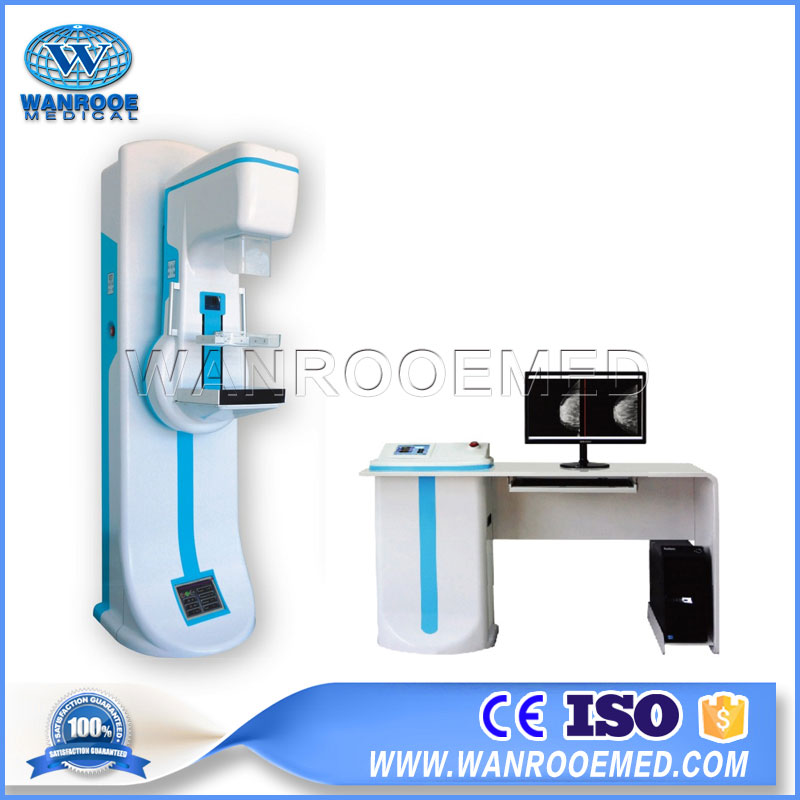

Full field digital mammography







The rotation of the arm

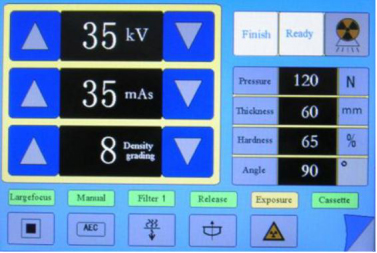

The LCD touch screen on the workstation.

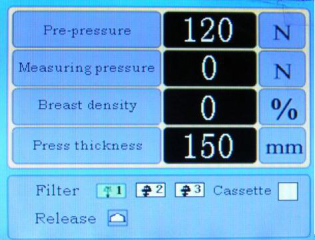

The LCD screen below X-ray tube.

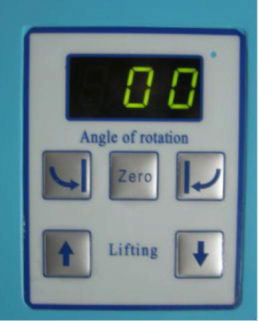

The control of the arm rotation



Sample Films:

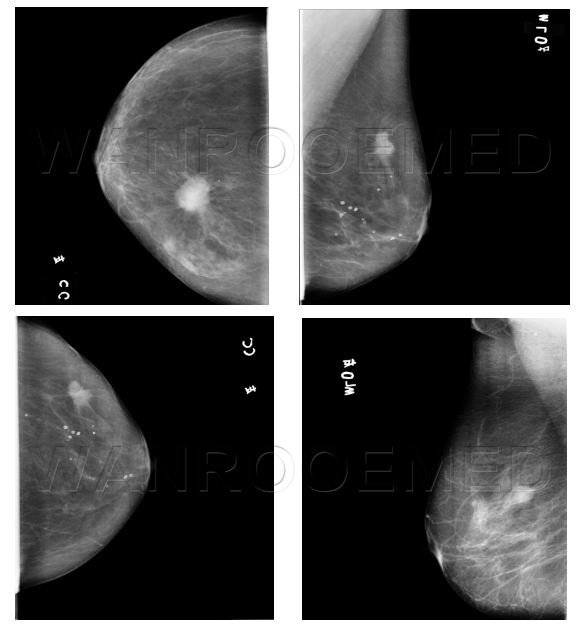

Here is some real pictures taken by our mammography machine.
