Purge when pump stops, bolus when pump starts, adjustable rate at 600-2000 ml/h(in 1, 5, 10 ml/h increments)

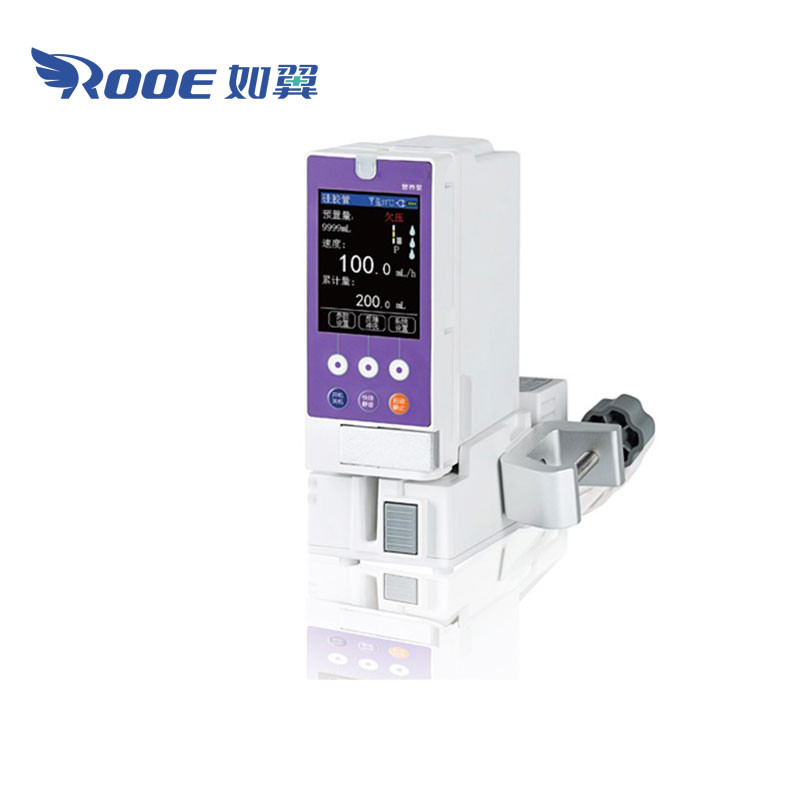

Feeding Enteral Nutrition Pump Infusion Pump Features：
1. Small and light, easy to carry;
2. With adjustable flow rate of back pumping and flushing function;
3. Fast heating function;
4. Equipped with on-board power supply to meet a variety of applications;
5. High protection level IPX5, suitable for clinical application environment;
6. Sound and light alarm can be realized;
7. Real-time display of cumulative quantity, easy to clinical observation;
8. With wireless monitoring function, it can be used in conjunction with infusion information collection system.
| Model | WRSP-5021A |
| Pumping Mechanism | Curvilinear peristaltic |
| Enteral Feeding Set | Standard enteral feeding set with silicon tube |
| Flow Rate | 1-2000 ml/h (in 1, 5, 10 ml/h increments) |
| Purge, Bolus | Purge when pump stops, bolus when pump starts, adjustable rate at 600-2000 ml/h(in 1, 5, 10 ml/h increments) |
| Accuracy | ±5% |
| VTBI | 1-9999 ml (in 1, 5, 10 ml increments) |
| Infusion Mode | ml/h |
| Withdraw | 600-2000 ml/h (in 1, 5, 10 ml/h increments) |
| Cleaning | 600-2000 ml/h (in 1, 5, 10 ml/h increments) |
| Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm, tube dislocation |
| Additional Features | Real-time infused volume, automatic power switching, mute key, purge, bolus, system memory, history log, withdraw, cleaning |
| Occlusion Sensitivity | High, Medium, low |
| History log | 30 days |
| Air-in-Line Detection | Ultrasonic detector |
| Wireless Management | Optional |
| *Fluid Warmer | Optional (30-40℃, in 1℃ increments, over temperature alarm) |
| Vehicle Power (Ambulance) | 12V |
| Power Supply, AC | 110/230V (optional), 50-60 Hz, 20VA |
| Battery | 10.8 V, rechargeable |
| Battery Life | 8 hours at 100 ml/h |
| Working Temperature | 10-30℃ |
| Relative Humidity | 30-75% |
| Atmospheric Pressure | 860-1060hpa |
| Size（L*W*H） | 150*120*60 mm |
| Weight | 1.5KG |
| Safety Classification | Class II, type CF |
| Fluid Ingress Protection | IPX5 |
