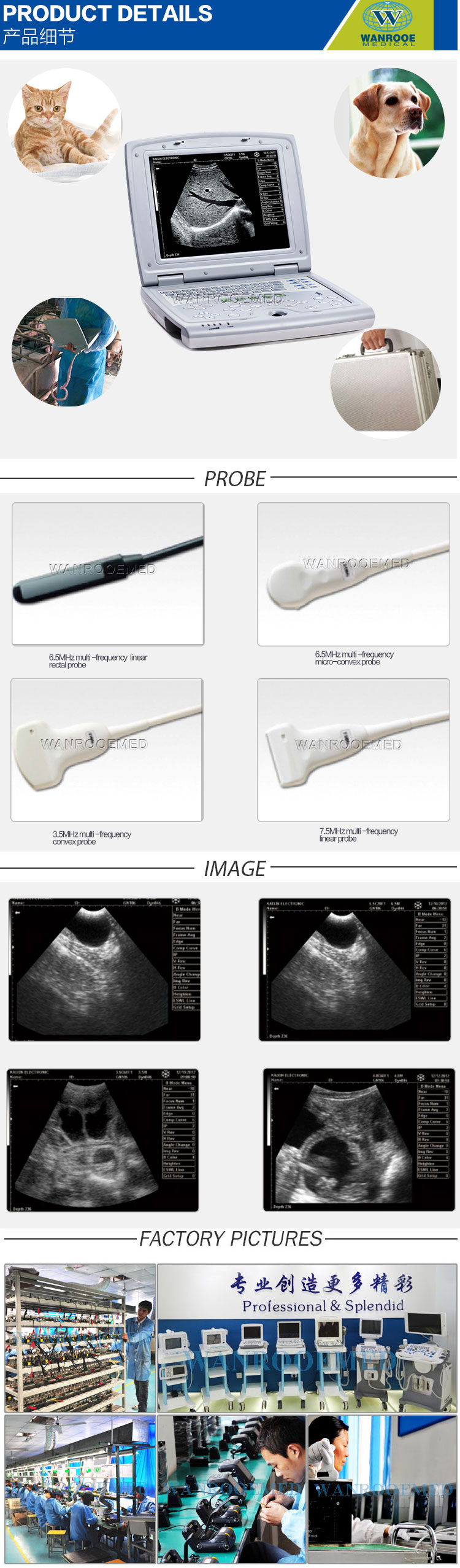

USKX5000 Laptop Vet Handheld Ultrasound Scanner designed widely for diagnosing of pregnancy, fertility and disease on bovine, equine, ovine, canine, feline, goat, swine, llama and other animals.
USKX5000 Laptop Vet Handheld Ultrasound Scanner Features:
Notebook, internal li-battery easy to move.
Menu operation, easy to operate.
Net weight :2.2kg, light.
Support 5 customized languages: English, Spanish, Russian, French, Portuguese.
10.4” LED. Before is 10.4” LCD. More brightness, engergy saving, wider viewing angle than LCD.
USB port for extracting images + print image and report via printer.
Measurements: basic (distance,area , etc. ) + OB(EDD and GA for 7 kinds animal) + Cardiac OB report.
Standard configuration:
1 Main unit: 1 pc
2 6.5MHz multi-frequency micro-convex probe : 1 pc
3 Power adapter: 1 pc
4 Internal Li-battery : 2 pcs
5 Metal case: 1pc
6 Battery Charger:1pc
Optional configuration:
6.5MHz multi-frequency linear rectal probe
4.0Mhz multi-frequency convex rectal Probe and probe support
3.5MHz multi-frequency convex probe
7.5MHz multi-frequency linear probe
6.5MHz multi-frequency trans-vaginal probe
Technical Specification:
Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
10.4" High resolution color LED monitor, high brightness, high contrast, wide visual, LED back light, image clear and exquisite.
Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
Single probe socket, automatically identify the probe, support several optional probes.
Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6.cadioloy, 7.swine---7 kinds, total 27 pcs for body marks with probe position.
Display mode:B,2B,4B ,B/M,M, total 5 kinds.
10 kinds of Magnification, maximum display depth is 236 mm.
Gain range:0~127dB
Dynamic range:27~90dB
Gray:256
Intelligent TGC control: near-field and far-field adjustment
Adjustable and intelligent focus
Frame frequency:30 frames/second.
Pseudo-color: 8 kinds (incl. B/W).
Cine loop:256 frames.
Puncture guiding function(2 guiding lines,angel and position adjustable)
USB port support large capacity USB disk (support document management/software upgrades/one-key storage)
Dual-mode TV output:PAL/NTSC, it could connect to thermal printer and ultrasonic working station.
Net weight:2.2kg.
Main unit size:290x245x48mm(length x width x height).
