It 's table design adopted Europeanism precise appearance. Matte surface premium 304 stainless steel is anti-corrosion and anti-rust. Central controlled large castors enables free wheeling without noise. Individual leg plates and back plate are controlled by gas spring.
Manual Surgical Procedure Table Foot Operated Lift Table Features：
General features:
1. The countertop design adopts the Precise appearance of European style.
2. Table surface of high quality 304 stainless steel corrosion and rust prevention.
3. Centrally controlled casters and independently controlled large casters make the wheels free and noiseless.
4. Special base design leaves more operation space for doctors.
Technical Features:
1. The operating table is usually composed of head board, back board, sitting board and leg board, which can help us to lift and lower during the operation and meet the requirements of different patients.
2. Independent leg board and backboard are controlled by air spring, easy to operate. Both the head plate and the leg plate can be removed.
3. Operating table adopts manual hydraulic mode, stable, low noise, widely used in a variety of surgical operations.

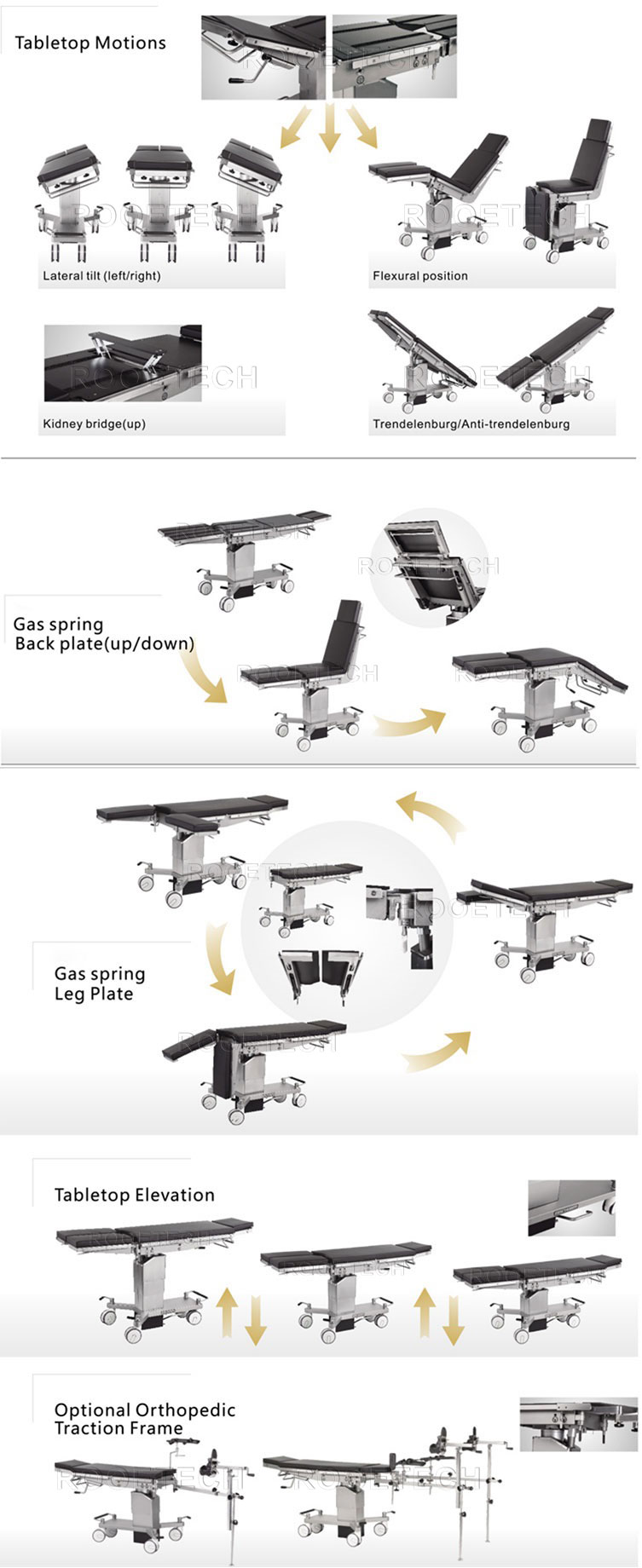

4. with hydraulic adjustment by means of foot pump two to three different positionings:
- High/Low,
- Trendelenburg/Reverse Trendelenburg
- tilt
| Main Parameter | |
| Model | AOT600M |
| Operating Table Size | |
| Length | ≥2000mm |
| Width | ≥500mm |
| Table Overall Adjustable Range | |
| Min. height of table top from floor | ≤670mm |
| Max. height of table top from floor | ≥970mm |
| Tendelenburg | ≥30° |
| Reversed tendelenburg | ≥25° |
| Lateral tilt | ≥20º |
| Table Section Adjustment Range | |
| Head section raised from the horizontal | ≥60º |
| Head section lowered from the horizontal | ≥70º |
| Kidney bridge elevated | ≥120mm |
| Back section raised from the horizontal | ≥70º |
| Back section lowered from the horizontal | ≥30º |
| Leg section raised from the horizontal | ≥15º |
| Leg section lowered from the horizontal | ≥90º |
| Foot board can be horizontal or vertical with leg board. | |
| Package： | 1400*830*950mm |
| Basic Accessories: | Anaesthetic screen: 1 set |
| Arm support: 1 pair | |
| Body support: 1 pair | |
| leg support: 1 pair | |
| Shoulder Rest: 1pair | |
| Foot plate: 1 pair | |
| Cushion: 1 set | |
