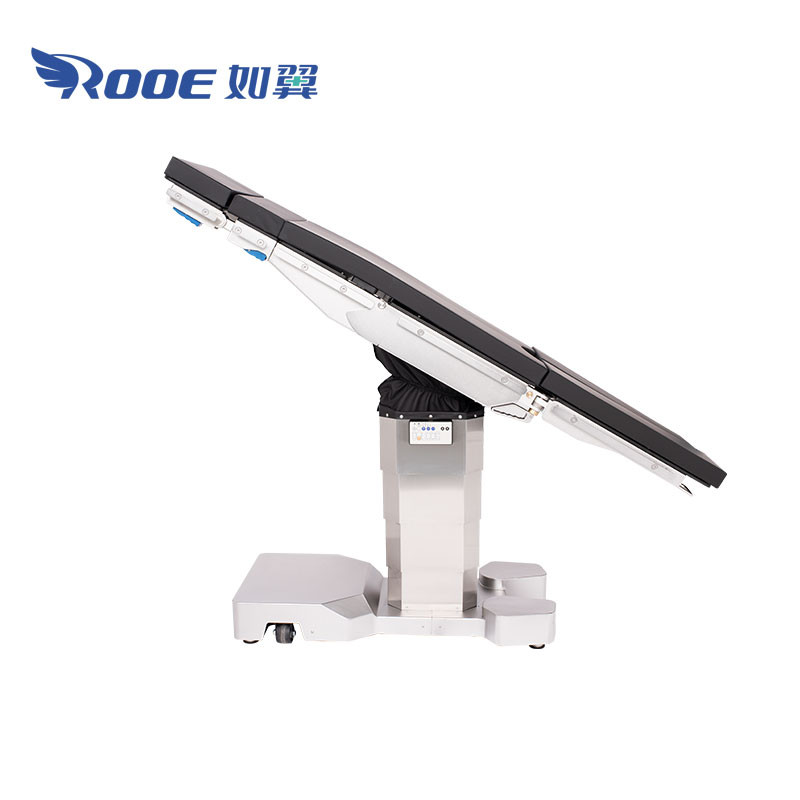

Surgeon table is known for its multi-function adjustment, easy operation, and reliability. The surgeon table can meet the needs of different surgical scenarios, providing a convenient operating experience for doctors.
Electric Surgeon Table Operation Theatre Table Manufacturer Features：
General Features:
1. Four-section structure: headboard, backboard, hipboard, and legboard.
2. Dual backboard design provides more even support and distribution of the patient's weight
Electrical Features:
1. Electric hydraulic drives operating table.
2. Various positions are controlled by the column and hand controller.
Technical Features:

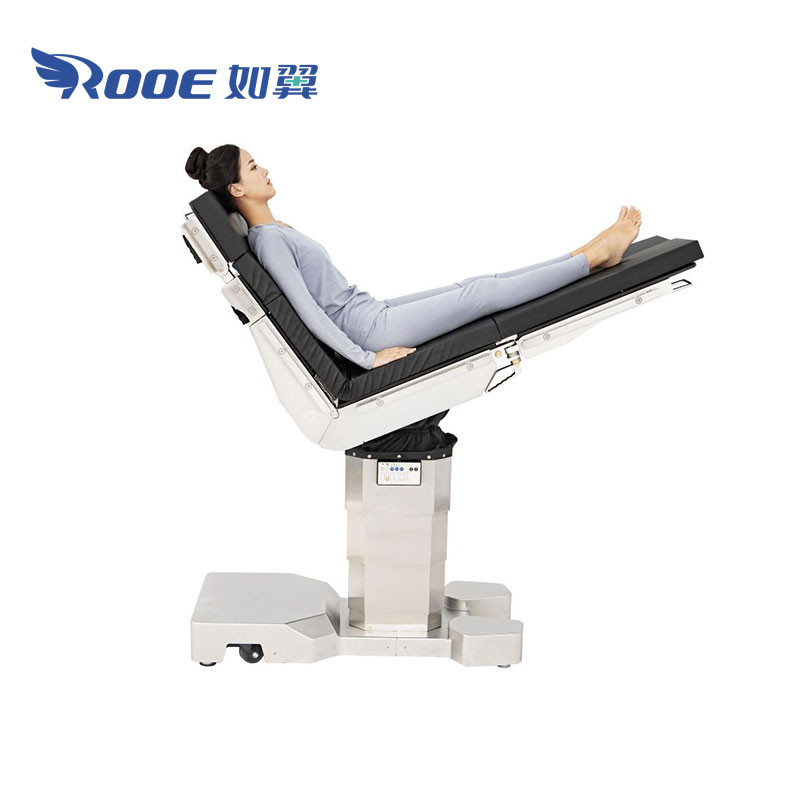

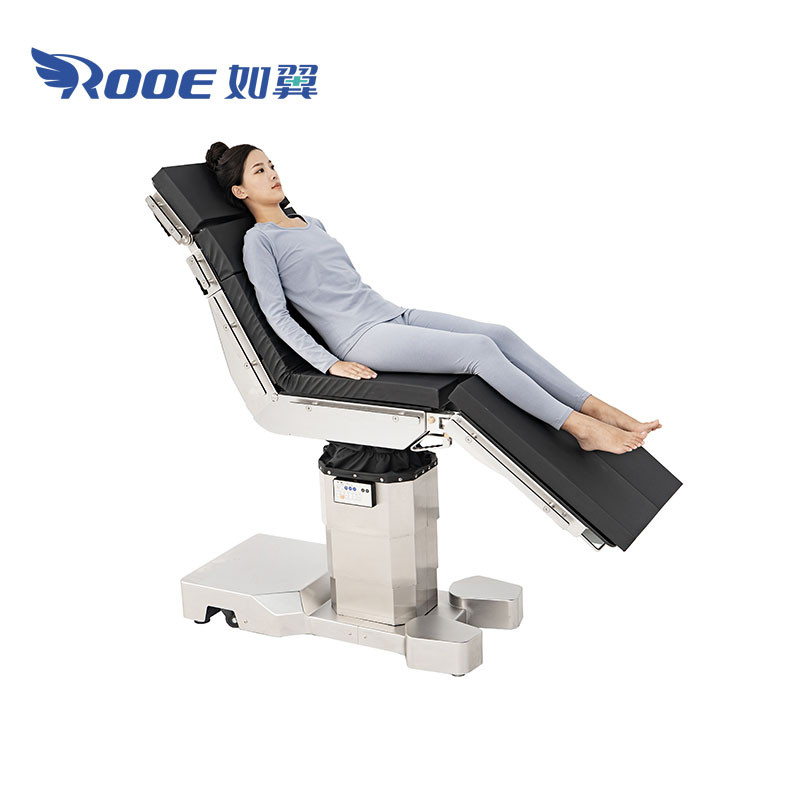

1. Hi-Lo, Trendelenburg and Re-Trendelenburg, flexion and anti-flexion position, left and right tilt, backboard lift, vertical movement, one-touch reset, head-tail interchange.
2. Headboard and legboard are controlled by gas spring.
3. The head plate is folded up 60° and down 90°. The leg board is folded 15° upward, 90° downward, and unfolded 90° outward.
4. 350mm longitudinal translation.
5. Flexion and anti-flexion position angles are 220° and 110°.
6. Electric lumbar bridge lift 100mm.
7. One-button reset conveniently and quickly resets the operating table.
8. Head-to-tail interchange provides greater flexibility and selectivity for the surgeon.
| Main Parameter | |
| Model | AOT8801A Elite |
| Operating Table Size | |
| Length | 2100mm |
| Width | 520mm |
| Height Adjustable Range | |
| Min. height of table top from floor | 635mm |
| Max. height of table top from floor | 1055mm |
| Table Overall Adjustable Range | |
| Reversed tendelenburg | ≥30° |
| Tendelenburg | ≥30° |
| Lateral tilt | ≥20° |
| Backward and forward movements | 0-350mm |
| Table Section Adjustment Range | |
| Head section raised from the horizontal | ≥60º |
| Head section lowered from the horizontal | ≥90º |
| Kidney bridge elevated（electric） | 0-100mm |
| Back section raised from the horizontal | ≥80° |
| Back section lowered from the horizontal | ≥40° |
| Leg section raised from the horizontal | ≥15º |
| Leg section lowered from the horizontal | ≥90º |
| Leg section opened | ≥90° |
| Foot board can be horizontal or vertical with leg board. | |
| Power Supply | AC 220V±10%,50Hz |
| Basic Accessories: | Anaesthetic screen: 1 set |
| Arm support: 1 pair | |
| Body support: 1 pair | |
| leg support: 1 pair | |
| Cushion: 1 set | |
