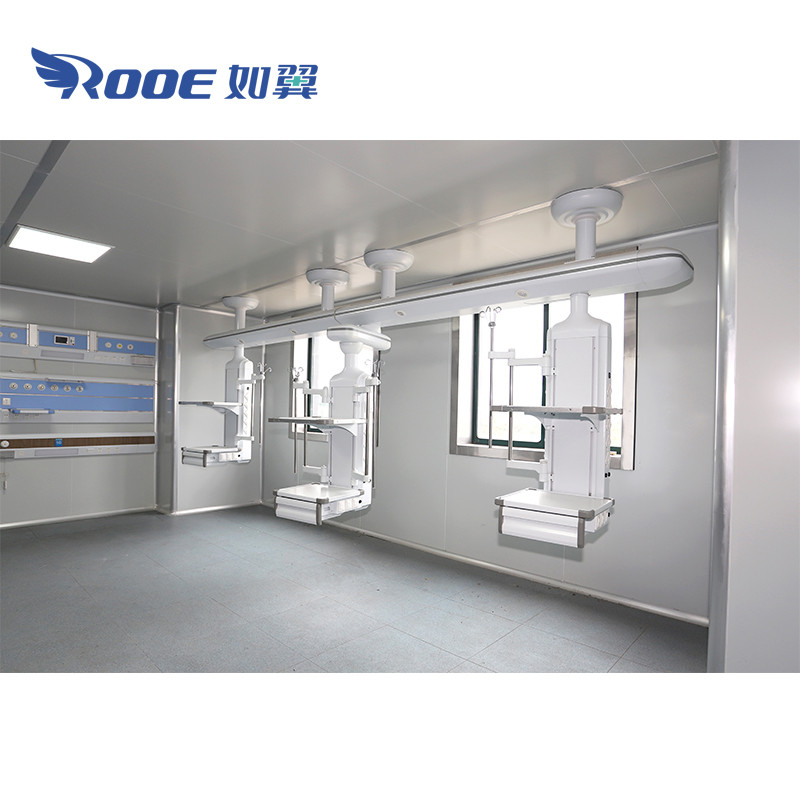

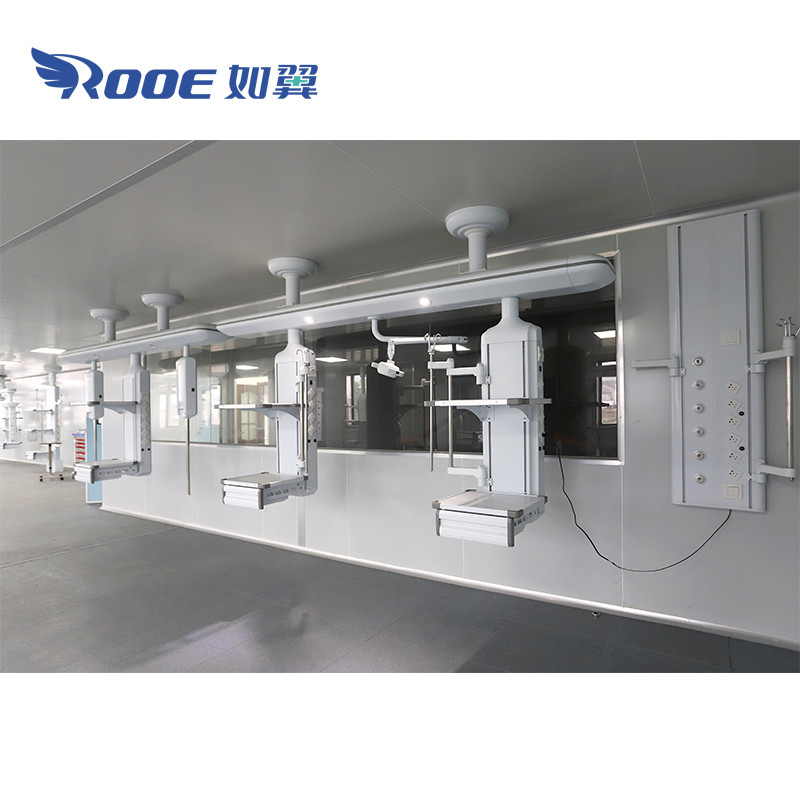

The mobile cantilever Bridge pendant is a bridge hanging style specially designed for ICU sick rooms, observing rooms and recovering rooms. All kinds of terminals such as for medical gas, electricity, network are all gathered on the control board. The function of moving freely makes the operation more convenient. Light is equipped in the middle of the bridge , also we can equip communication machine , monitor , view telephone, background music, teaching and long-distance consultation system according to your needs.
ICU Ceiling Pendant Suspension Bridge Features:
1. The crane tower cross-arm and control box are made of high-strength aluminum alloy extruded in one time.

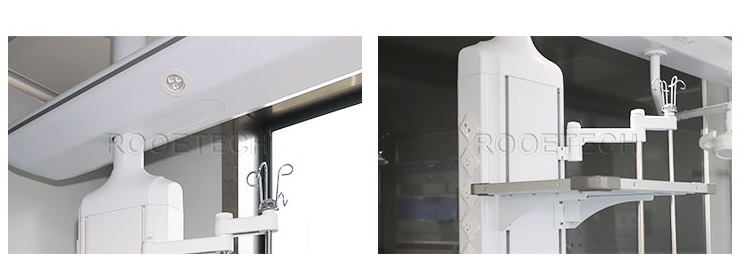

2. The length of the cross-beam can be customized according to the ward space, and the cross-beam is equipped with lighting.
3. Cantilever structure can be selected according to needs, easily move and lock the tower position.
4. The bridge body is designed with circular arc, which can improve the neatness of the ward space.
5. Equipped with lifting medical lights to provide good service and good light environment for the hospital
6. Gas pipeline, power supply and computer communication lines are arranged separately so as not to interfere with each other.
7. Rotating within 340 degrees with mechanical brake, convenient for doctors or nurses to retrieve the required tools during treatment

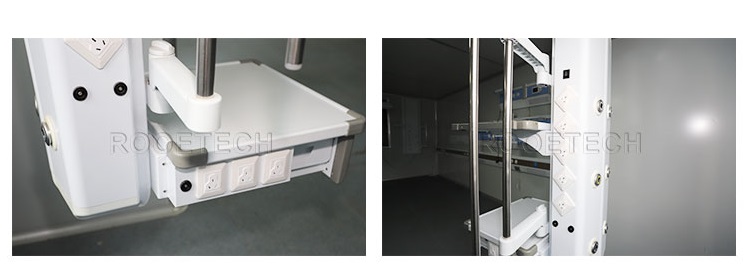

8. The wet section is equipped with lifting and lowering delivery rack and infusion pump rack. The dry section is equipped with a medical monitor platform that can be lifted and adjusted.
9. Applicable to intensive care ward.
10. The highly flexible modular design provides convenience and long-term cost savings for hospitals.
AOT-DT-18C-1 | |
Bridge length | 2500~3200mm |
Working power | AC220V 50Hz |
Material | High-strength aluminum alloy |
Surface treatment | Electrophoresis and powder coating |
Horizontal movement | 200~500mm |
Level Rotation Angle | 340° |
Standard Gas Outlets | O2*4, VAC*4, AIR*2 |
Tray | 4 pcs |

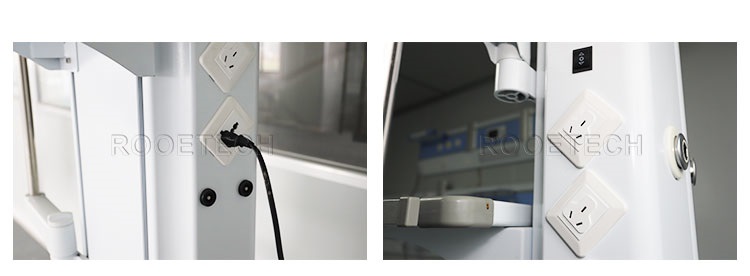

Sockets | 16 pcs (220V/10A) |
Grounding Terminal | 4 pcs |
Network interface | RJ45 4 pcs |
Drawer | 2 pcs |
Stainless steel infusion pump rack | 2 sets |
Net load capacity | ≥300kg |
Single tray net load | 80kg |
