Industry-leading veterinary ultrasound machines for equine, large animal, small animal, zoo mammal, and marine mammal medicine. These ultrasounds provide a huge value and bring portable diagnostic ultrasound imaging within reach of every veterinary professional.
Target customer:
Breeder, farmer (not veterinary). They mainly see pregnancy, low budget.
Animal: Pig, cattle, sheep, dog, cat, ect.

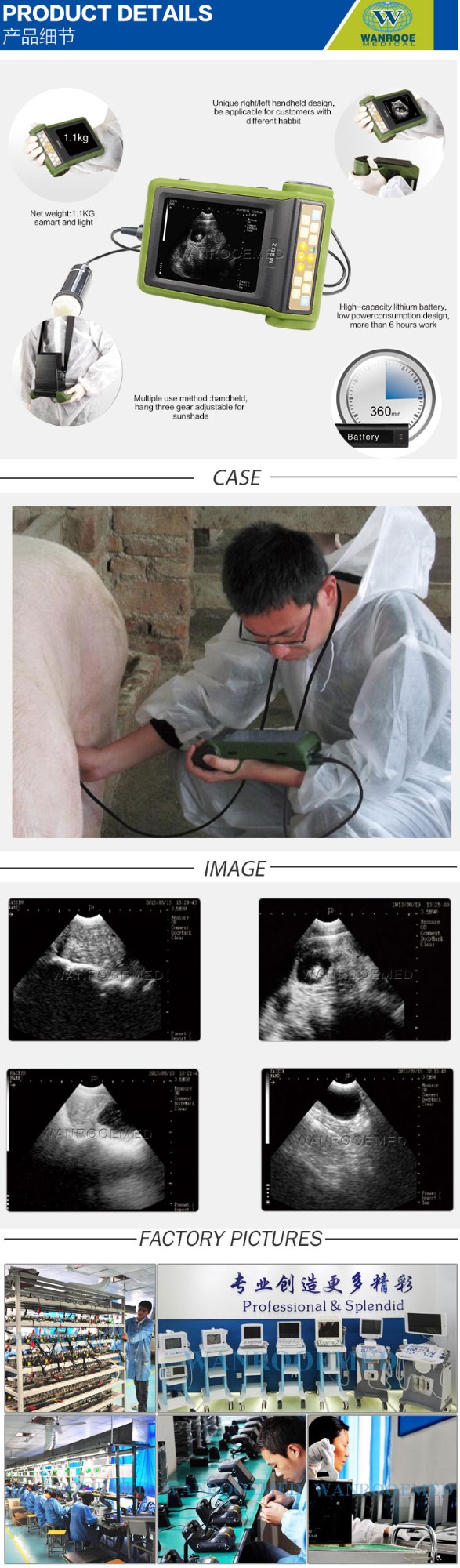

USMSU2 Veterinary Ultrasound Scanner Features:
Economic price.
1.1kg weight, Smart and light.
5.7" High resolution color LED.
Have soft rubber coat, splash-proof, dust-proof.
sunshine cover, suitable for use in outdoor strong sunshine.
High-capacity lithium Battery ,more than 6 hours work.
Available for left/right hand alternative use, eliminating operate fatigue.
Multiple use method: hand-held, chest hanging, back hanging , waist hanging, ect.
Standard configuration:
| 1 | Video thermal printer P93W-S |
| 2 | Internal lithium battery (5200mAH) |
| 3 | Laser color printer(HP Color LaserJet CP1515n,HP Color LaserJet CP1525n) |
Standard configuration:
| No. | Name | Quantity |
| 1 | Main unit | 1 unit |
| 2 | 3.5MHz waterproof mechanical sector probe | 1 pc |
| 3 | Power supply adapter | 1 pc |
| 4 | Internal lithium battery | 1 pc |
| 5 | Neck belt | 1 pc |
| 6 | Probe connector opener | 1 pc |
| 7 | Silica gel cover | 1 pc |
| 8 | Plastic stuffing box | 1 pc |
| 9 | Sunshine cover | 1 pc |
Tech Specification
---Adopt 5’7 high resolution LED display, with High brightness, high contrast, wide viewing angle, suitable for outdoor use
---English language
---Body mark:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body mark with probe director
---Display mode:B,2B,4B ,B/M,M
---Gain:0~127dB
---Contrast:27~90dB
--- Gray: 256
---Magnification: 0.8,1.0,1.2,1.6,2.0
---Frequency: 2 kinds
---IP:0,1,2,3
---IE:0,1,2,3
---local zooming
---Image depth: 4 steps, 200mm (MAX)
---Image up/down, left/right
---Pseudo color: 8 kinds
---100 frames permanent storage
---Cine loop:256 frames
--- memory card storage through USB port
---Puncture guide, with two approvable guiding lines whose angle and position can be adjustable
---the gravel software package with real-time position line measurement
---Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
---Cardio measurement:Depth, slope, heart rate, cycle
---OB measurement:pig, cow, dog, horse, cat, goat, camel and sheep and pre-gestational age birth
---OB Report
--- With green energy-saving function
---Character brightness:select between160,192,224,255
---Key sound: on/off
---Video output:PAL/NTSC
---Power supply:AC110/230 -15%~+10%, 60/50Hz±1Hz;
---Battery:large capacity(5200MAh) battery 1PC, more than 6 hours work
---N.W.:1.1kg;
---Dimension:212×154×58mm(L×W×H)
