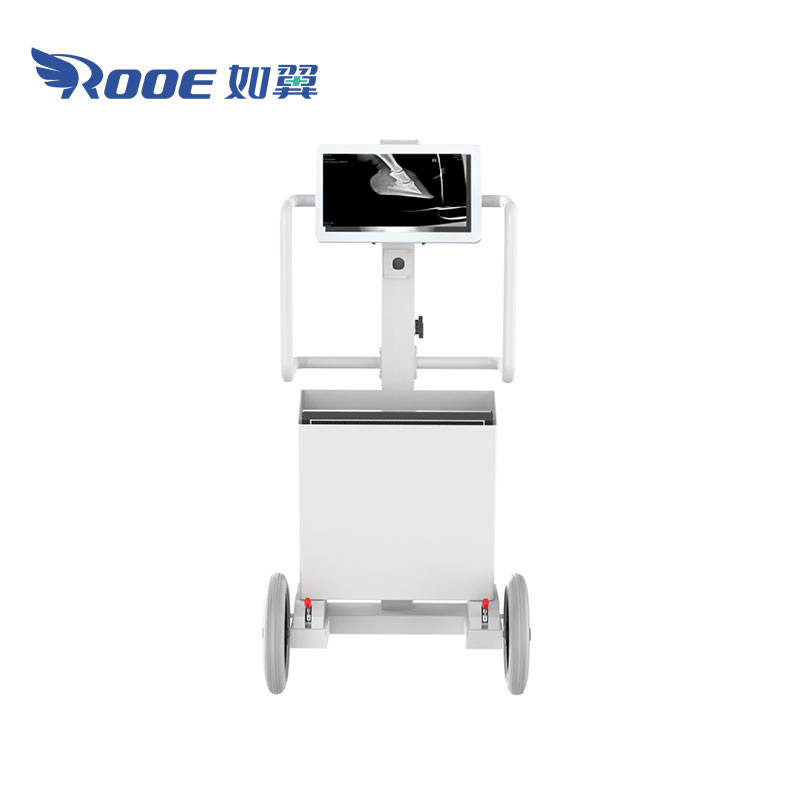

Veterinary large animal X-ray machine is a high-performance imaging equipment specially designed for large animal medical diagnosis, adopting advanced DR technology to achieve high-definition imaging, specially equipped with large-size detectors to adapt to the needs of different body sizes, combined with intelligent exposure control, convenient mobility, durable construction and user-friendly interface, not only to enhance the diagnostic efficiency and accuracy, but also fully consider the animal welfare and user operation simplicity.
Veterinary Large Animal Images Digital Radiography Equipment Features：
1. High-definition Imaging

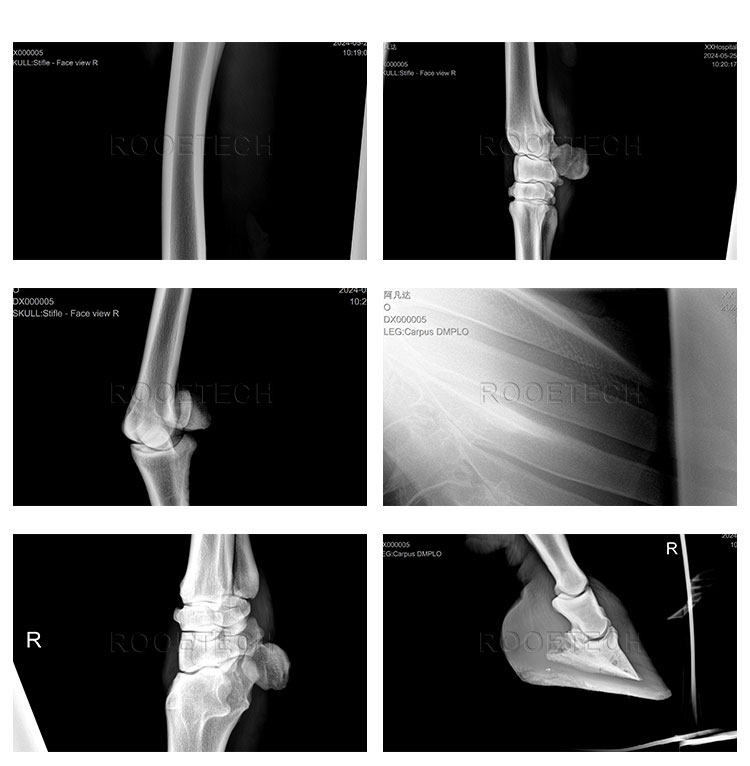

Adopting advanced digital flat panel detector (DR) technology, the image resolution is high and the details are clearly presented, which can accurately identify even the slightest fracture and foreign body retention, and provide veterinarians with a basis for diagnosis.
2. Large Detection Area
specially designed to adapt to the large animal body size, wide detector coverage, reducing the number of shots, improving the efficiency of the examination, while reducing the animal's stress reaction.
3. Intelligent Exposure Control
automatic adjustment of exposure parameters, intelligent optimization according to animal size and parts, reducing radiation dose and protecting animals and operators.
4. Mobility and Convenience

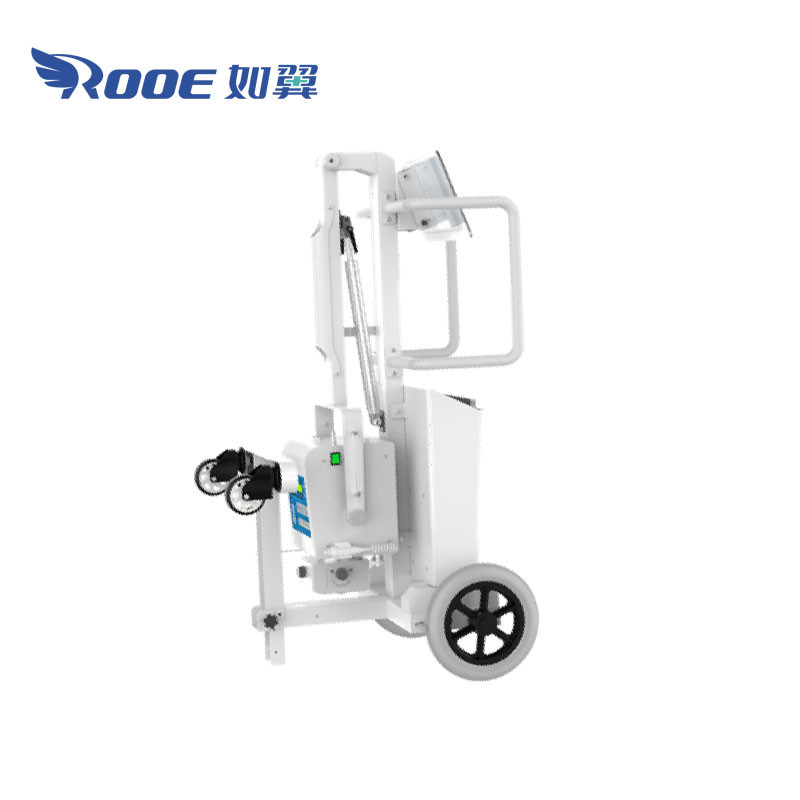

Equipped with high-strength mobile bracket and durable wheels, it can be flexibly moved in different environments such as farms and veterinary hospitals, adapting to diversified diagnostic and treatment scenarios.
5. Durable Construction
The body is made of high-strength alloy material, shockproof and drop-proof, suitable for outdoor and harsh environments, ensuring long-term stable operation.
6. User-friendly Operation Interface

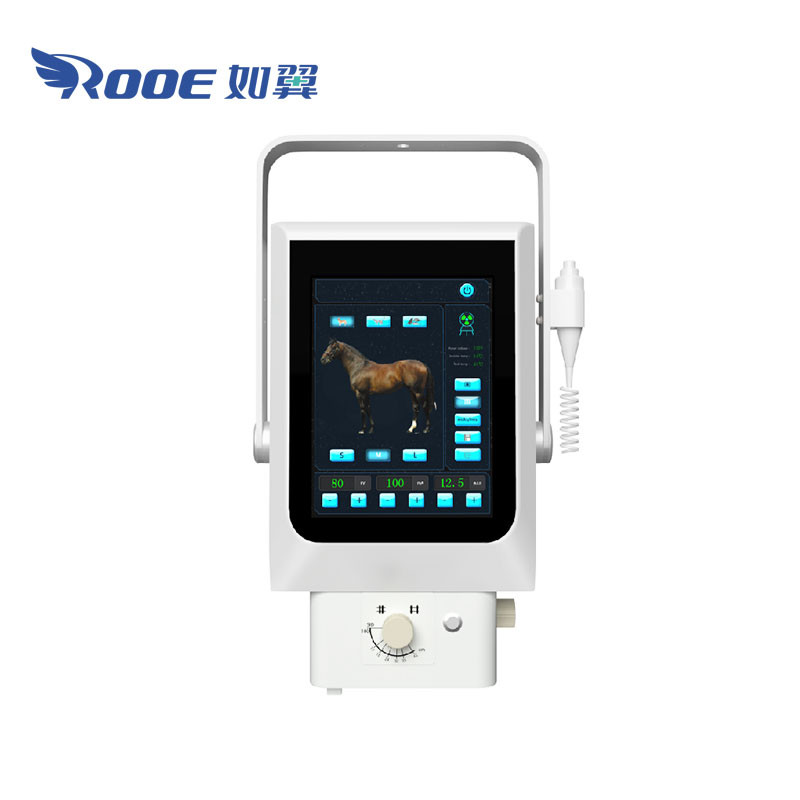

Touch screen control panel, intuitive and simple operating system, support for rapid presetting and personalized settings, even for first-time users can quickly get started.
Application
Widely used in horse, cattle, camel and other large animals, fracture examination, lung disease diagnosis, digestive tract foreign body detection and other fields, is the ideal choice for large animal medical institutions, animal husbandry and veterinary stations and scientific research units.
| Model | VET1500 |
| Power: | 8kW |
| Voltage: | AC220V ± 10% |
| kV Range: | 40～125kV |
| mA Range: | 5～160mA |
| mAs Range: | 0.1-200mAs |
| Working Frequency: | 100kHz |
| Exposure time: | 0.0032S～10S |
| Single Focus: | 2.0 mm |

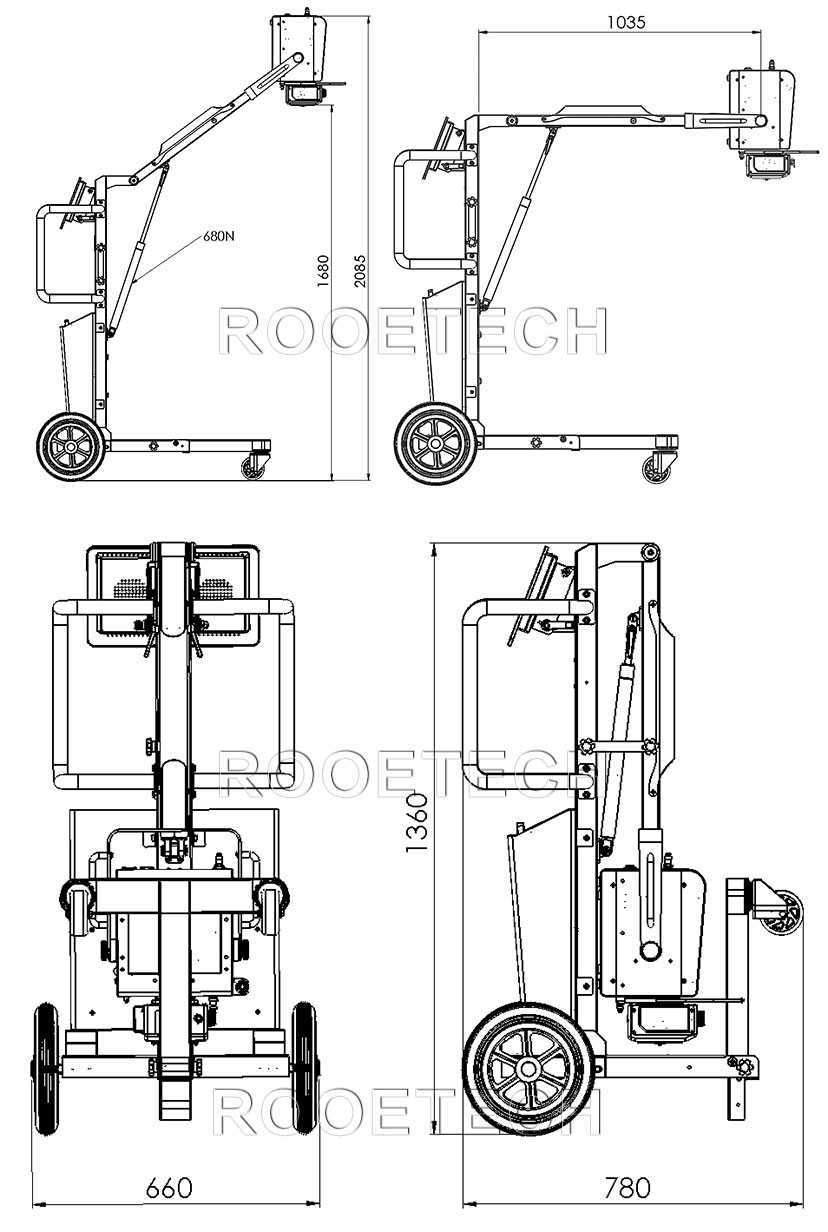

| Head size: | 420mm * 245mm * 240mm |
| Head Weight: | 18KG |
