This cassette sterilizer can quickly complete sterilization in 6-7 minutes, reducing thermal damage to instruments. It supports intelligent program customization, is equipped with multiple safety monitoring and automatic alarm systems, and has a built-in thermal printer to ensure sterilization traceability. It is compact and portable and suitable for clinics, laboratories and other scenarios.
Fast and efficient sterilization

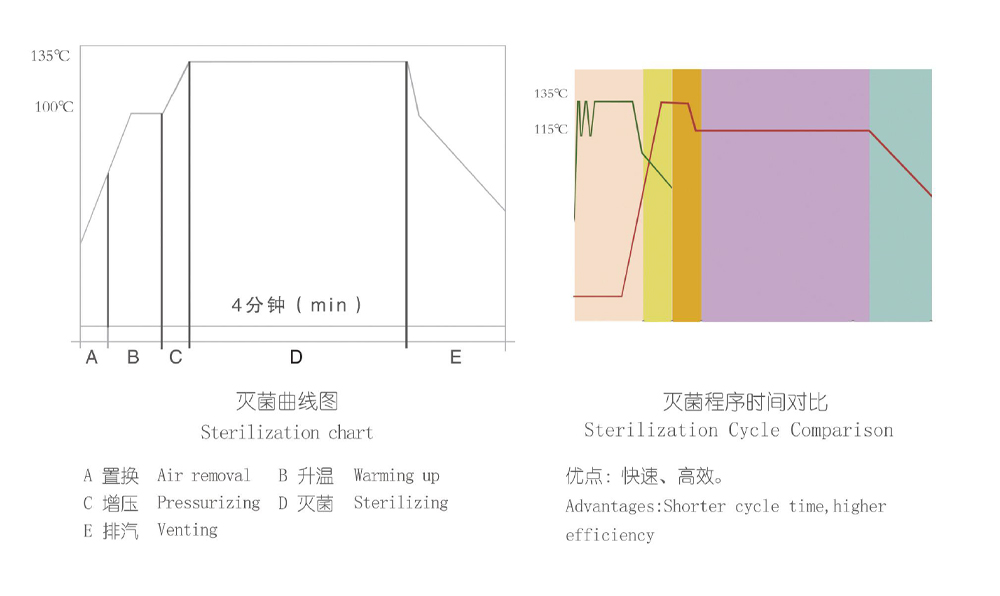

The desktop card sterilizer takes only 6-7 minutes from start-up to complete the entire sterilization process, which greatly improves work efficiency. Compared with traditional sterilizers, it greatly shortens the time that medical devices are exposed to high temperature and high pressure environments, effectively reducing thermal damage to the equipment, thereby extending the service life.
Intelligent control, customized sterilization plan
Equipped with 3 sterilization shortcut buttons, users can freely set the sterilization temperature and time according to different types of sterilization requirements, and set 3 sterilization programs to ensure accurate sterilization. This intelligent control method not only simplifies the operation process, but also improves the safety and flexibility of sterilization.
Safety monitoring system
With comprehensive safety monitoring functions, the system will automatically alarm and prompt in the case of unqualified water quality, water shortage, etc., to prevent the sterilization effect from being affected by water source problems. In addition, during the sterilization process, if abnormal conditions such as low temperature and low pressure are detected, the system will stop running immediately, and clearly display error information on the display screen, and print and record abnormal conditions for easy tracking and maintenance.
Built-in thermal printer, real-time recording
The standard micro thermal printer can automatically print important data of the entire sterilization process to ensure that the sterilization process is traceable. This not only meets the quality management requirements of medical institutions, but also facilitates medical staff to check sterilization records at any time, improving the standardization and traceability of operations.
Small and portable, wide range of applications
The sterilizer adopts a compact design, small size, light weight, easy to carry, and suitable for various environments, such as dental clinics, laboratories, small medical institutions, etc. Whether it is fixed use or needs to be moved between different places, the device can easily adapt.
Multifunctional sterilization box, convenient storage and transportation
The sterilization box is not only the core component of the sterilization operation, but also an ideal means of transportation. After sterilization, the instrument can be temporarily stored in the sterilization box to avoid secondary contamination, ensure that the sterilized instrument can be safely and hygienically transported and used, and realize the efficient medical process of "sterilization and use".
Model | TM-SK2000 | TM-SK5000 | TM-SK6000 |
Dimensions | 570*415*170mm | 580*460*190mm | |
Cassette size(external) | 390*196*40mm | 480*196*80mm | 570*196*80mm |
Cassette size(internal) | 280*180*38mm | 380*180*78mm | 480*180*78mm |
Chamber volume | 1.8L | 5.2L | 6.0L |
Reservoir volume | 3.4L | ||
Electrical rating | 220V 50Hz 6A 1.3kVA | ||
Steam temperature | 115-135℃ (selectable) | ||
