A syringe pump is a pump used to deliver precise and accurate amounts of fluid in high-impact research environments ranging in fields from chemistry to neuroscience. An infusion pump infuses fluids,medication or nutrients into a patient's circulatory system.It is generally used intravenously,although subcutaneous,arterial and epidural infusions are occasionally used.

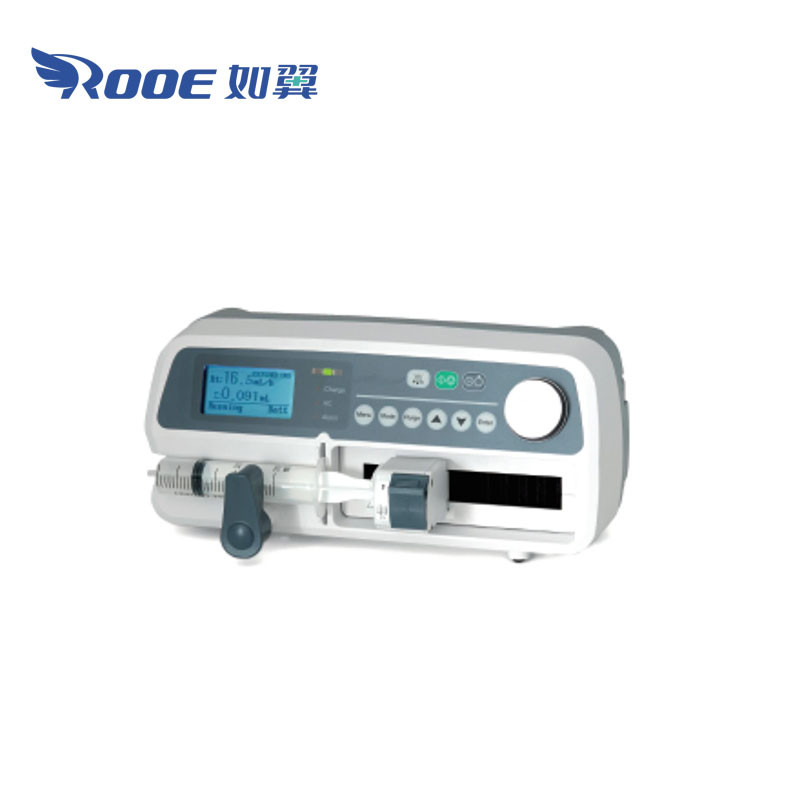

KVO Infusion Pump Portable Electric Pump For Intravenous Therapy Features：
Simple mode, only input injection speed can start operation.
| Model | WRSP-602 |
| Syringe Size | 10, 20, 30, 50/60 ml |
| Applicable Syringe | Compatible with syringe of any standard |
| VTBI | 0.1-9999 ml < 1000 ml in 0.1 ml increments |
| ≥ 1000 ml in 1 ml increments | |
| Flow Rate | Syringe 10 ml: 0.1-400 ml/h |
| Syringe 20 ml: 0.1-600 ml/h | |
| Syringe 30 ml: 0.1-900 ml/h | |
| Syringe 50/60 ml: 0.1-1300 ml/h | |
| < 100 ml/h in 0.1 ml/h increments | |
| ≥ 100 ml/h in 1 ml/h increments | |
| Bolus Rate | Syringe 10 ml: 400 ml/h |
| Syringe 20 ml: 600 ml/h | |
| Syringe 30 ml: 900 ml/h | |
| Syringe 50/60 ml: 1300 ml/h | |
| Anti-Bolus | Automatic |
| Accuracy | ±2% (mechanical accuracy ≤ 1%) |
| Infusion Mode | Flow rate: ml/min, ml/h |
| Time-based | |
| Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc. | |
| KVO Rate | 0.1-1 ml/h (in 0.1 ml/h increments) |
| Alarms | Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm, pressure sensor error, syringe installation error, syringe drop off |
| Additional Features | Real-time infused volume, automatic power switching, automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory |
| Drug Library | Available |
| Occlusion Sensitivity | High, medium, low |
| Power Supply, AC | 110/230V (optional), 50-60 Hz, 20VA |
| Battery | 9.6±1.6V, rechargeable |
| Battery Life | 7 hours at 5 mL/h |
| Working Temperature | 5-40℃ |
| Relative Humidity | 20-90% |
| Atmospheric Pressure | 860-1060hpa |
| Size | 314*167*140 mm |
| Weight | 2.5kg |
| Safety Classification | Class Ⅱ, type C |
