An infusion pump is a medical device that delivers fluids, such as nutrients and medications, into a patient's body in controlled amounts. Infusion pumps are in widespread use in clinical settings such as hospitals, nursing homes, and in the home.

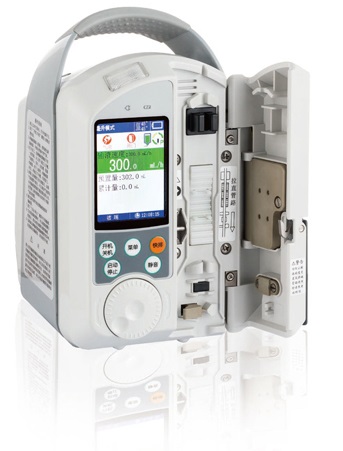

Medication Infusion Pumps Smart IV Drip Machine Features：
1. 3.2 "TFT true color screen.
2. Up to nine kinds of alarm, sound, light, picture, word indication.
3. Knob to ensure efficient operation.
4. More infusion modes: flow rate, drop/minute, time, weight, nutrition
5. 50000 event history logs.
6. Dual CPUmake infusion process safer.
7. Nurse call connection.
8. Vehicle power supply (ambulance) connection.
| Model | WRIP-XA Ⅱ |
| Pumping Mechanism | Curvilinear peristaltic |
| IV Set | Compatible with IV sets of any standard |
| Flow Rate | 1-1200 ml/h (in 0.1 ml/h increments) |
| Purge, Bolus | Purge when pump stops, bolus when pump starts, rate at 500, 800, 1200 ml/h |
| Accuracy | ±3% |
| VTBI | 1-20000 ml (in 0.1 ml increments) |
| Infusion Mode | Ml/h, drop/min, time-based, body-weight, nutrition |
| KVO Rate | 1-5 ml/h (in 0.1 ml/h increments) |
| Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm |
| Additional Feature | Real-time infused volume, automatic power switching, mute key, purge, bolus, system memory, history log |
| Occlusion Sensitivity | High, medium, low |
| History log | 50000 events |
| Air-in-line Detection | Ultrasonic detector |
| Wireless Management | Optional |
| Power Supply, AC | 110/230V (optional), 50-60 Hz, 20VA |
| Drop Sensor | Optional |
| Vehicle Power (Ambulance) | 12±1.2V |
| Battery | 9.6±1.6V, rechargeable |
| Battery Life | 5 hours at 25 ml/h |
| Working Temperature | 10-30℃ |
| Relative Humidity | 30-75℃ |
| Atmospheric Pressure | 860-1060hpa |
| Size | 130*145*228 mm |
| Weight | 2.5kg |
| Safety Classification | Class Ⅰ, type CF |
