Automated external defibrillators (AEDs) have become the standard of emergency care for immediate treatment of sudden cardiac arrest. These devices have the potential to save the life of a patient by delivering electrical shocks to the heart that force it from a lethal rhythm back into normal sinus rhythm upon restarting its beat pattern.

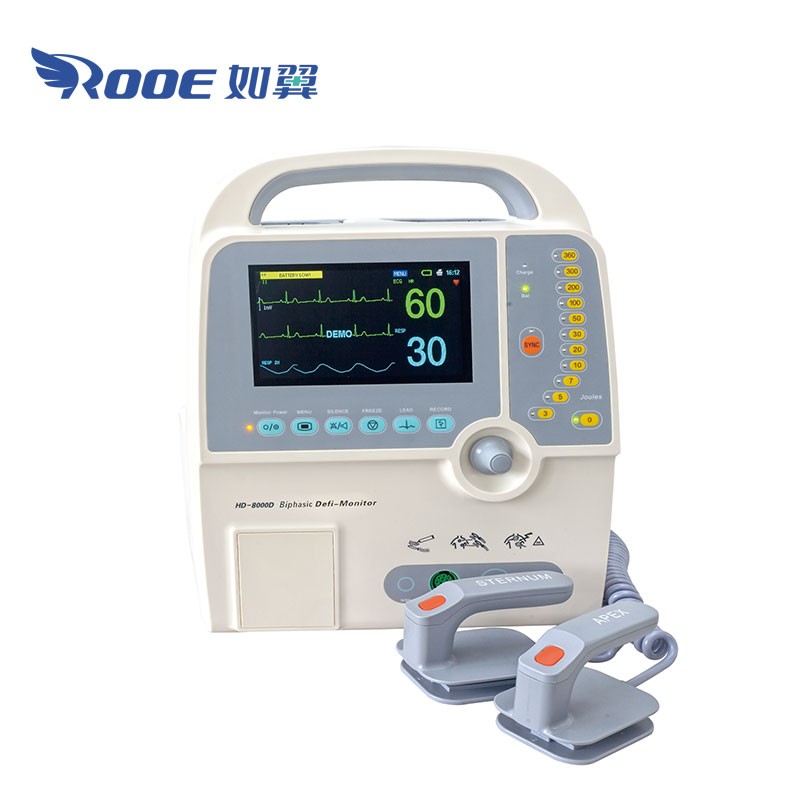

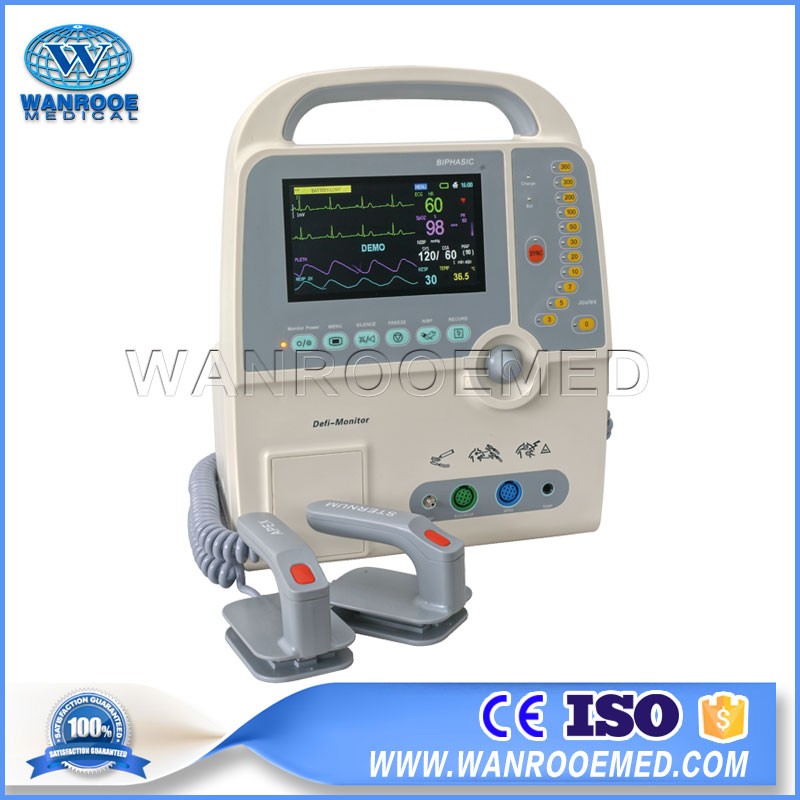

DEFI-8000D is a powerful and intelligent emergency defibrillator monitoring device that integrates multiple key technologies such as biphasic defibrillation, ECG monitoring, voice guidance and record printing. It is suitable for various emergency, transportation and clinical monitoring scenarios. The device is equipped with a clear 7-inch color display, easy to operate, and quick to respond, which can effectively support medical staff to respond quickly at critical moments.
 |  |  |
1. Biphasic defibrillation function
Adopting biphasic defibrillation technology, supporting synchronous and asynchronous defibrillation modes, fast charging speed, 360 joules of energy preparation can be completed within 10 seconds, adapting to different emergency scenarios, and meeting the various defibrillation needs of adults and children.
2. Electrode plate and energy adjustment

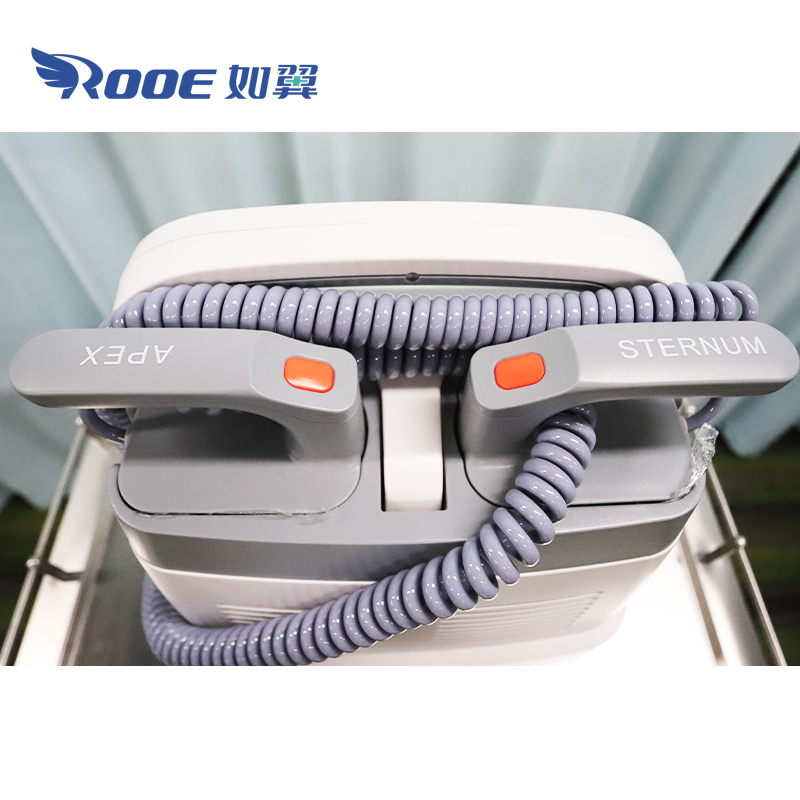

It is equipped with reusable adult external electrode plates (integrated with children's mode) as standard, with rich energy output levels, covering 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules, and flexible and accurate operation.
3. ECG monitoring

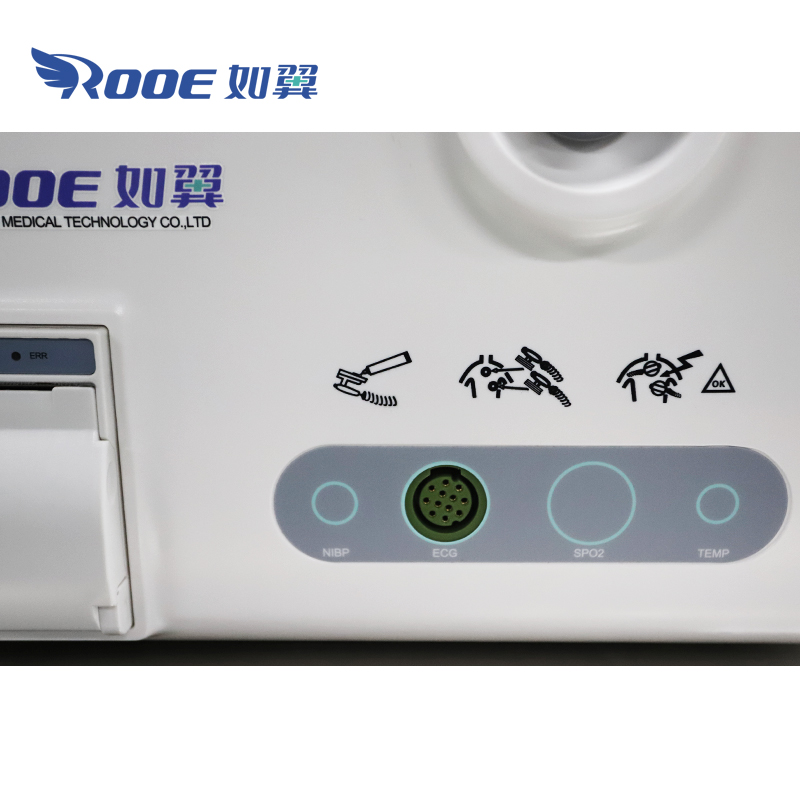

Supports three-lead or five-lead ECG input, and the lead parameters include I, II, III, aVR, aVL, aVF, V. Clear waveforms can be displayed on the electrode plates and the main screen of the device to meet various monitoring needs.
4. 7-inch high-definition color screen
Equipped with a 7-inch diagonal TFT color display, it displays parameters such as heart rate, leads, alarm status, energy delivery, etc. The interface is clear and intuitive, which helps medical staff quickly judge the condition.
5. Voice prompt system
The built-in voice guidance function can provide real-time prompts in key operation steps, assisting operators to perform the correct defibrillation process, and improving the accuracy and safety of on-site processing.
6. Data recording and printing
The standard built-in thermal recorder can automatically record defibrillation discharge and trigger signals, which is convenient for postoperative analysis and data archiving, and meets the clinical needs for operation trace management.

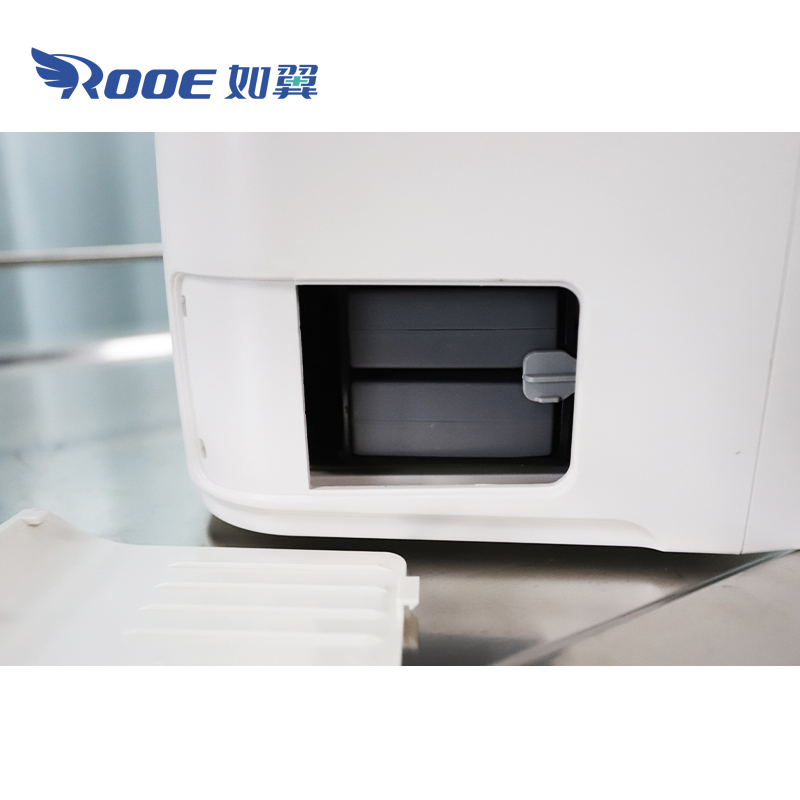

7. High-performance lithium-ion battery
Equipped with a long-lasting lithium battery, it can work stably in power-off or mobile scenarios, ensuring uninterrupted power supply at critical moments, and providing reliable protection for emergency transportation and field operations.
8. Extended monitoring function (optional)
The blood oxygen saturation (SpO₂) module can be selected according to actual needs to further expand the vital signs monitoring capabilities and provide more comprehensive clinical data support.
 |  |  |
| Screen Type: | High-resolution display, TFT colour display |
| Screen Size: | 7 inches (17.7cm) diagonally |
| Sweep Speed: | 12.5/25/50mm/sec |
| Information: | Heart Rate, Lead, Alarm On/Off, Delivered Energy |
| Resolution: | 800X480 |
| Dimensions: | L320 x W205 x H410mm |
| Weight: | 7.5kg |
| Defibrillator | |
| Waveform: | Biphasic |
| Defibrillator type: | Manual External Synchronous/Asynchronous Defibrillation. |
| Charge Time: | Less than 10 seconds to 360 Joules |
| Energy Display: | Monitor display indicates both selected and?delivered energy. |
| Charge Prompt Type: | Voice and visual prompts. |

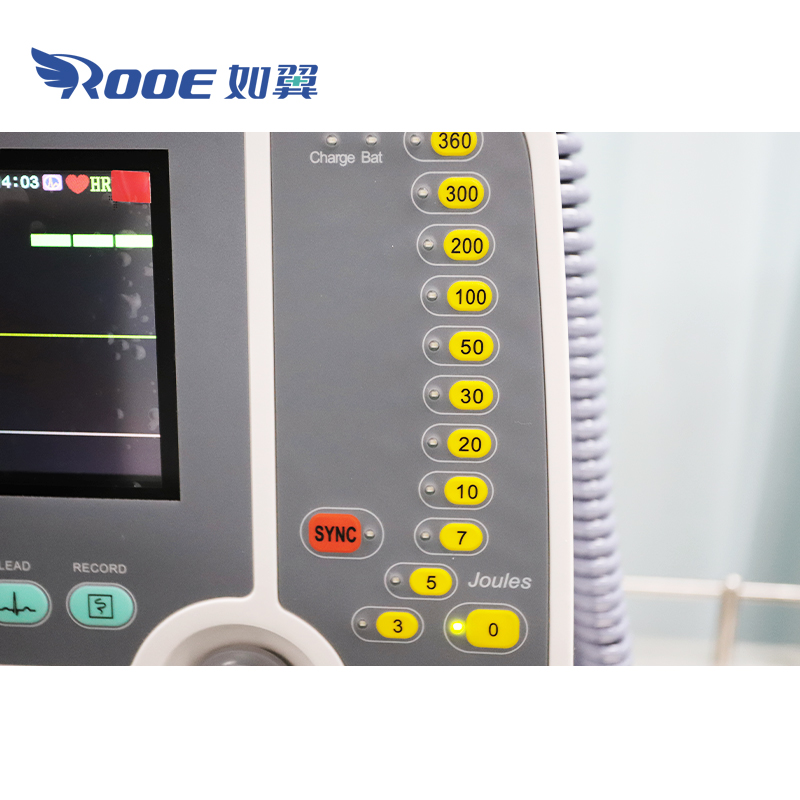

| Energy Selection: | Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules |
| Standard Adult/Pediatric Paddles: | Reusable external adult paddles (pediatric paddles integrated) |
| Battery | |
| Standard Type: | Li-ion battery Li1104c 11.1Vdc 4000mAh X2 |
| Standard Capacity: | Up to 10 hours ECG monitoring or 60 full-energy discharges. |
| Low Battery Indicator: | Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on |
| Recharge Rate: | 80% in 3 hours. 100% in 5 hours. |
| Power | |

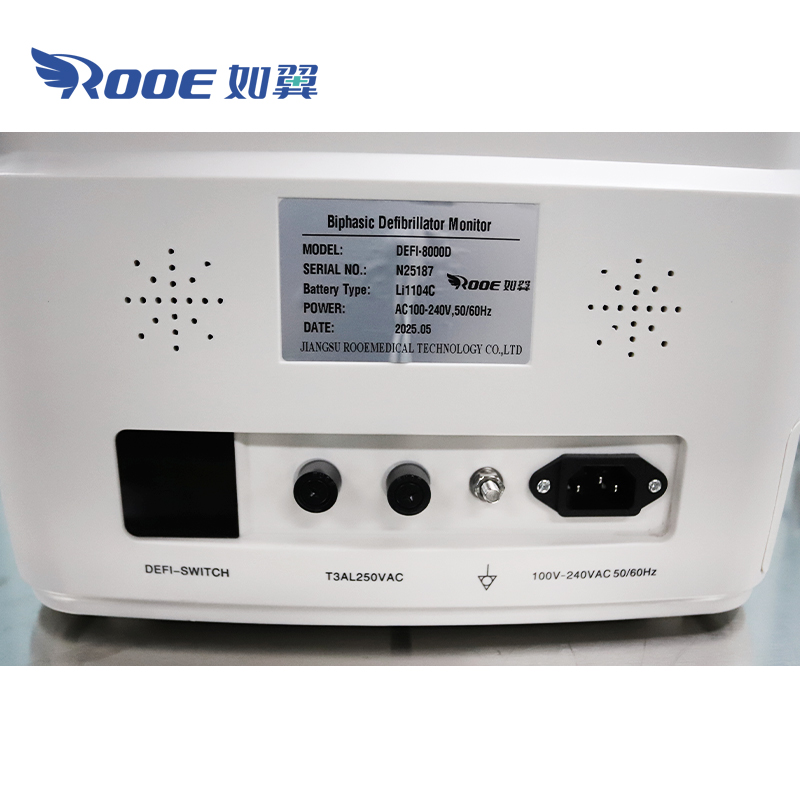

| AC-DC dual-use: | Use the batteries,AC100V~240V,50/60 Hz. |
| Vehicle Voltage(Option): | DC 12V |
