Designed to meet the increasing demands of the modern hospital environment, the high performance beds feature split side bars that are ideal for general wards, specialty areas, and highly dependent patients in CCU and HDU. This innovative bed achieves the best combination of safety, performance, functionality and cost effectiveness.

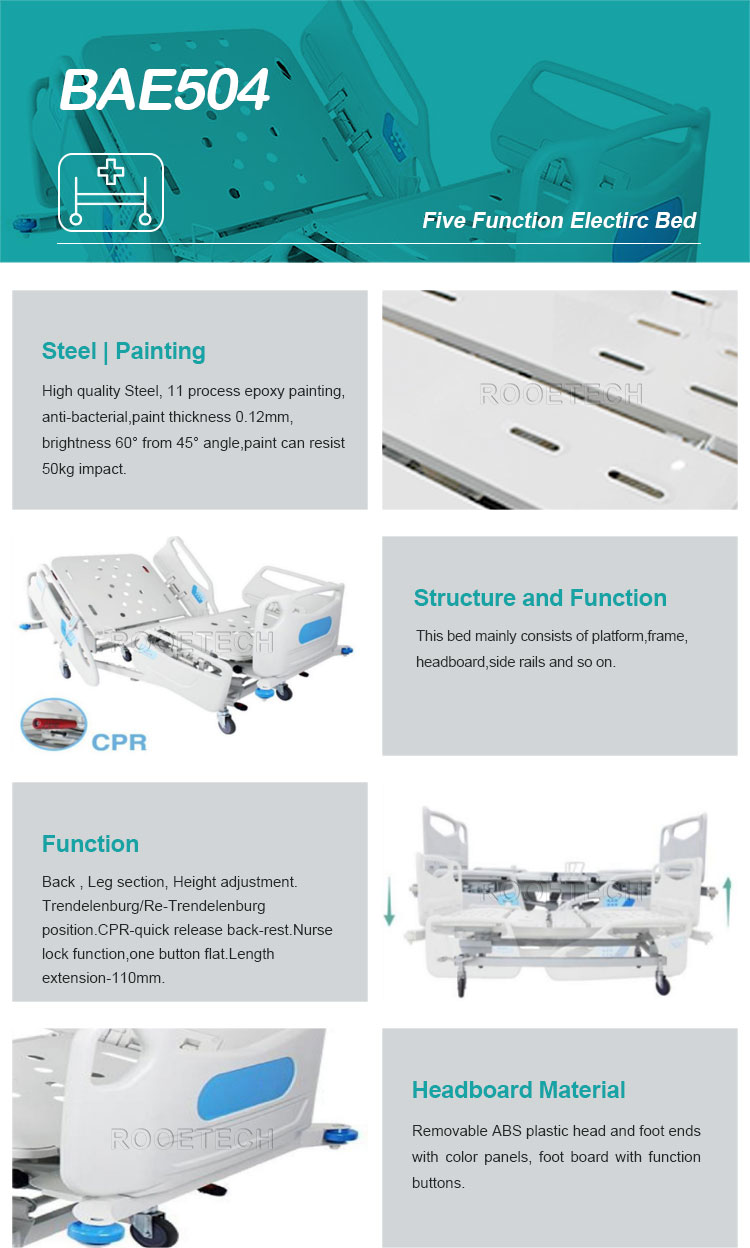

This advanced 5-function electric hospital bed is designed to enhance patient comfort, improve caregiver efficiency, and ensure safety in all clinical and long-term care settings. With a robust epoxy-coated steel frame and user-friendly control systems, it offers smooth and flexible positioning for various medical and recovery needs.
Fully Adjustable Hospital Bed 5 Function With Side Rails Control Panel Features：
Durable Construction
Sturdy epoxy-coated steel pipe frame ensures long-term stability and resistance to corrosion.
Removable Head & Foot Boards
Easy-to-remove ABS head and tail boards allow quick access for emergency care and convenient cleaning.
360° Shock-Absorbing Corners
Each bed corner is equipped with a rotating rubber bumper to absorb impact and prevent wall or equipment damage.
High-Load Casters for Smooth Mobility
Four premium casters provide excellent mobility and stability under heavy patient loads; all wheels are lockable for secure positioning.
Enhanced Patient Safety
Equipped with four independent side rails that help prevent patient falls and provide reliable support when getting in and out of bed.
Angle Indicators on Side Rails
Built-in angle indicators assist caregivers in positioning the patient with clinical precision.
Dual Control Panels on Guardrails
Convenient control panels are integrated both inside and outside the side rails—for both patients and caregivers.
Retractable Bed Extension
Adjustable bed length accommodates taller patients, improving comfort and reducing pressure points.
Built-In Oxygen Cylinder Holder
Secure holder placed under the bed platform for easy access and space efficiency.
Central Nurse Control Panel
Additional control panel at the foot of the bed for centralized management by nursing staff.
Versatile Electric Adjustments

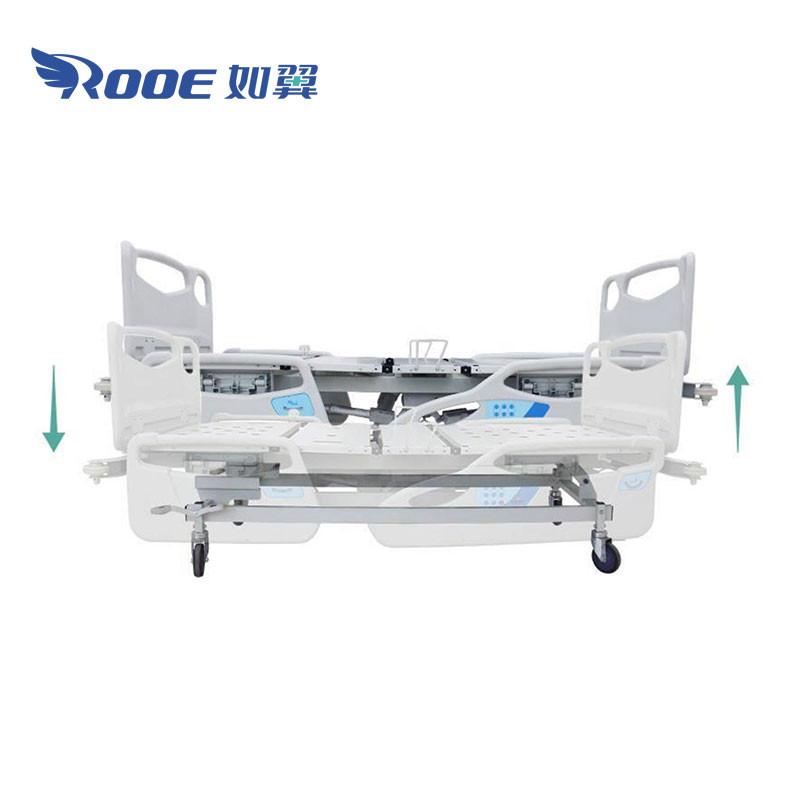

Easily adjust bed height (Hi-Lo), backrest, leg section, back-leg synchronization, and Trendelenburg/Reverse Trendelenburg positions via electric control.
One-Touch Manual CPR Release
Emergency CPR function instantly flattens the bed with one press for rapid response.
| Technical parameters | |
| External size（L*W*H) | 2240*1090*460-820mm |
| Mattress platform | 1925*900mm |
| Safe working load | 135kg |
| Weight capacity | 220kg |
| Backrest adjustment | 0-70°（±5°） |
| Knee-rest adjustment | 0~35°（±5°） |
| Trendelenburg/Re-Trendelenburg | 0~12°（±2°） |
| Voltage | 220V/110V |
| Frequency | 50HZ/60Hz |
| Bed Extension | 100±10mm |
| Plus as required(hospital require） | |
| Technical configuration | |
| Linear motor | 4PCS |
| 5" Coyered castors | 4PCS |
| ABS Extra Height Side Rail | 1SET |
| ABS Bed Ends With Nurse Control Panel | 1SET |
| Drainage hook | 4PCS |
| Oxygen Cylinder Rack | 4PCS |
| Accumulator battery | 1SET |
| Trapeze/Monkey bar Socket | 2PCS |
| Hand control | 1PC |
| Φ85mm Wall Bumper Wheel | 4PCS |
| Optional | |
| Height adjustable IV pole | |
| Monkey bar | |
| Foam mattress | |
| Over-bed table | |
| Oddment shelf | |
