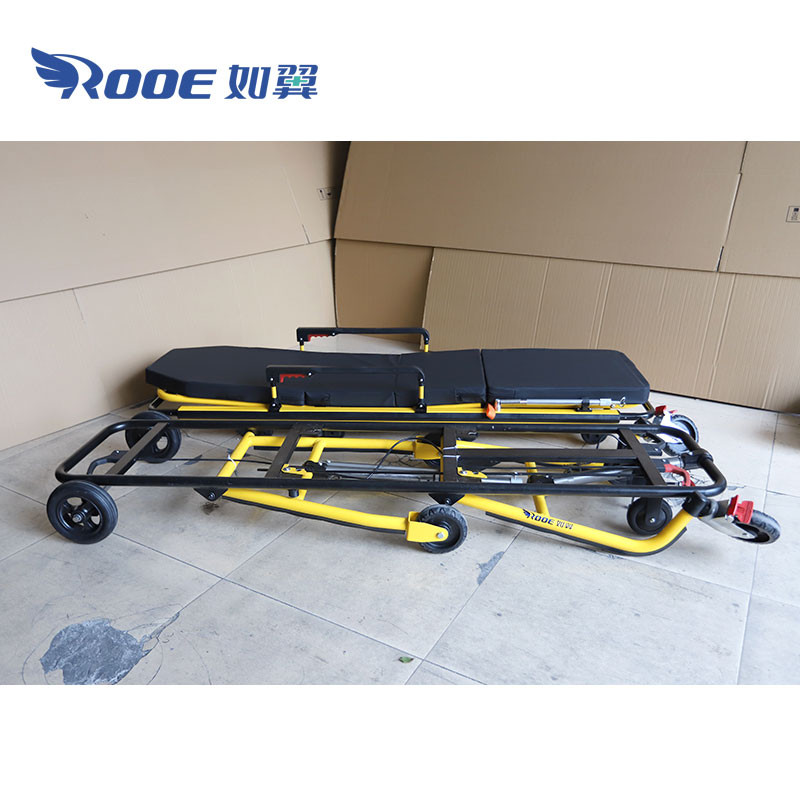

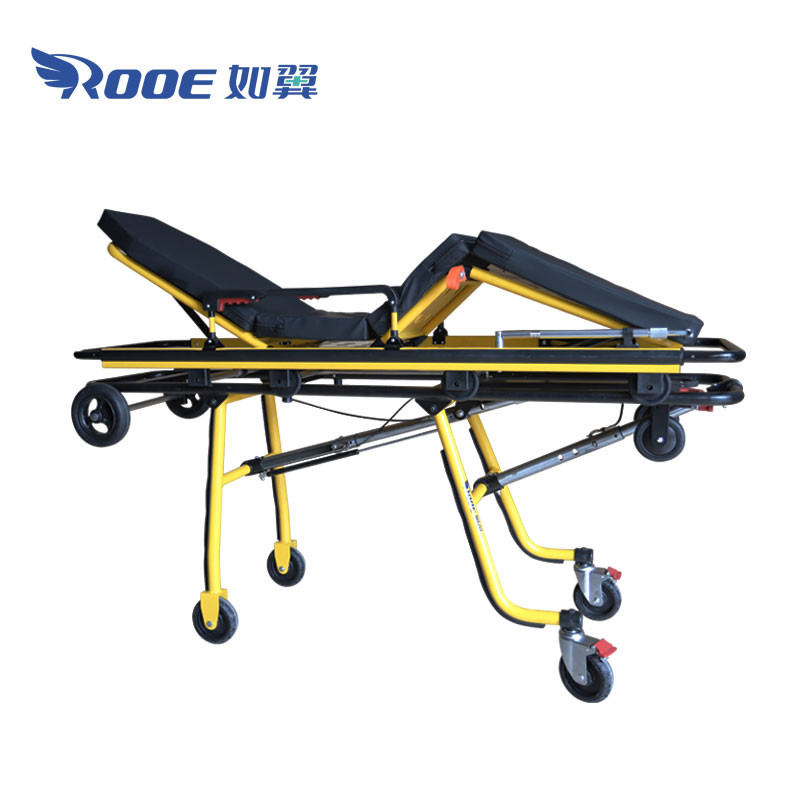

Made of high-strength aluminum alloy thick-walled tube. The bed surface features foam padding and an adjustable backrest for the comfort of the casualty. One person is enough to transport the patient (with this stretcher) to the ambulance. The mechanical folding legs are controlled by handles on both ends of the stretcher. The stretcher can also be locked by means of the fixing device when in the ambulance. This stretcher is characterized by its light weight, durability, safety in use and easy sterilization.
Two Layer Ambulance Collapsible Stretcher For Patient Transport Features：

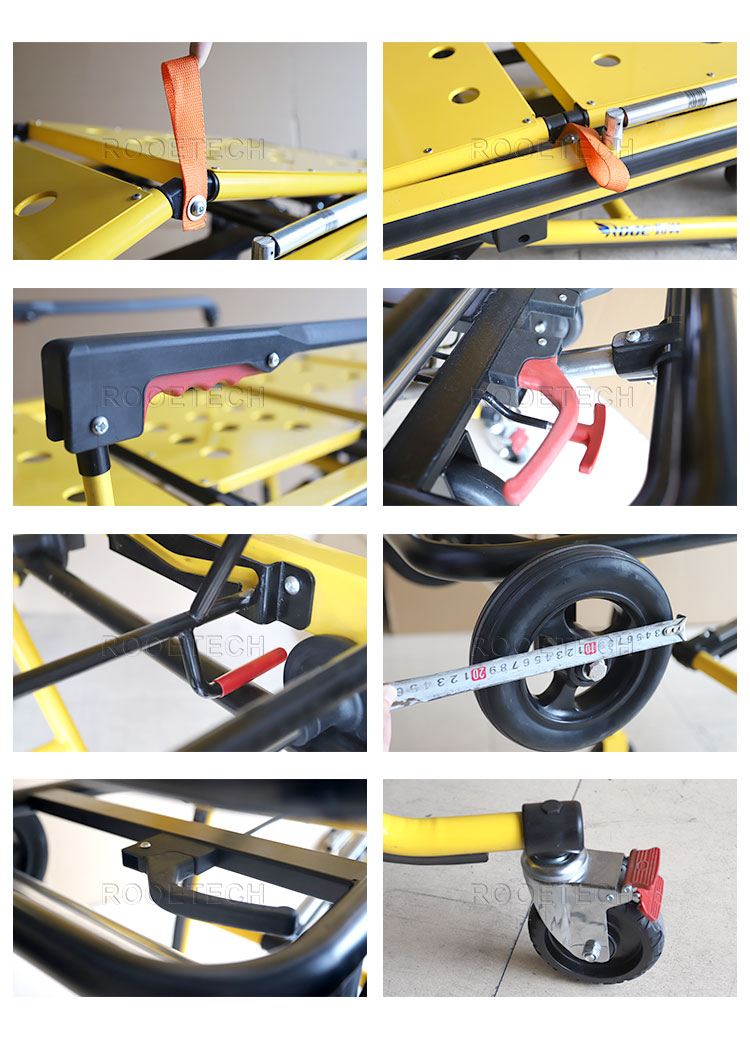

1.Flexible mechanical leg control: The stretcher's mechanical legs are controlled by handles on both sides and can adapt to different height requirements, making patient transport smoother in various situations. Whether it is a narrow space or a multi-storey building, this stretcher can easily cope.
2.Robust all-metal frame: An all-metal frame construction with foam bedding provides superior support and comfort for heavy duty patients. Regardless of the patient's size, the stretcher ensures optimal protection during transport.
3.Adjustable backrest with air spring control: The stretcher is equipped with an adjustable backrest controlled by air springs, allowing the injured person to adjust to the most comfortable position according to demand, greatly improving the patient's comfort experience, especially during long distance transfers.
4.Trendelenburg foot adjustment: The stretcher foot can be adjusted to the Trendelenburg position (head low and foot high), which is crucial for the patient in certain medical situations, such as the need to improve blood circulation or alleviate certain symptoms.
5.Single-handle operation design: One side is designed with a control handle, which can easily separate the main stretcher from the cart. After the stretcher is pushed into the ambulance through the chute, it can be quickly locked to ensure safety and stability during the transfer process.
6.Ambulance fixture compatibility: The stretcher is designed to be perfectly integrated with the fixture on the ambulance, and once pushed into the ambulance, it can be safely locked by the fixture, ensuring stability and safety during transport.
7.High performance wheels: The stretcher is equipped with four 150 mm diameter rotating wheels, two of which have a braking system on the front wheels, providing excellent steering and braking performance. In addition, the large 200mm wheels on the ambulance further enhance the smoothness and safety of transportation.
8.Bottom side rail protection: The bottom of the stretcher is equipped with side rails to provide additional protection during the transfer of the patient, preventing the patient from accidentally slipping and ensuring the safety of the operation.
Model | High position | Low position | Maximum Angle of the Back | Maximum Angle of the Knee | Load Bearing | N.W. | G.W. | Packing Size（1pc/CTN） |
EA-3E2 | 195x57x91cm | 195x57x28cm | 75° | 15° | 180kg | 40kg | 45kg | 207×62×38cm |
