This easy carried and comfortable hospital manual ambulance transport stretcher are primarily used in acute out of hospital care situations by emergency medical services (EMS), military and search and rescue personnel.

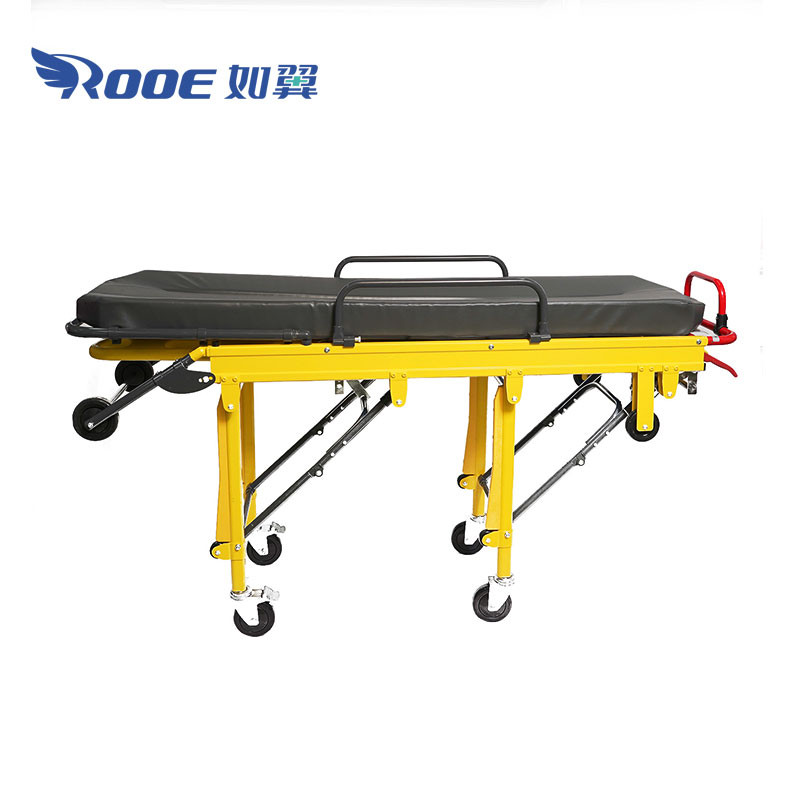

Medical Patient Ambulance Stretcher Foldable Stretcher With Wheels Description:
The patient ambulance stretcher is made of high quality aluminum alloy with foam cushions to make the patient feel comfortable while lying down. foldable stretcher with wheels has a flexible structure, leg folding mechanical structure, which can easily realize a variety of posture changes. The design of stretcher trolley with side rails increases the safety of patient transportation. The ambulance stretcher can be detached and controlled by the left and right handles, requiring only one ambulance attendant to push the patient into the ambulance. The fixed bracket is attached to the ambulance and the stretcher can be locked after boarding. Through the separation device, the stretcher can be separated from the base, and the patient can be quickly rescued.
Medical Patient Ambulance Stretcher Foldable Stretcher With Wheels Features:
1. High-strength aluminum alloy structure: Stretcher made of high-strength aluminum alloy, light and durable, suitable for ambulances, hospitals and emergency centers and other occasions.
2. Adjustable design: The backrest of the stretcher can be adjusted through the air spring, the Angle range is between 0 and 65 degrees, and the leg height can be adjusted to 30 degrees to meet the needs of different positions of the patient.
3. Flexible folding function: The mechanical leg design is flexible, controlled by the handles on both sides, with safety rods to ensure that the front and back legs can be firmly folded during loading to avoid collapse when standing.
4. Safety side railing: The stretcher is equipped with side railing to protect the patient during the transfer process, and the railing can be swung downward to facilitate the patient to get on and off the stretcher.

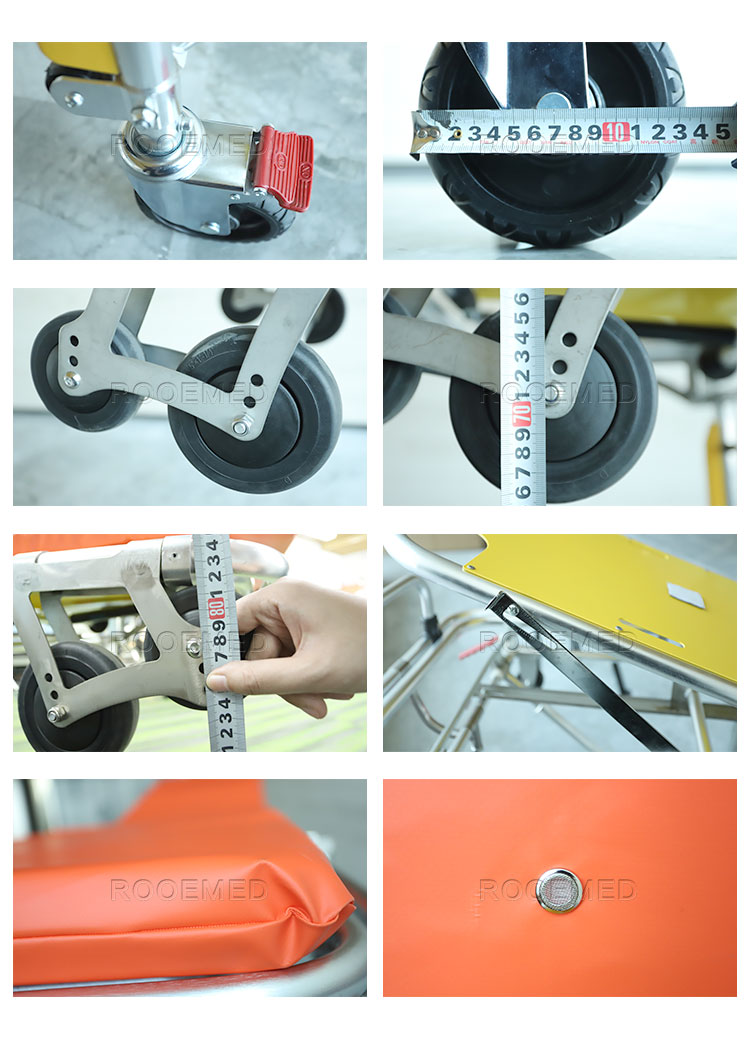

5. Stability wheels: equipped with φ12.5cm wide rubber casters, two of which have brake systems to ensure stability and safety during transfer.
6. Single operation: The design is simple, only one ambulance personnel can easily carry the stretcher onto the ambulance, reducing manpower requirements.

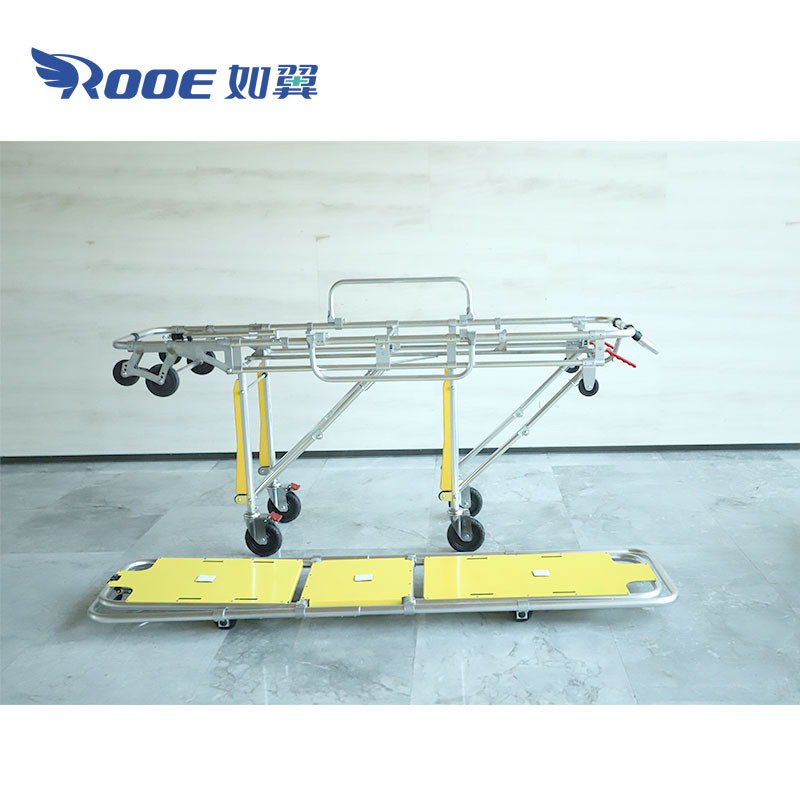

7. Separable design: The stretcher has a separable function, and the main stretcher can be disassembled from the base to achieve rapid patient rescue.
8. Locking system: When the stretcher is pushed into the ambulance, it can be locked through the fixed device to ensure the safety and stability of the transportation process.
9. Multi-height adaptation: the stretcher is equipped with two assembled loading wheels, which can adapt to the rescue board of different heights. The minimum length of the board is 65.5cm and the maximum is 77.5cm.
10. Simple locking/unlocking system: The locking/unlocking system between the stretcher and the trolley is easy to operate, which is convenient to quickly handle the transfer and fixation of the patient in an emergency.
Patient Ambulance Stretcher Foldable Stretcher With Wheels Accessories:
1.Waterproof seamless welding PVC mattress(5cm thickness foam).
2.3pcs belts for chest, hip and knee.
3.Fixing device.
4.Optional:IV pole ; Pillow ; Oxygen holder.
| Model | High position | Low position | Maximum Angle of the Back | Load Bearing | N.W. | G.W. | Packing Size（1pc/CTN） |
| EA-3C① | 195x55x85cm | 195x55x25cm | 65° | 180kg | 41kg | 48kg | 204×62×30cm |
| EA-3C② | 195x55x85cm | 195x55x25cm | 65° | 180kg | 37kg | 45kg | 204×62×30cm |
| EA-3C③ | 195x55x85cm | 195x55x25cm | 65° | 180kg | 43kg | 50kg | 204×62×30cm |
